18kW Rack-mounted Load Bank

Rata's 18kW Rack-mounted Load Bank has a reliability rate unrivaled on the market, which is specifically designed to support airflow testing and cooling system verification within the facility.

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

Product Introduction

Rata's 18kW Rack-mounted Load Bank has a reliability rate unrivaled on the market, which is specifically designed to support airflow testing and cooling system verification within the facility.

Key Features

Adjustable Airflow Levels

30%, 60%, 90%, and 100%, with a control accuracy of within ±2%.

High-Performance Cooling Fans

Customized DC 26V fans, with 10 units providing a total airflow of 5,570 m³/h.

Advanced Protection

Equipped with an 80°C over-temperature alarm and automatic section cut-off at 90°C to ensure safe and reliable operation.

Switching System

Load step control realized through Schneider circuit breakers, ensuring durability and precise operation.

Enclosure drawings (mm)

2 拷贝 (3)

WPS图片(1) 拷贝 (2)

More Product Details

Our 18kW rack-mounted load bank provides accurate loading solutions for different UPS & data center power applications, which are designed to be accurate, reliable, and easy to use for data center or test personnel.

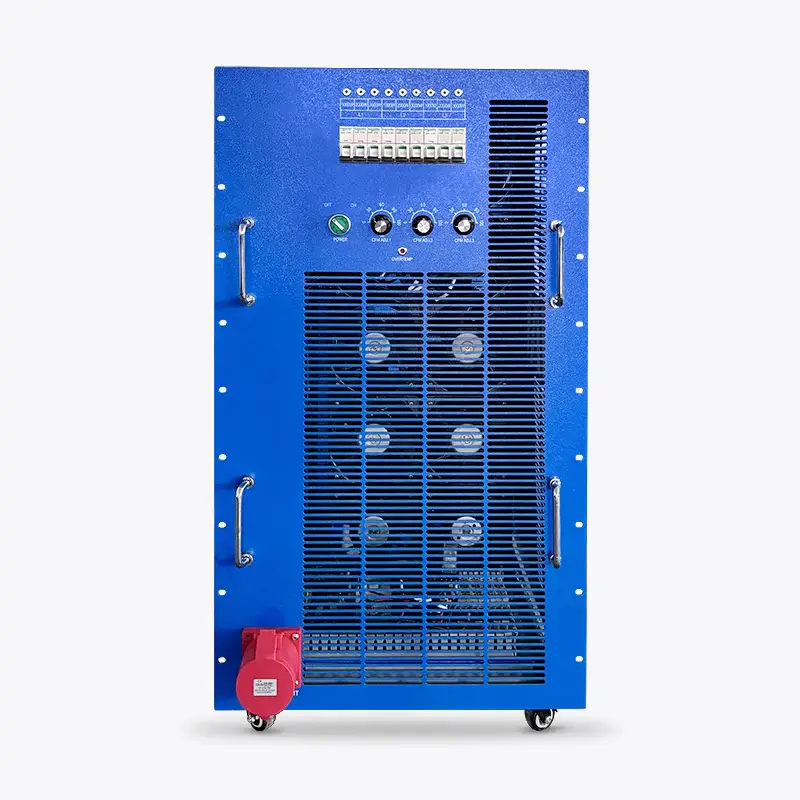

Front View

Side View

Front View

Side View

Product Specifications

Model No.	RTLB18-RM	Protection	Thermal emergency cut out; 80℃ red light alert; 90℃ trip off
Country of origin	China	Thermal protection	Contactor
Max capacity	18kW	Cooling method	Air forced cooling
Rated testing voltage	400Vac	Fans Nos.	10pcs 26Vdc
Frequency	50/60Hz.	Airflow volume	5508≥m³/ h
Phases	3	Airflow level	0, 30% , 60% , 90% , 100% ( Airflow tolerance: ±2% )
Load step	L1: 1+2+3kW; L2: 1+2+3kW; L3: 1+2+3kW	Airflow direction	Front air inlet , rear air outlet
Resistors type	Finned heating resistive tube	Rated maximum ambient temp. operation	+50°C / +122°F
Voltage Tolerance (Short Term Operation)	+5%	Rated minimum ambient temp. operation	-20°C / -4°F
Load Element Tolerance	± 3%	Altitude rating	<500m [m.a.s.l.]
Insulation Test	500Vac	Control chamber IP rating	IP 23
Load Connections	TYP325 ( 32A Five-pin plug connector)	Portability	5 Foldable handle clips

Enclosure dimensions

483

Width(mm)

670

Depth(mm)

905

Height(mm)

Weight(KG)

Load bank control system

Push buttons

Manual control

LoadMaster Remote™

Push buttons

Accessories

Cables

1pcs pure copper 5-core 6-square rubber cable 5Meters
