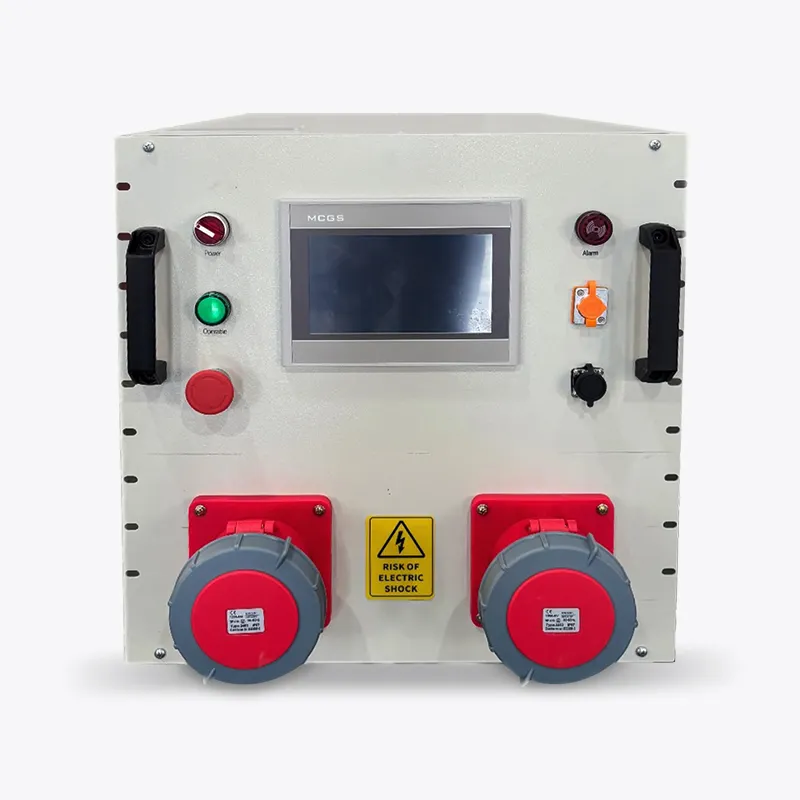

Indoor 60kw Liquid Cooled Load Bank

Engineered for optimal efficiency, millimetric precision, and industrial-grade durability, our Indoor 60kW Liquid Cooled Load Bank integrates cutting-edge liquid cooled technology to deliver unparalleled load testing performance. Designed to meet the rigorous demands of data centers, renewable energy installations, and heavy-duty industrial power infrastructure, this solution guarantees consistent reliability and lab-caliber testing accuracy—solidifying its status as the benchmark choice for mission-critical load testing scenarios where operational excellence is non-negotiable.

Schneider Eletric Authorise:

Prisma E Standardized low-voltage sub switchboard Technology and Business Partner

Warranty time:

3 years

Delivery time:

4 weeks

ISO Certification:

ISO9001/ISO14001

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

Product Introduction

Engineered for optimal efficiency, millimetric precision, and industrial-grade durability, our Indoor 60kW Liquid Cooling Load Bank integrates cutting-edge liquid cooling technology to deliver unparalleled load testing performance.

60 KW

Power

415Vac

Testing voltage

487*722*454mm

Dimensonal type

90KG

Weight

50HZ,3P

Frequency&phase

10U

Height

Quick connector C19

Mains connection

Product Specifications

Country of origin	China	Rated testing voltage	415Vac
Control voltage	415Vac	Frequency& phase	50Hz, 3P
Model No.	RTLALB60M	Active power(kW)	60kW
Load steps(kW)	LA:1+2+2+5+10	Liquid resistor module enclosure material	304 stainless steel
	LB:1+2+2+5+10
	LC:1+2+2+5+10
Resistor withstand insulation test voltage	DC2500V/1min	Water flow	1-5 m3/H
Withstand water pressure	1Pa/kg	Inlet and outlet water interface size	DN25
Height	10U	Width*Depth	19inch*530mm
Estimated weight	About 90kg	Enclosure material	Cold rolled stainless plate
Load connections	Quick connector C19	Protection buttons	Emergency stop
Control chamber IP rating	IP 23 Indoor	Enclosure color	RAL 7035 / Orange/blue/red (customizable)
Portability	Carrying handle	Duty cycle	Continuous
Main parts brands	MCB: Schneider	Manual control (PLC remote control available)	Miniature Circuit Breaker /Load step indicators
Certificates
ISO9001:2015,ISO14001:2015,ISO45001:2018,CE

FAQ

What are the suitable application scenarios for a 60kW liquid-cooled load bank?

This model is ideal for small to medium power applications such as UPS testing, energy storage inverter testing, small generators, laboratory testing, and data center power distribution verification, and is especially suitable for indoor or space-constrained environments.

How much of a noise advantage does a liquid-cooled load bank have compared to an air-cooled one?

Liquid-cooled load banks do not require high-power fans and have almost no strong airflow noise during operation, making them ideal for noise-sensitive environments such as offices, laboratories, and data center server rooms. This is a point of great interest in the current overseas market.

What are the requirements for the cooling system? Is it complex to maintain?

The equipment is equipped with temperature and flow sensors to monitor the cooling status in real time; the liquid circuit adopts stainless steel pipes and flange interfaces (DN25), which is simple and reliable in structure, has low daily maintenance costs, and is suitable for long-term use.

How will the equipment react if there is abnormal cooling or excessive temperature?

The system features minimum flow protection, overcurrent protection, fuse protection, and outlet temperature protection; once an anomaly is detected, the load will be automatically disconnected and an alarm will be triggered, effectively preventing equipment damage.

How can the reliability of a liquid-cooled load cell be guaranteed?

The core electrical components use international brands such as Siemens PLC and Schneider contactors; the liquid-cooled resistors have a liquid-heated tube structure, high load accuracy (±3%), strong stability, and are suitable for long-term operation.

Does it support clear data monitoring and display?

The equipment is equipped with an HMI touchscreen, which can display current, voltage, power, inlet and outlet temperatures, temperature difference, and flow rate in real time, allowing users to intuitively grasp the test status.

Is this type of liquid-cooled load bank a future market trend?

Yes. With the increase in power density in data centers, the popularization of energy storage systems, and the development of indoor and modular testing, liquid-cooled load banks are becoming an important trend in the mid-to-high-end market, especially with significant demand growth in Europe, America, and the Middle East.
