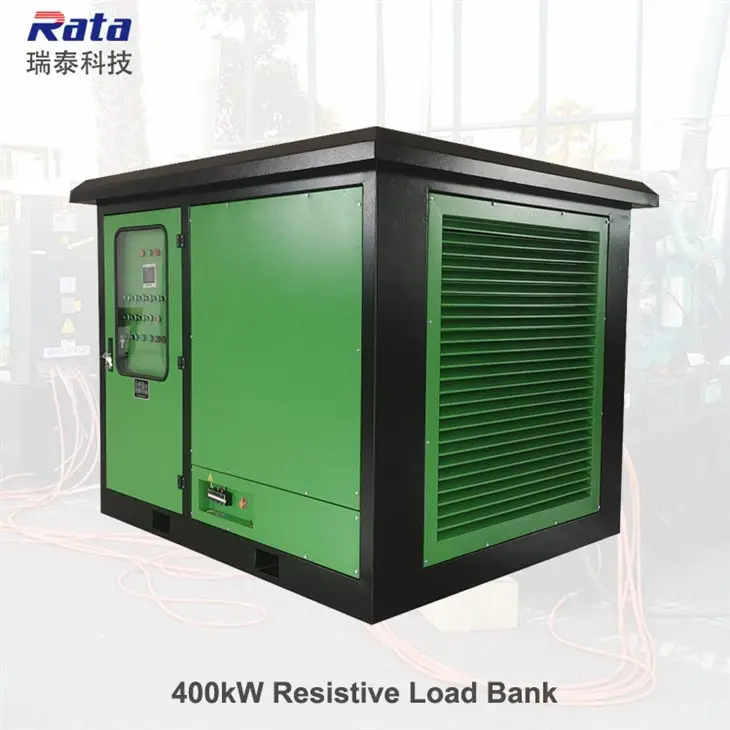

400kW load bank
R400kW/400V/50Hz load bank is a diesel generator load bank customized by rata for customers in March 2023. It is a low-voltage pure resistive load bank, which is used for on-board load bank test. The power factor is 1.0, the step setting is 1kW, 2*2kW, 5kW,2*10kW,20kW,50KW,3*100kW, and the weight is about 550Kg. Horizontal air discharge. Its control panel includes phase sequence indicator,electrical instrument and step switch indicator, It can operate indication,fan switch,high temperature alarm,low air volume alarm,load switch and emergency stop switch.
Rata is delicately crafted by our adept professionals by using modern technology.
Products Description
R400kW/400V/50Hz load bank is a diesel generator load bank customized by rata for customers in March 2023. It is a low-voltage pure resistive load bank, which is used for on-board load bank test. The power factor is 1.0, the step setting is 1kW, 2*2kW, 5kW,2*10kW,20kW,50KW,3*100kW, and the weight is about 550Kg. Horizontal air discharge. Its control panel includes phase sequence indicator,electrical instrument and step switch indicator, It can operate indication,fan switch,high temperature alarm,low air volume alarm,load switch and emergency stop switch.
Main Data Sheet
| Rated power capacity | 400KW,resistive only |
| Rated voltage | 400VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal |
| Design | Outdoor design with canopy,IP54 |
| Control mode | Local panel switching control +remote PC control,Siemens PLC system,RJ45 communication interface,load data save and pringting |
| Load steps | 1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW+100kW |
| Resistor | 8020 Ni-Cr alloy finned resistors |
| Cooling | Forced air cooling,horizontal air discharge |
| Movement | Forklift holes |
| Size | 1150*1400*1600mm |
| Weight | 550kgs |
| Packing | Wooden case and pallet |
Company profile
DEYANG RATA TECHNOLOGY CO.,LTD
7*24 hourse service
11
years
We have been working in the industry since 2013
50
EMPLOYEES
Rata has professional techinical team and skilled workers
18
PATENTS
We have obtained 18 patents for load bank
Certificates
We obtained CE,ISO9001:2015,ISO14001:2015 and ISO45001:2018 certificates.
Rata is made employing advanced technology and sophisticated crafts.
Data Sheet
|
Product name |
400kW resistive load bank; |
| Model number | RT400kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×3; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1150×1400×1600mm |
| Weight | 550Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
