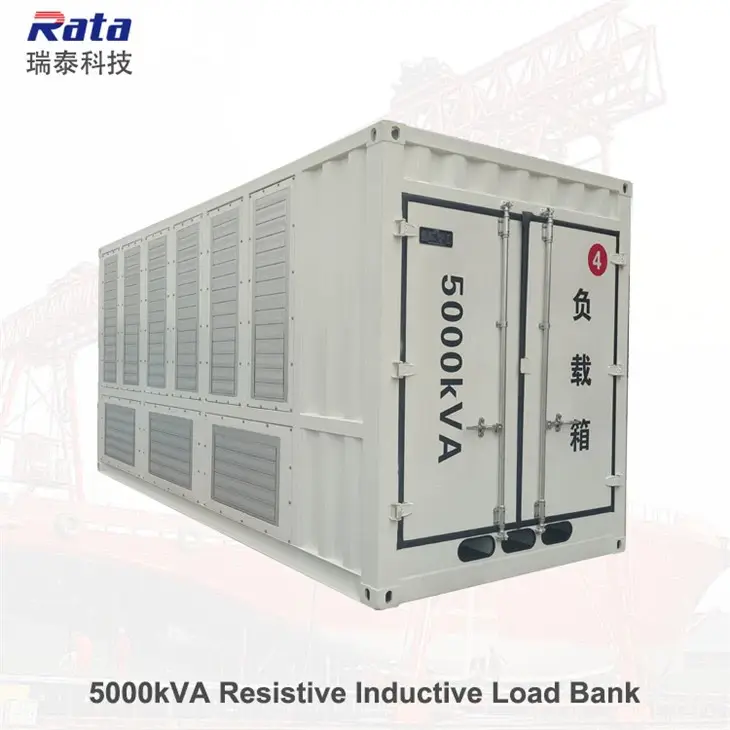

4000kW/3000kvar Resistive Inductive Load Bank
Rata 4000kW/3000kvar resistive inductive load bank used for ship generator load testing. Power factor 0.8~1.Local panel switching control mode and remote PC control mode supplied for client operation choice.Horizontal air discharge design,quick connector for control power cables connection,it is water proof.
Before delivery, the product must go through strict inspection to ensure high quality in performance, availability and other aspects.
Products Description
Rata 5 units 5000kVA/4000kW/3000kvar/400V/690V resistive inductive designed for ship generator load testing. Designed as horizontal air discharge with Rata produced easy install and disassemble resistors and local panel switching control mode and remote PC control mode with Rata supplied operation software for client's choice.
Reference Pictures
Main Data Sheet
| Rated Power Capacity | 5000kVA/4000kW/3000kvar |
|
Power factor |
0.8 |
| Rated voltage | 400V/690VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with quick connector |
| Cooling | Horizontal air discharge with axial fans |
| Resistor | Ni-Cr alloy resistor |
| Inductor | 3 phase inductor |
| IP rating | IP54 |
| Size | 6000×2438×2900mm |
| Weight | 18000kgs |
Perfect quality is our commitment to every customer.
Data Sheet
|
Product name |
4000kW/3000kvar Resistive Inductive Load Bank; |
| Model number | RT5000kVALB; |
| Design | Container type design |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+200kW×19; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
| Inductive load steps | 1kvar resolution;1kvar+2kvar+2kvar+5kvar+10kvar+10kvar+20kvar+50kvar+100kvar+200kW×14; |
| Inductor | 3 phase inductor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Lift lugs on the top of the load bank; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 6000mm*2530mm*2900mm (L*W*H) |
| Weight | 18000Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
