12kW Rack Mounted Load Banks
The 12kW rack mounted load banks can fully simulate the power usage, heat dissipation and other air flow changes of the server.
Excellent craftsmanship: Rata is crafted with excellent craftsmanship which is a result of talents and skills. Its superior craftsmanship makes it high quality.
why choose us
why choose our products
After 11 years of development, our products have been continuously developed and upgraded through cooperation with customers and understanding of market demand.
For example, the design of multiple versions of our rack load bank is based on market demand. The functions of our products are also constantly being upgraded. For example, the functions of our rack load bank now include high temperature alarm, low air volume alarm, adjustable fan speed, air volume display, instrument display, as well as local and remote operation.
At the same time, we also provide customized product designs, colors, functions, and trademarks to meet the needs of different customers.

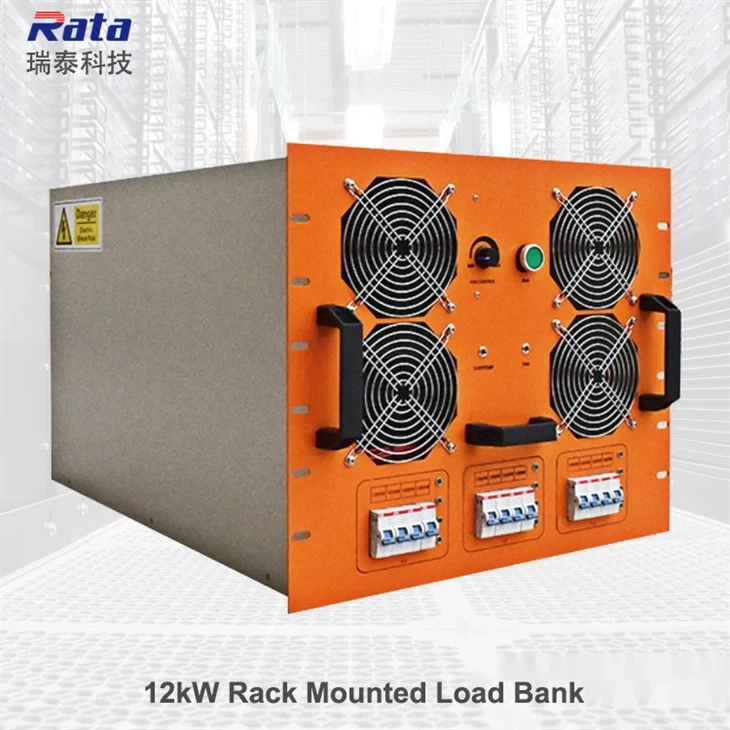

12kW Rack Mounted Load Bank
12kW rack mounted load bank generlly used for data center. MCB control,fan speed adjustable,master power switch,high temperature indicator,fan indicator,horizontal air discharge.
Racck mounted load Bank Application
Rack mounted load bank used for IST commissioning in data center & data room. Testing both electrical network (UPS, Diesel generator, etc.) & air conditioning (free cooling, etc.), the rack-mounted load bank is simulating exact electrical & air conditioning impact of servers in the rack cabinet.
understands that trust and quality matter.
Data Sheet
|
Product name |
12kW rack mounted load bank |
|
Rated voltage |
AC230V,1 phase 2 wire |
|
Load steps |
1000W×12 |
|
Load accuracy (per gear) |
±2% |
|
Connection mode |
Six input,independent control power input |
|
Insulation class |
F |
| IP rating | IP23 |
|
Working mode |
Continuous work |
|
Cooling mode |
Forced air cooling |
|
Control mode |
MCB control |
|
Protection function |
High temperature |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
