DC Resistive Load Bank 28.5V/800A Power Supply Dummy Load Test

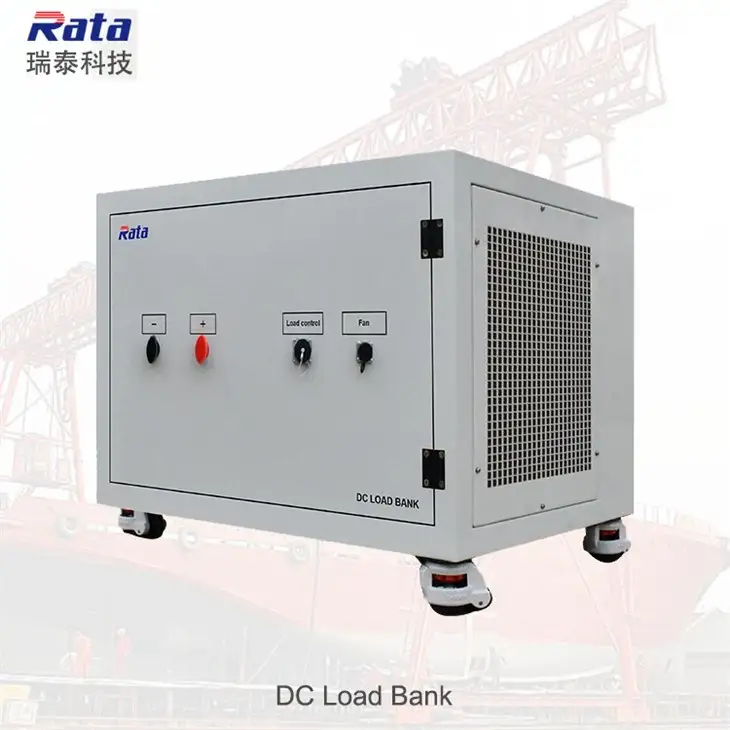

DC resistive load bank is a power supply dummy load test equipment specially developed and produced by our company for airlines. It is also composed of pure resistive load with power factor of 1. The load bank voltage shown in the picture is 28.5V and the maximum current is 800A.
To meet the requirements of our customers all over the world, we have equipped Rata with advanced production lines and experienced technicians.
Products Overview
DC resistive load bank is a power supply dummy load test equipment specially developed and produced by our company for airlines. It is also composed of pure resistive load with power factor of 1. The load bank voltage shown in the picture is 28.5V and the maximum current is 800A. Customers can provide us with requirements to customize more dc resistive load banks with different specifications.
Pictures
Application
parameter
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
dc resistive load bank |
|
Specifications |
DC28.5V/800A |
|
Load step |
According to customer needs |
|
Load accuracy |
Each gear:±3% |
|
Load accuracy |
The whole machine is ±5% |
|
Display accuracy |
Grade 0.2 |
|
CONTROL POWER |
External AC 220V/50Hz |
|
Connection mode |
Load first DC power input-copper bar(DC positive and DC negative) |
| Load second DC power input-copper bar(DC positive and DC negative) | |
| Control power input - Terminals(L+N) | |
|
Insulation class |
F |
|
Protection level |
IP23 |
|
Cooling mode |
Forced air cooling,side air inlet,side air outlet and upper air outlet |
|
Noise |
3 meters away from the equipment, less than or equal to 80 dB |
|
Transport |
Lifting, the top of the chassis with load-bearing rings, bottom with casters |
|
Control mode |
Local intelligent control |
|
Function |
I,V,kW real time display, electrical performance index detection, system electrical parameters monitoring |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
More Specification
|
Note: all parameters are for reference only and can be customized |
|||
|
Electric current(A) |
Voltage(V) |
Size(mm,L*W*H) |
Weight(Kg) |
|
100 |
DC12-DC1000 |
380*680*1020 |
120 |
|
200 |
DC12-DC1000 |
600*680*1080 |
250 |
|
500 |
DC12-DC1000 |
700*1000*1500 |
400 |
|
1000 |
DC12-DC1000 |
800*1000*2000 |
500 |
|
1500 |
DC12-DC1000 |
1000*1000*2200 |
650 |
|
2000 |
DC12-DC1000 |
1000*1500*2200 |
800 |
Design Drawing
Company profile
Rata was established in 2013 and located at Luojiang High and New Technology Zone, Deyang City, China. The factory is nearby the high way and national road, with convenient shipment. It is about 5 hours from our factory to the nearest port.
There are professional technicians and skilled workers. During past 10 years, we are focus on development and production of kinds of load bank. By far, we have obtained 18 patents of load bank, ISO 9001/14001/45001/CE certificates and 6 computer software copyrights.
We are not only focus on products quality, but also on service. By far we obtained 5 stars contract performance capacity certificate and 7 stars after sales service certificate.
Rata Technology mainly produce and sale resistive load bank, resistive reactive load bank, rack mounted load bank, DC load bank, electrical load bank and battery discharger.
Our load bank have been exported to South Korea,India,Kazakhstan,Saudi Arabia,France,Rwanda,New Zealand,Peru,Brazil,America and other regions and have good reputation.
You are welcome to visit our factory and look forward to cooperate with you.
