130V-1000A DC Resistive Load Bank
130V-1000A DC resistive load bank was designed and produced based on the client's requirement.This load bank support local touch screen control and remote PC control by RJ45 communication interface.
Every production stage is highly valued to achieve high quality of this product.

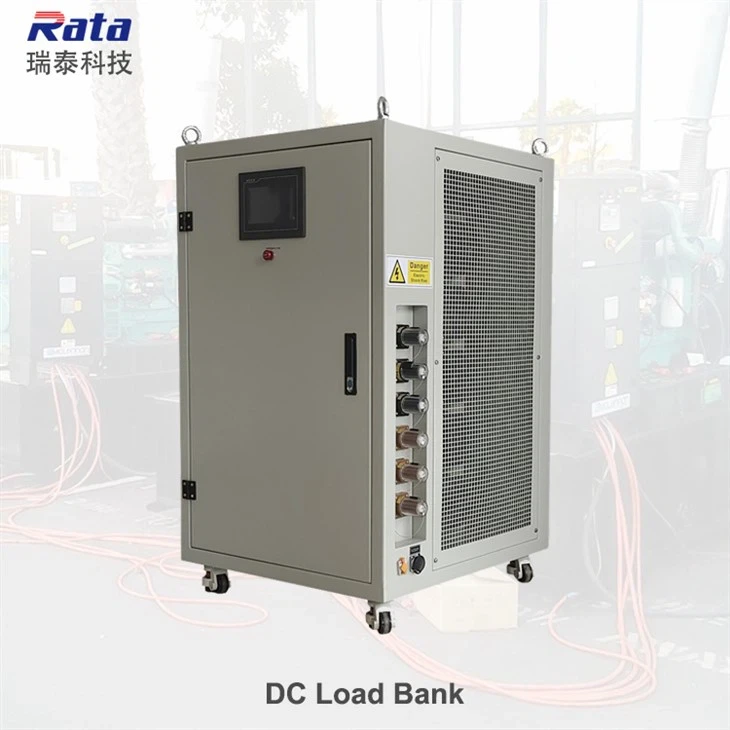

130VDC,1010A DC resistive load bank was designed based on client's reuqirement. The load bank support local touch screen control. There is emergency stop switch located at the local panel. Two pairs M12 connectors for load power cables connection and quick connector for control power connection. The load bank equipped with lift lugs and universal wheels for movement.
Data Sheet
| Rated voltage | 130VDC,connected with M12 connector |
| Rated current | 1010A |
| Control voltage | 230Vac,1 phase 2 wire,connected with quick connector |
| Load steps | 1A+2A+2A+5A+10A+15A+25A+50A+100A+200A+300A+300A |
| Control | Touch screen |
| Resistors | 8020 Ni-Cr alloy finned resistors |
| Cooling | Forced air cooling,horizontal air discharge |
| IP rating | IP23 |
| Emergency stop | Yes |
| Color | RAL7035(industrial grey) |
| Movement | Lift lugs + universal wheels |
| Size | 720*935*1230mm |
| Weight | 350kgs |
Packing and Delivery
DC load bank was packed with wooden case and pallet and exported from Shanghai port,China.
why choose us
why choose our products
Rata accumulated rich experience. of load bank design and production during past 11 years.
Rata supply OEM/ODM service for the load bank. All the products can be designed and produced based on client's requirement.
Main parts for the load bank will be the first level brands as following our partner shows.
Professional technical team and fast response service can save clients's time and improve work efficiency.
Short production and fast delivery time.
Professional export team will arrange the export things well.
Our Partners
Our load bank main parts are the first level brand in the internal market and cooperated well during past 11 years. Good quality parts can make sure the load bank has good quality and long time service life base on the regular maintenance and normal operation.
The highest international quality standards are applied in its production.
Data Sheet
| Rated voltage | 130VDC,connected with M12 connector |
| Rated current | 1010A |
| Control voltage | 230Vac,1 phase 2 wire,connected with quick connector |
| Load steps | 1A+2A+2A+5A+10A+15A+25A+50A+100A+200A+300A+300A |
| Control | Touch screen and remote PC control |
| Resistors | 8020 Ni-Cr alloy finned resistors |
| Cooling | Forced air cooling,horizontal air discharge |
| IP rating | IP23 |
| Emergency stop | Yes |
| Color | RAL7035(industrial grey) |
| Movement | Lift lugs + universal wheels |
| Size | 720*935*1230mm |
| Weight | 350kgs |
