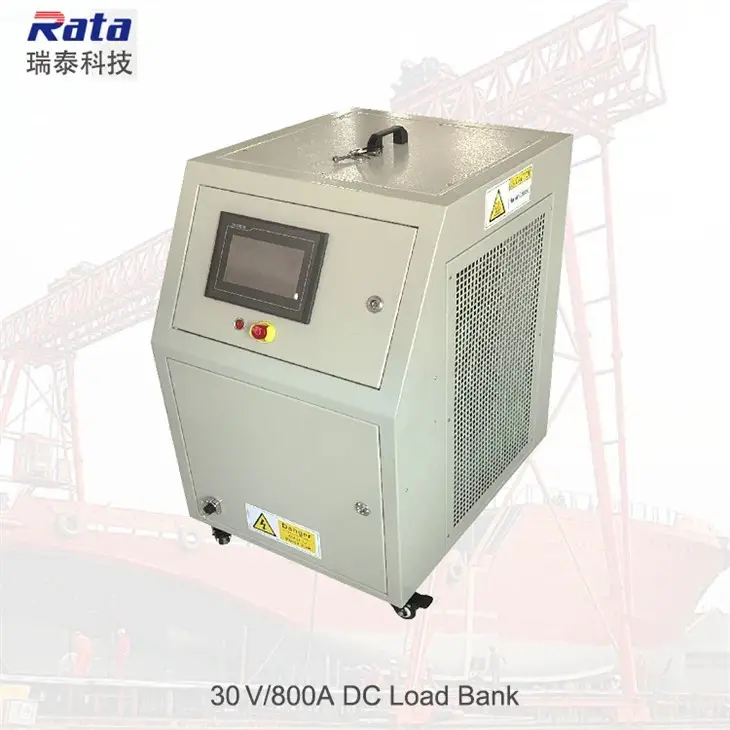

Portable DC Load Bank
Rata 30V/800A portable dc load bank has a measurement calibration interface, through which the correctness of the loading amount can be verified.
has many trustworthy business partners who have been speaking highly of the Rata and its service.
Products Description
DC30V/800A resistive load bank was designed as tocuh screen control mode.There are power indicator and emergency stop installed on the local panel,power cables connected with copper bar and quick connector. Handle and unibersal wheels design make the product easy to move.
Main Data Sheet
|
Model No. |
RT30V-800ALB |
|
Load type |
Resistive |
|
Voltage |
DC30V |
|
Current |
800A |
|
Control mode |
Touch screen |
|
Protection |
IP23 |
|
Control voltage |
Power source: 1 phase 2 wire,AC230V |
|
Load accuracy |
±3% |
|
3Phase Balance |
Unbalance≤3% |
|
Insulation |
F |
| Resistor | Ni-Cr alloy finned resistor |
|
Load power source connection |
Copper bar |
|
Time rating |
Continuous design |
|
Load adjust |
Steps: 50A+50A+100A×7 |
|
Cooling system |
Forced air cooled,horizontal air inlet/outlet |
|
Load test function |
Real time display of current, voltage, frequency, power, power factor, etc. |
|
Load protection |
Low air volume, high temperature, over pressure, over current, short circuit, emergency stop, etc. |
|
Cabinet color |
RAL7035(industrial grey) |
|
Transportation |
Lifting hole + universal wheels |
|
Dimension(L*W*H) |
770mm*620mm*1040mm |
|
Weight |
105kg |
|
Packing |
Wooden case |
This product is basically known with a wide range of applications.
Data Sheet
|
Load Bank Data Sheet |
|
|
Model No. |
RT30V-800ALB |
|
Load type |
Resistive |
|
Voltage |
DC30V |
|
Current |
800A |
|
Control mode |
Touch screenTouch |
|
Protection |
IP23 |
|
Control voltage |
Power source: 1 phase 2 wire,AC230V |
|
Load accuracy |
±3% |
|
3Phase Balance |
Unbalance≤3% |
|
Insulation |
F |
| Resistor | Ni-Cr alloy finned resistor |
|
Load power source connection |
Nickle coated brass |
|
Time rating |
Continuous design |
|
Load adjust |
Steps: 50A+50A+100A×7 |
|
Cooling system |
Forced air cooled,horizontal air inlet/outlet |
|
Load test function |
Real time display of current, voltage, frequency, power, power factor, etc. |
|
Load protection |
Low air volume, high temperature, over pressure, over current, short circuit, emergency stop, etc. |
|
Cabinet color |
RAL7035(industrial grey) |
|
Transportation |
Lifting hole + universal wheels |
|
Dimension(L*W*H) |
770mm*620mm*1040mm |
|
Weight |
105kg |
|
Packing |
Wooden case |
|
Work Environment |
|
|
Temperature |
-20ºC to 50ºC |
|
Humidity |
up to 100% |
|
Altitude |
up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
