AC Resistive Load

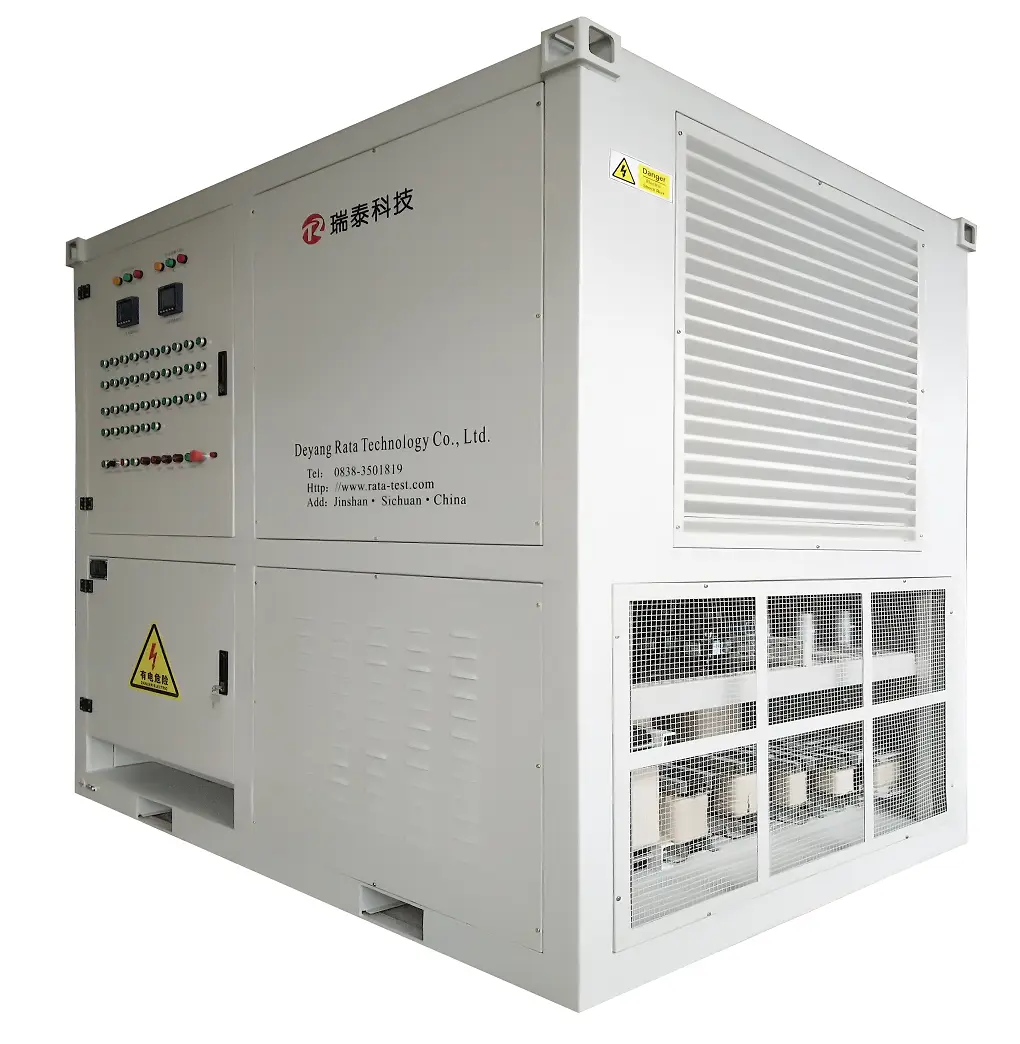

Rata 500kW/375kvar AC 400V resistive inductive load bank mainly used for marine generator,grid station,island testing for power station and other application.
The testing of the product is strictly conducted.
why choose us
Rata has 11 years experience of load bank production,fast delivery,professional service and ISO9001/CE certificates.
After Sales Service
Rata supply 7×24 hours after sales service,in order to make sure your after-sales problems can be responded to quickly.
Certificates
We obtained CE, ISO9001, ISO14001, ISO45001 and SGS quality certificate and owned independent export rights.
OEM,ODM
We can accept OEM and ODM service, custom your own design, logo and color.
Partner
ABB,Schneider, Omron,Siemens Phoenix contact, Delixi
Products Description
Rata 500kW/375kvar AC400V resistive inductive load bank designed as indoor use,local and remote PC control,support load data save and printing.
It mainly can be used for:
1. Electrical equipment testing: widely used for factory inspection, acceptance testing, and periodic maintenance testing of various types of electrical equipment such as generators, transformers, and switchgear to verify their performance and reliability.
2. Power system debugging: conduct load debugging and performance evaluation on power systems such as diesel generator sets and gas generator sets.
3. Ship power system: ensure the stable operation and normal function of the ship's power system under different load conditions.
4. Data Center: used to test the carrying capacity and emergency response capability of the backup power system in the data center.
5. Industrial production: In some industrial fields, simulate actual load conditions to verify the performance of relevant power facilities.
6. Research experiments: provide specific resistive load environments for electrical research projects and experiments.
7. New energy integration testing: testing the relevant performance and compatibility of new energy integration into the power grid.
Main Data Sheet
|
Product name |
500kW/375kvar Resistive Inductive Load Bank; |
| Model number | RT625kVALB; |
| Design | Indoor design |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW+100kW+100kW; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
| Inductive load steps | 1kvar resolution;1kvar+2kvar+2kvar+5kvar+5kvar+10kvar+10kvar+20kvar+20kvar+50kvar+50kvar+100kvar+100kvar; |
| Inductor | 3 phase inductor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Lift lugs and forklift holes |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 2100mm*1530mm*1955mm (L*W*H) |
| Weight | 1850Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
The product is tested under the vigilance of our proficient professionals who clearly know quality standards laid down by the industry.
