Marine 500kW/375kvar Resistive Inductive Load Bank

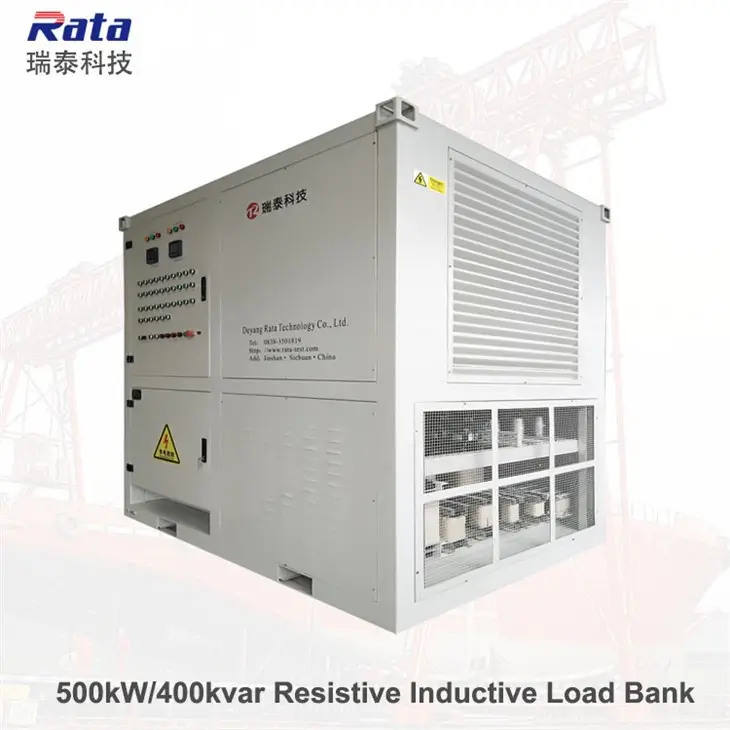

The picture on this page shows the rata 500kW/375kvar resistive load bank with rated active power of 500kW and reactive power of 375kvar.
thinks that design is the soul of Rata, so we highly value it.
why choose us
'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
After Sales Service
Rata Supply 7×24 Hours After Sales Service,In Order To Make Sure Your After-Sales Problems Can Be Responded To Quickly.
Certificates
We Obtained CE, ISO9001, ISO14001, ISO45001 And SGS Quality Certificate And Owned Independent Export Rights.
OEM/ODM
We Can Accept OEM And ODM Service,Custom Your Own Design, Logo And Color.
Partners
ABB,Schneider,Omron,Siemens Phoenix Contact, Delixi
Products Description
The 500kW/375kvar shipyard resistive inductive load bank is used to test the rated power factor of the shipyard diesel generator set. Power factor is an index to measure the output efficiency of converting load current into active power. This is a good indicator of the influence of load on generator efficiency.
The picture on this page shows the rata 500kW/375kvar/400V/50Hz resistive load bank with rated active power of 500kW and reactive power of 375kvar.
Rata 625kVA / 400V resistive load bank can be used in such fields as shipyard generator load test, marine turbine generator inspection, ship shore power supply inspection, aviation power supply performance inspection, uninterruptible power supply inspection, emergency power supply vehicle inspection, etc.
Data Sheet
|
Product name |
500kW/375kvar Resistive Inductive Load Bank; |
| Model number | RT625kVALB; |
| Design | Indoor design |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW+100kW+100kW; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
| Inductive load steps | 1kvar resolution;1kvar+2kvar+2kvar+5kvar+5kvar+10kvar+10kvar+20kvar+20kvar+50kvar+50kvar+100kvar+100kvar; |
| Inductor | 3 phase inductor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Lift lugs and forklift holes |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 2100mm*1530mm*1955mm (L*W*H) |
| Weight | 1850Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
Supply List
| Description | Qty |
| 500kW/375kvar load bank | |
| Factory test report | 1 |
| Wiring diagram | 1 |
| Maintenance and operation manual | 1 |
| Operation software(remote control) | 1 |
| Supper 6 category net cable(remote control) | 50~100m |
Packing
Load bank will be packed with wooden pallet and wooden case for transportation.
Our Partners
Our load bank main parts are the first level brand in the internal market and cooperated well during past 11 years. Good quality parts can make sure the load bank has good quality and long time service life base on the regular maintenance and normal operation.
After Sales Service/Technical Support
The seller promises to provide lifelong technical services, including the following:
1) The system quality assurance period starts from the date of system acceptance and lasts for 12 months.
2) The seller shall provide free maintenance for any quality problems that occur within the warranty period of the system.
3) After encountering problems, users are guaranteed to respond within 2-10 hours (time difference limit).
4) If it is necessary to dispatch technical personnel to the site to solve the problem, the seller shall ensure that they arrive at the site within 24-72 hours. Service personnel shall not evacuate until the problem is solved.
5) Users can permanently enjoy free technical consulting services.
6) Save complete product technical files for users.
7) After the end of the 12 month warranty period, we provide users with lifelong paid maintenance services at a cost only.
8) If necessary, the seller will upgrade and renovate the system for the user at the most favorable price.
9) You can contact the seller if any question you have.
FAQ
1) What is the HS code?
HS code for load bank is 9030899090
2) What is the allowable duty cycle of these units when used continuously?
Generally the load bank will be designed to work continuously.The load bank with forced air cooling system,so long time work is available.
3) What is the expected lifespan of these units under regular use?
20 years
4) Are your load bank units designed for outdoor use and deployment?
Yes. We supply outdoor design.
5) What types of control interfaces do your load bank units support?
Control interface we supply include: RJ45,RS232,RS485
6) Are they compatible with common protocols such as Modbus, or perhaps other remote management solution or protocol?
Yes.they compatible with common protocols such as Modbus TCP.
7) Are these units readily available for immediate delivery or is there a lead time to consider?
There is no stock for load bank. because different customer has different requirement. Customer need to place order first and the production need about 30-50 days based on the power capacity of the load bank and quantity.
8) Do your units comply with relevant international standards for safety and performance?
The load banks design and produced based on following standards and we obtained ISO9001:2015,ISO14001:2015,ISO45001:2018 and CE certificates for load bank.
The design, production and service of the system shall strictly comply with the requirements of Quality Management System (GB/T19001-2008) and refer to the following standards.
> IEC62271-1 High-voltage switch gear and control gear
> IEC60529 Degrees of protection provided by enclosure(IP Code)
> IEC60204 Safety of machinery
> IEC61000 Electromagnetic Compatibility
> GB/T 2820.5-2009 Reciprocating Internal Combustion Engine Driven AC Generator Set Part 5: Generator Set
> GB/T 13032-2010 Marine Diesel Generator Set
> GB/T 1029-2005 Test Methods for Three Phase Synchronous Machines
> GB 14711-2006 Safety Requirements for Small and Medium Rotating Electrical Machines
> GJB 5785-2006 General Specification for Military Internal Combustion Generator Sets
> GJB 235-1997 General Specification for Military AC Mobile Power Station
> GJB 1488-92 Test Method for Power Supply of Military Internal Combustion Engines
9) Do you provide training or documentation for proper handling and operation of these units?
Yes. We will supply the operation instruction.
10) How to use the remote operation software?
We will supply you operation instruction and video for the remote operation software.
