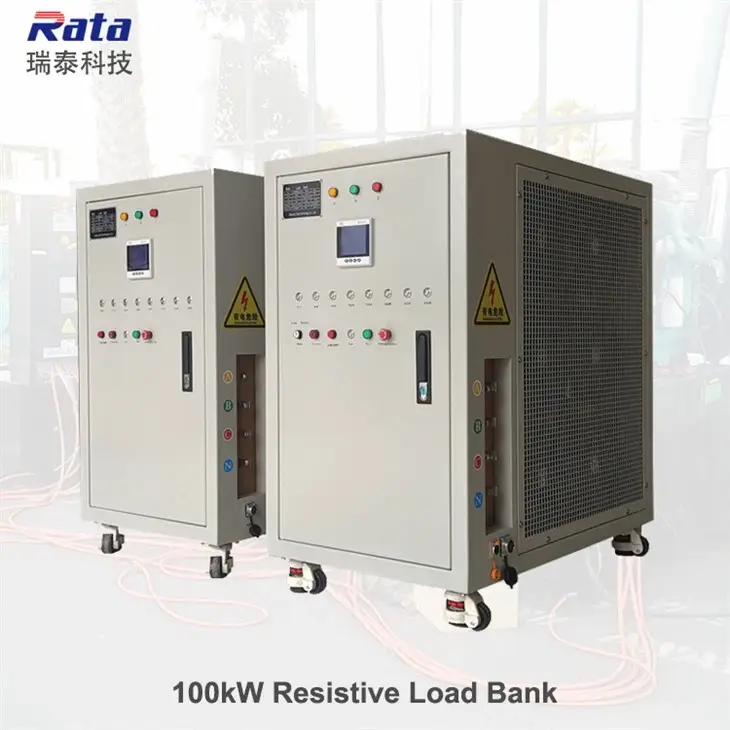

100kW Load Bank for Sale
Rata 100kW load bank for sale.This load bank designed as indoor application with local panel switching control and remote PC control by Rata supplied operation software.Software language is English.
Every small detail in the development of this product is paid attention to.
100kW Load Bank for Sale
Products Description
Rata 100kW load bank for sale.This load bank designed as indoor application with local panel switching control and remote PC control by Rata supplied operation software.Software language is English. Power cables connected by copper bar and quick connector.Universal wheels used for movement.
Main Parameters
| Rated power capacity | R100kW,resistive only |
| Design | Indoor design |
| Rated voltage | AC 380V,400V,415V and other customized voltages,connected with copper bar |
| Control voltage | 230VAC,1 phase 2 wire,connected with quick connector |
| Control mode | Local panel switching control and remote PC control,generator tester,PLC system,RJ45 interface,super 6 category net cable,curve,chart,table,support load data save and printing |
| Load steps | 1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW |
| Cooling | Forced air cooling.Horizontal air intake and air outlet |
| Resistor | 8020 Ni-Cr alloy finned resistor |
| Protection | Short circuit,overcurrent,high temperature,low air volume,fan fault protection,emergency stop |
| Size | 700mm*500mm*960mm (L*W*H) |
| Weight | 105kg |
| Packing | Wooden case and pallet |
packing and Delivery
Rata 100kW load bank packed with wooden case and wooden pallet and generally exported from Shanghai port,China.
Company Profile and Certificates
Deyang Rata Technology Co., Ltd., established in 2013, is located in Jinshan Industrial Park, Luojiang District, Deyang City. Rata is an ISO9001:2012 quality management system certification enterprise and a national high-tech enterprise. Since its establishment, Rata has obtained 18 utility model patent certificates and 8 computer software copyright registration certificates.
Rata's main products include medium and low voltage resistive load banks, resistive reactive load banks, rack mounted load banks, electronic loads and battery dischargers, etc. the products are mainly used in large shipyards and power plants at home and abroad, generator on load test operation, transformer test, UPS power supply test and storage battery discharge point test, etc. In addition, Rata provides users with perfect system solutions such as ship shore power, data center, new energy and grid adaptability experiment.
Rata has a perfect technological innovation system and strong R & D capability. For many years, it adheres to the policy of "quality first, customer first", and serves all major fields at home and abroad in good faith. The product quality is reliable and the price is reasonable, which is deeply favored by the majority of users.
Our products have already exported to USA,South Korea,Kazakhstan,India,Pakistan,Singapore,Indonesia,Iraq,UAE,Hungary,Denmark, Finland,France,Germany,Rwanda,New Zealand,Chile,Peru,Brazil and other countries and regions and with good reputation.
The great quality and durability can definitely be guaranteed.
Data Sheet
|
100kW Resistive Load Bank Data Sheet |
|
|
Product name |
100kW resistive load bank; |
| Model number | RT100kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
Customized voltages are available; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 700mm*500mm*960mm (L*W*H) |
| Weight | 105Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
