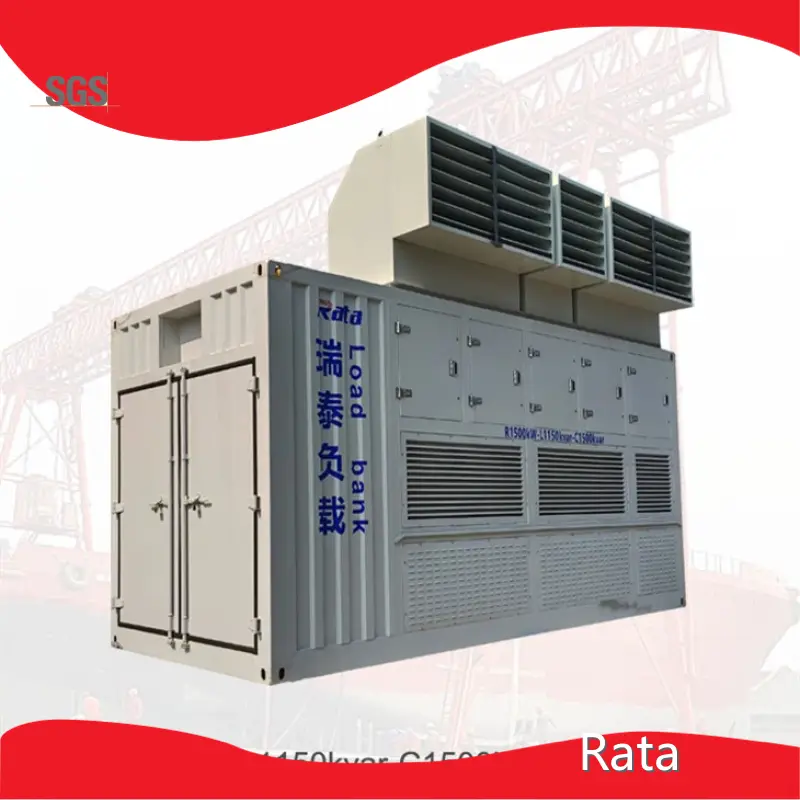

Custom Load Banks Load Bank Wholesale - Rata

Rated capacity

Active power 1500kW. inductive reactive power 1150kvar. capacitive reactive power 1500kvar (reserved capacitor installation space and control functions, but no capacitors)

Test voltage

The low voltage corner connection can measure AC0.4kV , 0.44kV, . the low voltage star connection is 0.48kVA , C0.6kV , 0.66kV, 0.69kV, and the high voltage test can measure 3.3kV, 6.6kV, 10.5kV through the voltage transformer of the medium voltage cabinet

Rated frequency

50Hz

Test frequency

50Hz～60Hz

Load characteristics

Integrated loads of resistance, inductance and capacitance can run in parallel

Power Factor

Inductive 0.8-1, capacitive 0.9-1

Load connection

Copper bar, manual star-delta switching

Loading accuracy

±3%

Three-phase balance

The unbalance degree ≤ 3%

Way of working

Continuously working

Working power

AC380V/50Hz/three-phase four-wire system/ 80kW

Cooling method

Forced air cooling (side inlet and top outlet)

Insulation class

F

Anticorrosion grade

C4

Parameter measurement accuracy

Instrument sampling accuracy 0.2 (voltage ±0.5%, current ±0.5%, frequency ±0.1%, power ±1%, power factor ±1%)

Minimum loading resolution

0.1kW / 0.1kvar / 0.1kvar

Load steps

Active power 1500kW(R) :

0.1kW, 0.2kW*2 , 0.5kW, 1kW*2, 2kW, 5kW, 10kW*2, 20kW, 50kW, 100kW*2 , 200kW*6

Inductive power 1150kvar (L):

0.1kvar, 0.2kvar*2, 0.5kvar, 1kvar*2, 2kvar, 5kvar, 10kvar*2, 20kvar, 50kvar*2, 100kvar*10

Capacitive power 1500kvar (C):

0.1kvar, 0.2kvar*2, 0.5kvar, 1kvar *2, 2kvar, 5kvar, 10kvar*2, 50kvar, 100kvar*14

Load control function

Control method

Local manual control and remote console control (1 set of control system, can be used in parallel)

Operating terminal

Local manual button/remote button/remote intelligent control

Measurement and control function

I, V, Hz , kW, COSΦ , etc., detection of electrical performance indicators, monitoring of system electrical parameters, and automatic data collection

Load control

Button/PC-contactor execution

Load protection

Short circuit, over voltage, high temperature, air volume, emergency shutdown protection

Use ambient temperature

-10℃～+55℃

Load working environment and box parameters

Use altitude

≤2500 meters

Relative humidity

≤95%RH

Atmospheric pressure

86-106Kpa

Load bank size

6000mm×2438mm×2900mm (length×width×height)

Weight

Container about 15000Kg

Protection class

IP56

Utilized location

Outdoor

Working status

Continuously working

Installation and transportation

The box body has load-bearing lifting holes and car sockets, which meet the conditions of long-distance transportation by automobiles

Load expansion

1+N load containers can be expanded in parallel

Box color

According to your requirements

Scope of application

Suitable for gas generator sets, marine diesel generator sets, land diesel generator sets, UPS systems

System standard

Meet the test of international standard, ship standard, military standard and telecommunication standard

Main component brands

Contactor

ABB

Fuse

Tracy

PLC

Siemens

Alloy resistor

Jupiter

Capacitor

Wisconsin

Inductor

Rata (independent research and development)

Data management software

Rata (independent research and development)

Other requirements

1. Current/voltage sampling

The fixed load cabinet has load current sampling, and the load voltage sampling includes load end sampling and generator end sampling conversion, so as to eliminate the influence of the line on the measurement results.

2. The intelligent console should have an external display terminal interface VGA or DVI to meet the requirements of Party A for extended display.

3. Installation requirements

1) The load cabinet is fixedly installed outside the workshop.

2) The intelligent console is installed in the ground control room and connected to the load cabinet through control cables.

4. The data and waveform on the load cabinet can be transmitted to the intelligent console and displayed.

5. When the load is expanded, it can only be controlled on the main console, and the control on the slave console fails, and the test data can only be displayed on the main console, and the total load parameters can be displayed.

6. The supplier shall provide Party A with the structure diagram of the Load bank within 10 natural days after the signing of the contract, so that Party A can prepare the installation foundation of the Load bank in advance.

7. The supplier shall provide the buyer within 10 natural days after the signing of the contract: the electrical installation and wiring diagram of the supplied equipment.
