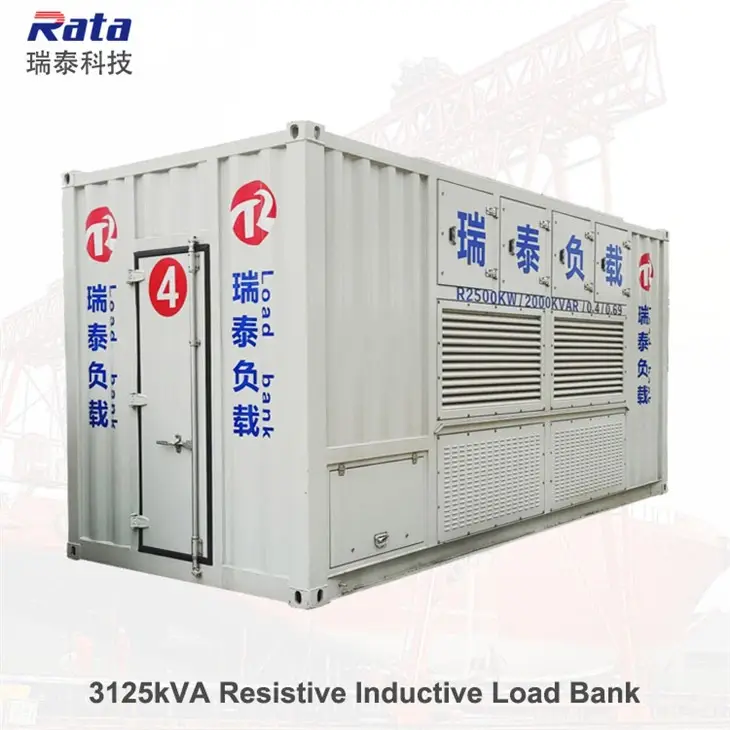

Marine 2500kW/2000kvar Resistive Inductive Load Bank

Resistive inductive load bank is a load device used for testing electronic devices. It usually consists of resistive resistance and inductive resistance, and has various functions and parameter configurations to meet the testing needs of different types of electronic devices such as ship generator,power plant,electricity station,aviation,oil and chemical,drilling platforms,mining,self owned power plants and others.



R2500kW/L2000kvar 3 phase air cooled resistive inductive load bank is a power load test device independently developed by our company for use in Radar load test platform. It has the advantages of simple operation,parallel use of visible load capacity,high load test accuracy,no test preparation time,long-term continuous use,etc. R2500kW/L2000kvar/400V/690V resistive reactive load bank is divided into three parts: resistive loads, inductive loads and control system.









Product name	2500kW/2000kvar Resistive Inductive Load Bank;
Model number	RT3125kVALB;
Design	Container type design

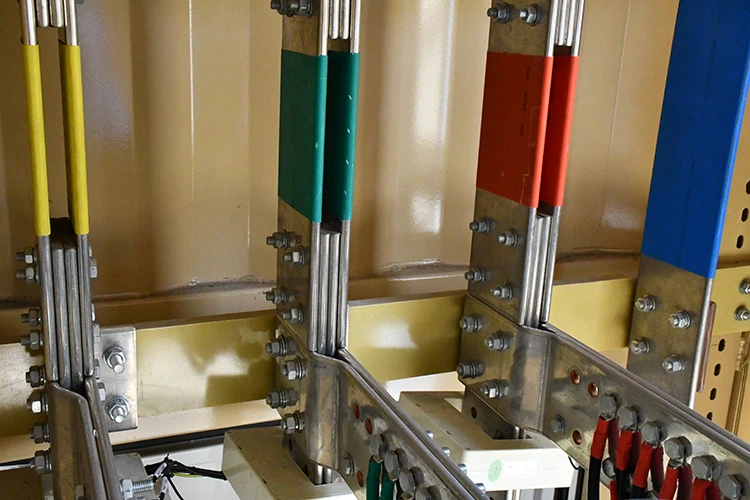

Rated power	AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar;
Control power	AC380V,3 phase 4 wire,connected with quick coonector/terminal;
Frequency	50Hz/60Hz;
Loading accuracy	≤ 3%;
3 phase balance	Unbalance degree ≤ 3%;
Duty cycle	Continuous work
Insulation	F

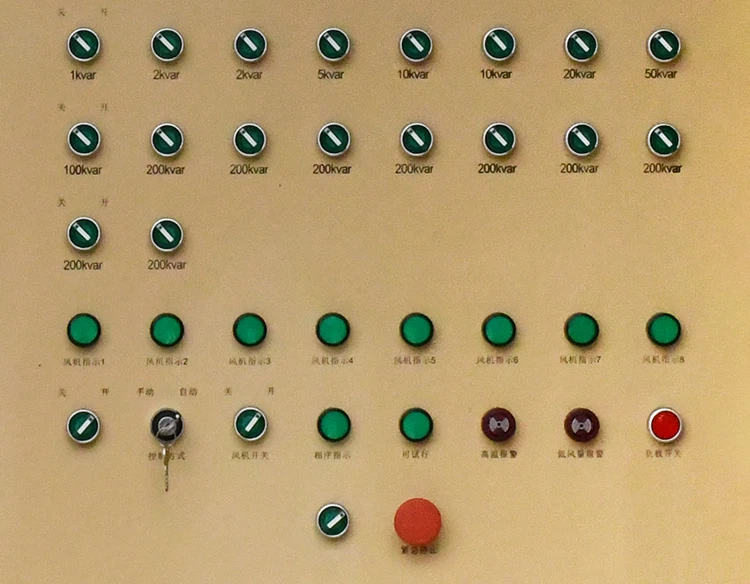

Operation mode	1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing);
Resistive load steps	1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW+200kW×11;
Resistor	8020 Ni-Cr alloy finned resistor;
Inductive load steps	1kvar resolution;1kvar+2kvar+2kvar+5kvar+10kvar+10kvar+20kvar+50kvar+100kvar+200kW×9;
Inductor	3 phase inductor;
Cooling system	Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance;
Enclosure	Q235 steel,powder coated.
Protection	High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop;
Digital meter	Voltage,current,power,power factor and frequency;
Load expansion	Parallel expansion of multiple loads;
Standard	Meet international standard,ship standard,military standard and telecommunication standard;
Movement	Lift lugs on the top of the load bank;
Color	RAL 7035(industrial grey);

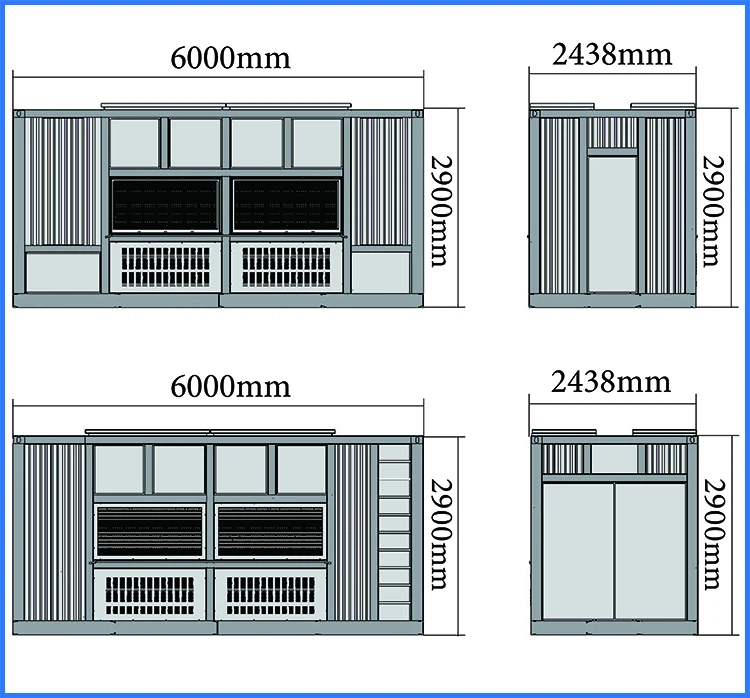

Dimensions	6000mm*2530mm*2900mm (L*W*H)
Weight	18000Kg
Ambient temperature	-20℃ to 50℃
Humidity	Up to 100%
Altitude	Up to 2500m
Atmospheric pressure	86 to 106kPa

Our load bank main parts are the first level brand in the internal market and cooperated well during past 11 years. Good quality parts can make sure the load bank has good quality and long time service life base on the regular maintenance and normal operation.





1) After the equipment is used for half a year, the interior of the equipment should be treated with dust and cleaned with a vacuum cleaner. In the case of a harsh operating environment, the maintenance interval of the equipment should be appropriately shortened.

2) During the use of the equipment, the fan will vibrate slightly. After 2000 hours of use, the fan fixing parts should be reinforced.

3) If paint damage is found on the equipment, it should be repaired in time.



Load bank Package



Wood case based on a pallet.(For load bank in canopy design)

---





The seller promises to provide lifelong technical services, including the following:

1) The system quality assurance period starts from the date of system acceptance and lasts for 12 months.

2) The seller shall provide free maintenance for any quality problems that occur within the warranty period of the system.

3) After encountering problems, users are guaranteed to respond within 2-10 hours (time difference limit).

4) If it is necessary to dispatch technical personnel to the site to solve the problem, the seller shall ensure that they arrive at the site within 24-72 hours. Service personnel shall not evacuate until the problem is solved.

5) Users can permanently enjoy free technical consulting services.

6) Save complete product technical files for users.

7) After the end of the 12 month warranty period, we provide users with lifelong paid maintenance services at a cost only.

8) If necessary, the seller will upgrade and renovate the system for the user at the most favorable price.

9) You can contact the seller if any question you have.



What is a load bank, and the HS code ?
A load bank is a device used to simulate an electrical load to test power sources such as generators, UPS systems, and other power equipment. It helps verify the performance, efficiency, and reliability of the power system.

HS code of load bank is commonly using 9030899090

2. What types of load banks are available?

Resistive load banks

Inductive load banks

Capacitive load banks

Resistive-reactive (combined) load banks

DC load banks

Customized load banks (e.g., rack-mounted, water-cooled, containerized, etc.)

3. Why do I need a load bank?
To perform regular preventive maintenance and commissioning of power systems, ensuring they can handle real-world loads, prevent wet stacking in diesel generators, and verify system performance under load conditions.

4. Where are load banks commonly used?

Data centers

Power plants

Marine/offshore

Renewable energy (wind/solar farms)

Military and aerospace

Manufacturing and industrial sectors

Generator rental and service companies

5. What parameters can a load bank test?

Voltage stability

Frequency stability

Generator load capability

Engine/generator performance

Battery capacity (for DC load banks)

Power factor (with inductive or capacitive load banks)

System integration and synchronization
