Rata Load Bank Dc Load Bank Factory
Product Overview
Certainly! Here is a summary of the “Rata Load Bank DC Load Bank Factory” based on the detailed introduction:
Product Features
**Product Overview**
Product Value

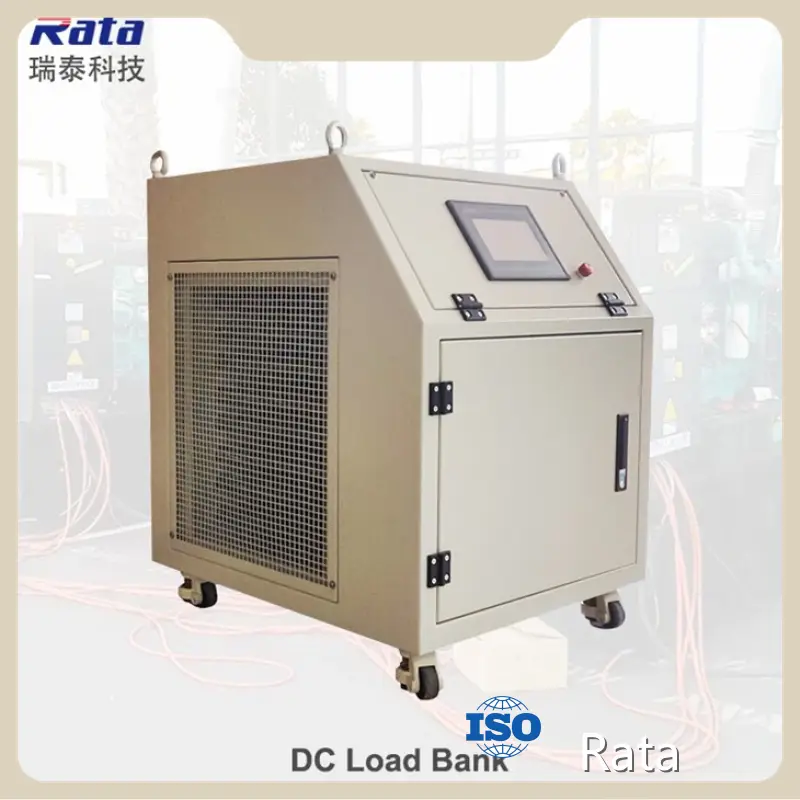

The DC load bank is a specialized testing instrument designed to simulate various load conditions for electronic devices. It primarily tests and evaluates the performance of DC power equipment such as power supplies, inverters, and batteries by replicating different electrical loads and operating scenarios.
Product Advantages
**Product Features**
Application Scenarios
- Customized voltage and current configurations (e.g., 24V/600A, 30V/800A, 48V/1000A, 260V/1000A)
- Touch screen control for easy operation
- Emergency stop function for safety
- Horizontal air discharge cooling system
- Local operation capability with universal wheels for portability
- Designed with high-quality assurance and strict quality control systems
**Product Value**
This product enhances the reliability and quality assurance of DC power equipment by enabling precise performance testing under various load conditions. It provides essential data on output voltage, current, efficiency, stability, and durability, helping manufacturers and users optimize their devices for better performance and longer service life.
**Product Advantages**
- High customization to meet diverse testing needs
- User-friendly interface with modern controls
- Robust safety features such as emergency stop
- Portability due to universal wheels and compact design
- Supported by rigorous quality assurance processes and advanced technology development from Deyang Rata Technology Co., LTD
**Application Scenarios**
- Testing and evaluation of power supplies, inverters, and batteries
- Simulating different load conditions (constant current, voltage, power) for electronic device assessments
- Use in electronic manufacturing, power generation, communication equipment servicing, aerospace industries
- Educational and laboratory teaching applications for understanding electronic device performance
- Versatile use across industries requiring reliable DC power testing and validation
This product is ideal for users who require precise, safe, and efficient load testing solutions for DC power equipment.
DC Load Bank Data Sheet
| Model No. | RT30V-800A | RT48V-1000A | RT24V-600A | RT260V-1000A |
| Load type | Resistive | Resistive | Resistive | Resistive |
| Voltage | DC30V | DC48V | DC24V | DC260V |
| Current | 800A | 1000A | 600A | 1000A |
| Control mode | Touch screen | |||
| Protection | IP23 | |||
| Control voltage | 230V,1P2W | |||
| Load accuracy | ±3% | |||
| 3Phase Balance | Unbalance≤3% | |||
| Insulation | F | |||
| Load power connection | Terminal + quick connector | Terminal + quick connector | Terminal + quick connector | Terminal + quick connector |
| Time rating | Continuous design | |||
| Load adjust | Customized available | |||
| Cooling system | Cooling mode: air cooled,horizontal air inlet/outlet | |||
| Load test function | Real time display of current, voltage, frequency, power, power factor, etc. | |||
| Load protection | Low air volume, high temperature, over pressure, over current, short circuit, emergency stop, etc. | |||
| Cabinet color | Customized | |||
| Transportation | Lifting hole/universal wheels | |||
| Dimension(L*W*H) | 770mm×620mm×1040m | 720×750×1230mm | 640×740×900mm | 920×935×1540mm |
| Weight | 105kg | 200kg | 160kg | 400kg |
| Packing | Wooden case | |||
| Work Environment | ||||
| Temperature | -20ºC to 50ºC | |||
| Humidity | up to 100% | |||
| Altitude | up to 2500m | |||
| Atmospheric pressure | 86 to 106kPa | |||
