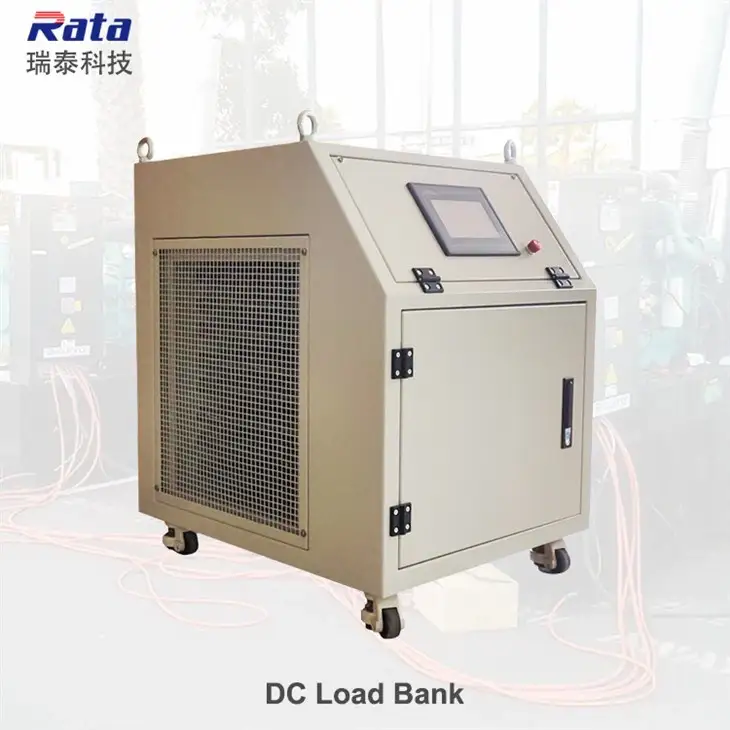

DC load bank
DC load bank is a testing instrument used to simulate the load of electronic devices, mainly used for performance testing and load simulation of DC power equipment such as power supplies, inverters, batteries, etc.
enjoy a high status among consumers.
DC load Bank Application
DC load bank is a testing instrument used to simulate the load of electronic devices, mainly used for performance testing and load simulation of DC power equipment such as power supplies, inverters, batteries, etc. It can simulate various load conditions to test and evaluate the performance of power supply devices under different load conditions. The following are some main applications of DC load bank es:
1) Power supply testing: The DC load bank can be used to test the output voltage, current, efficiency, stability and other performance indicators of the power supply under different load conditions, in order to evaluate its working quality and stability.
2) Inverter testing: An inverter is a device that converts DC power into AC power. The DC load bank can be used to test the output waveform, frequency, efficiency and other performance indicators of the inverter under different load conditions, in order to evaluate its conversion efficiency and output stability.
3) Battery testing: The DC load bank can be used to test the output voltage, capacity, cycle life and other performance indicators of the battery under different load conditions, in order to evaluate the performance and reliability of the battery.
4) Electronic device load simulation: DC load bank can simulate various load conditions, such as constant current, constant voltage, constant power, etc., to test and evaluate the working performance and stability of electronic devices under different load conditions.
5) Teaching experiment: DC load bank can be used for teaching experiments in electronic laboratories, helping students understand and master the working principles and performance characteristics of electronic devices such as power supplies, inverters, batteries, etc.
In summary, DC load bank play an important role in the testing and evaluation of DC power equipment such as power supplies, inverters, and batteries, and are widely used in fields such as electronic manufacturing, power, communication, and aerospace.
DC Load Bank
Customized voltage,current,operation and movement design
30V/800A
30V/800A
Touch screen control
Emergency stop
Horizontal air discharge
Local operation
Universal wheels
48V/1000A
48V/1000A
Touch screen control
Emergency stop
Horizontal air discharge
Local operation
Universal wheels
24V/600A
24V/600A
Touch screen control
Emergency stop
Horizontal air discharge
Local operation
Universal wheels
260V/1000A
24V/600A
Touch screen control
Emergency stop
Horizontal air discharge
Local operation
Universal wheels
Reference Pictures
Quality assurance review is one of the critical steps in producing Rata in
DC Load Bank Data Sheet
| Model No. | RT30V-800A | RT48V-1000A | RT24V-600A | RT260V-1000A |
| Load type | Resistive | Resistive | Resistive | Resistive |
| Voltage | DC30V | DC48V | DC24V | DC260V |
| Current | 800A | 1000A | 600A | 1000A |
| Control mode | Touch screen | |||
| Protection | IP23 | |||
| Control voltage | 230V,1P2W | |||
| Load accuracy | ±3% | |||
| 3Phase Balance | Unbalance≤3% | |||
| Insulation | F | |||
| Load power connection | Terminal + quick connector | Terminal + quick connector | Terminal + quick connector | Terminal + quick connector |
| Time rating | Continuous design | |||
| Load adjust | Customized available | |||
| Cooling system | Cooling mode: air cooled,horizontal air inlet/outlet | |||
| Load test function | Real time display of current, voltage, frequency, power, power factor, etc. | |||
| Load protection | Low air volume, high temperature, over pressure, over current, short circuit, emergency stop, etc. | |||
| Cabinet color | Customized | |||
| Transportation | Lifting hole/universal wheels | |||
| Dimension(L*W*H) | 770mm×620mm×1040m | 720×750×1230mm | 640×740×900mm | 920×935×1540mm |
| Weight | 105kg | 200kg | 160kg | 400kg |
| Packing | Wooden case | |||
| Work Environment | ||||
| Temperature | -20ºC to 50ºC | |||
| Humidity | up to 100% | |||
| Altitude | up to 2500m | |||
| Atmospheric pressure | 86 to 106kPa | |||
