Rata Load Bank Dc Load Bank with Good Price
Product Overview

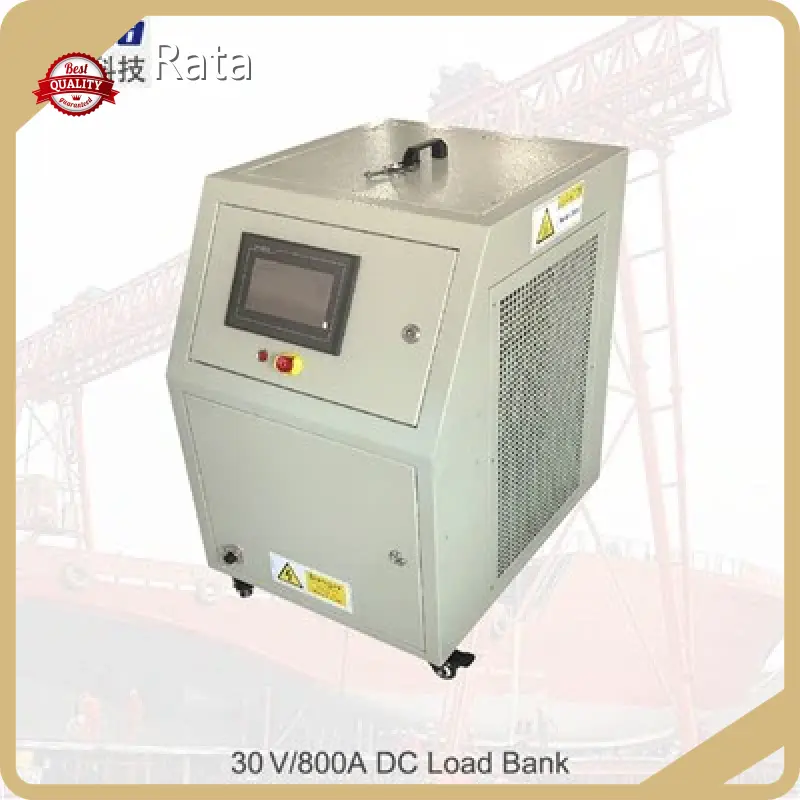

- Model: RT30V-800ALB — a resistive DC load bank rated DC 30 V / 800 A designed for continuous duty.

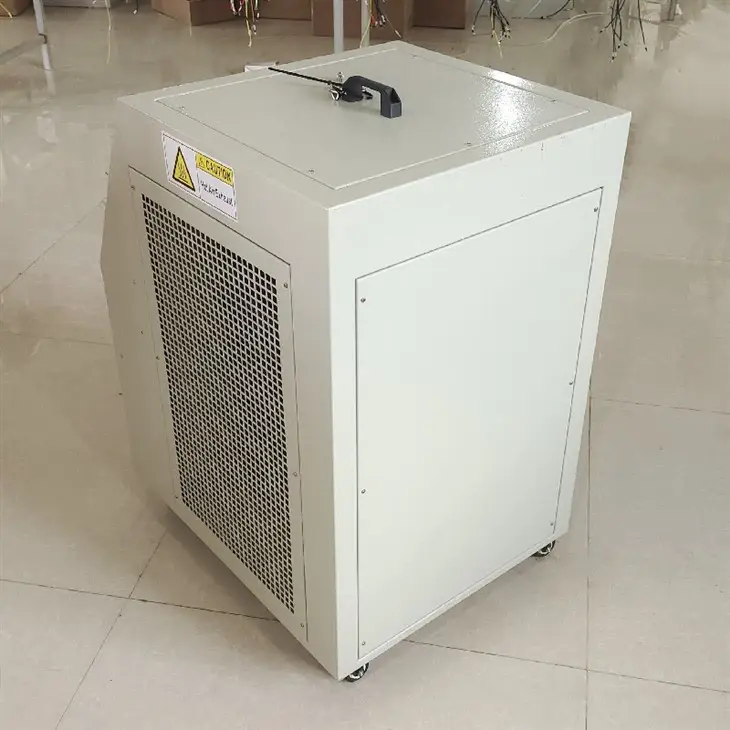

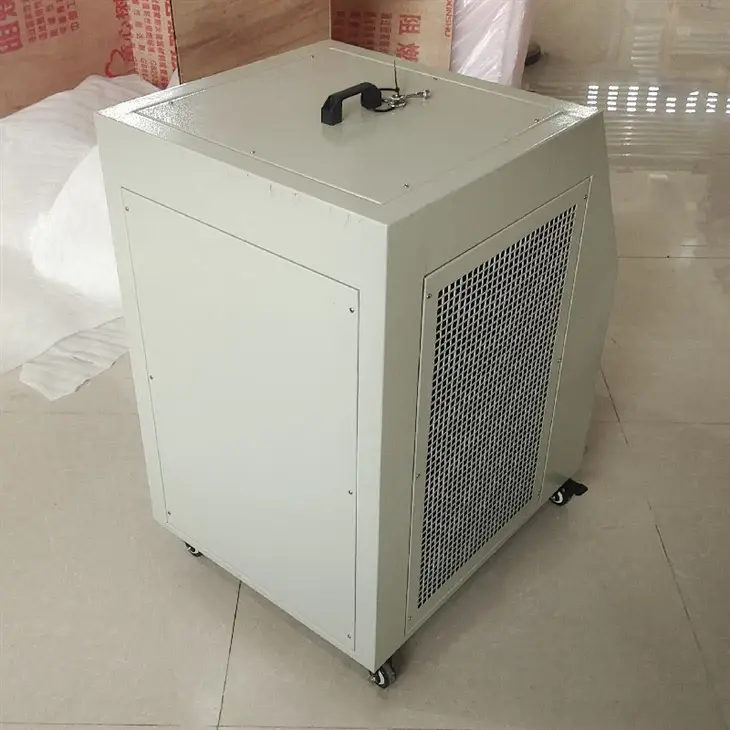

- Compact, portable cabinet (770 × 620 × 1040 mm, 105 kg) with lifting holes and universal wheels; packaged in a wooden case.

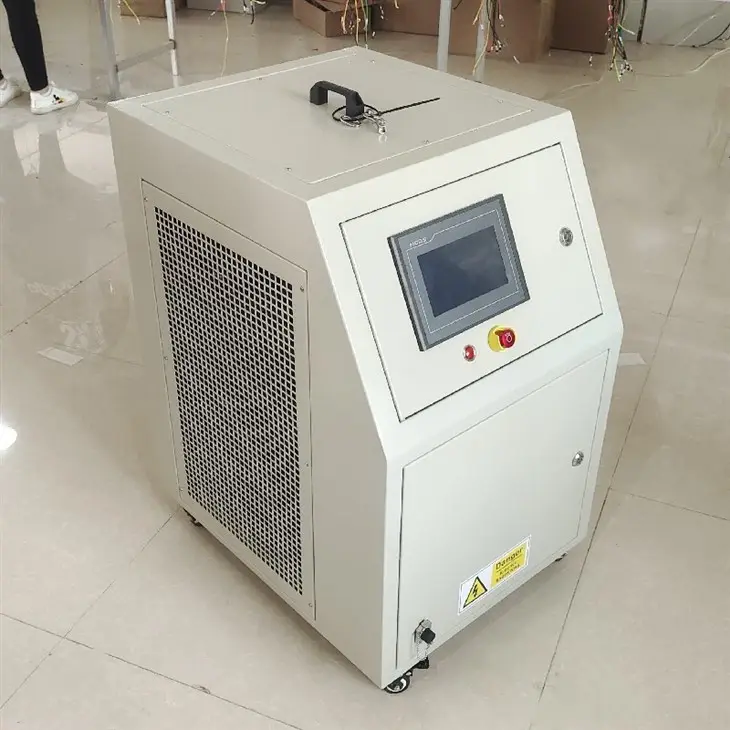

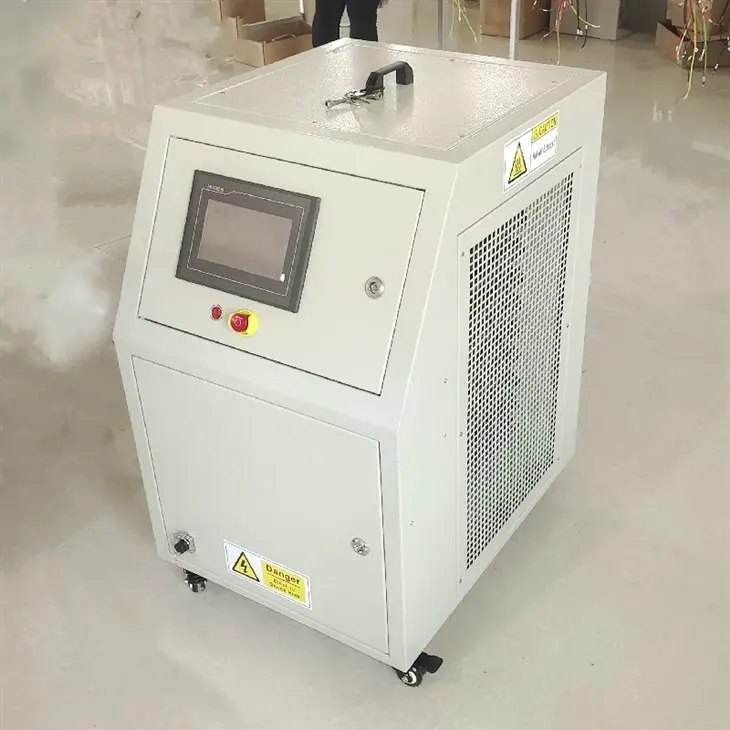

- Local touch-screen control panel with power indicator and emergency stop; power/control supplied from single-phase AC 230 V.
Product Features
- Resistive Ni‑Cr finned resistor with copper-bar power connections and quick connector.
- Load step configuration for flexible setting (two 50 A steps plus seven 100 A steps for accurate adjustment up to 800 A).
- Forced-air cooling (horizontal inlet/outlet) and IP23 protection.
- Real-time display of electrical parameters (current, voltage, power, power factor where applicable).
- Multiple protections: low air volume, high temperature, overpressure, overcurrent, short circuit, emergency stop, etc.
Product Value
- Provides stable, accurate, and repeatable DC loading for development, testing and maintenance tasks.
- Continuous-duty capability enables long-duration discharge and soak tests (battery validation, system endurance).
- Touch-screen control and real-time monitoring save operator time and reduce testing errors.
- Cost-effective option (marketed “with good price”) that balances performance, safety and portability.
Product Advantages
- High build quality and safety standards with comprehensive protections.
- Good load accuracy (±3%) and three-phase balance control (unbalance ≤ 3%) for consistent results.
- Easy mobility and deployment in the field due to handles, wheels and compact footprint.
- Robust cooling design and continuous rating permit heavy-duty and extended tests without derating.
- Professional after-sales/service backing from manufacturer.
Application Scenarios
- Battery bank testing and capacity/discharge verification (lead‑acid, Li‑ion, etc.).
- DC power supply, UPS and rectifier commissioning and maintenance.
- Renewable and storage system validation (PV/battery integration benches, DC bus tests).
- Manufacturing test benches, R&D labs and quality control for DC equipment.
- On-site service, troubleshooting and acceptance tests for telecom, data centers, industrial DC systems.
Data Sheet
|
Load Bank Data Sheet |
|
|
Model No. |
RT30V-800ALB |
|
Load type |
Resistive |
|
Voltage |
DC30V |
|
Current |
800A |
|
Control mode |
Touch screenTouch |
|
Protection |
IP23 |
|
Control voltage |
Power source: 1 phase 2 wire,AC230V |
|
Load accuracy |
±3% |
|
3Phase Balance |
Unbalance≤3% |
|
Insulation |
F |
| Resistor | Ni-Cr alloy finned resistor |
|
Load power source connection |
Nickle coated brass |
|
Time rating |
Continuous design |
|
Load adjust |
Steps: 50A+50A+100A×7 |
|
Cooling system |
Forced air cooled,horizontal air inlet/outlet |
|
Load test function |
Real time display of current, voltage, frequency, power, power factor, etc. |
|
Load protection |
Low air volume, high temperature, over pressure, over current, short circuit, emergency stop, etc. |
|
Cabinet color |
RAL7035(industrial grey) |
|
Transportation |
Lifting hole + universal wheels |
|
Dimension(L*W*H) |
770mm*620mm*1040mm |
|
Weight |
105kg |
|
Packing |
Wooden case |
|
Work Environment |
|
|
Temperature |
-20ºC to 50ºC |
|
Humidity |
up to 100% |
|
Altitude |
up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
