2800kW 3500kvA resistive-inductive load bank For UPS or Generator Testing
Product Introduction

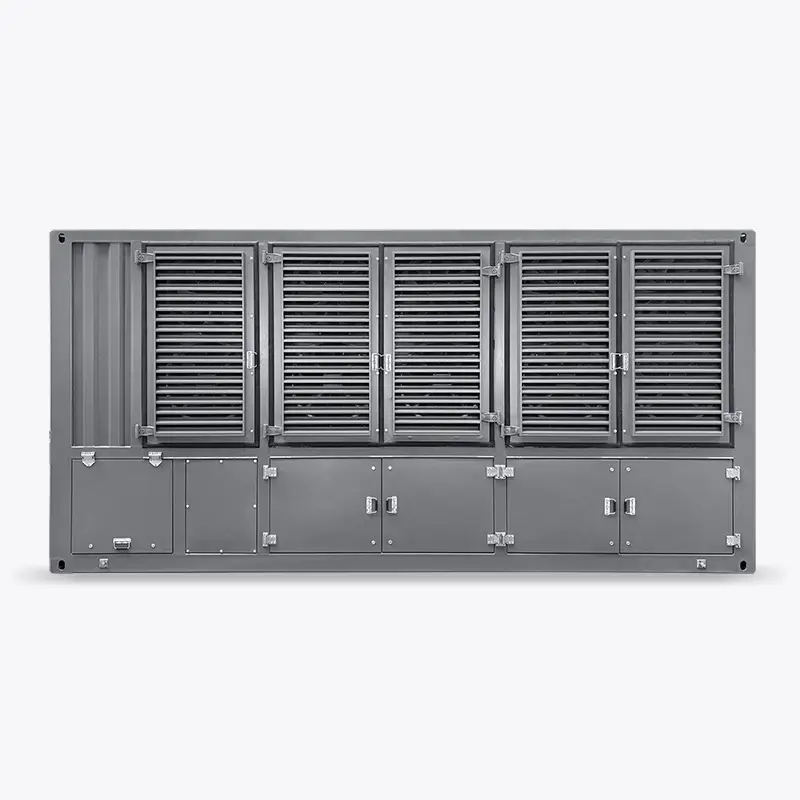

Rata's RTX2400L is a high-performance 2800kW/3500kVA integrated resistive-inductive load cell designed for comprehensive testing of generators, UPS, switchgear, and other power systems.
This device has a rated test voltage of 415Vac (400V compatible), supports 50/60Hz frequencies, uses a three-phase three-wire connection, and features an adjustable power factor of 0.8-1.0. It is equipped with comprehensive safety protection: integrating multiple safety mechanisms to ensure safe and reliable testing, and features a high-efficiency cooling system.
Control Board and Connections for ref
(It varies a little according to customer's real demands)
● Low air volume: when the air volume of any fan is insufficient, it will automatically unload and alarm.
● High temperature: automatically unload and alarm when the load temperature exceeds the safety threshold.
● Emergency stop: manual one button forced unloading is available, and it cannot be loaded under emergency stop locking status.
● Fan phase sequence automatic transfer protection: when the control power line is not connected according to the correct phase sequence, the three-phase fan can also operate in the normal direction.
● Operational indicator: indicates whether the device can be put into load, and the indicator light on indicates that the device is in normal state and can be put into load.
● Fan interlock protection: the load cannot be loaded before the fan power switch is turned on.
● Fan operation indicator: indicates whether the fan of the device is running, and the corresponding indicator light for fan startup is on.
● Load switch: the control device is to switch on or off the load, and jog the switch to switch on the selected load.
Product Specifications
| Model No.: RTX2400L | |||||
| Country of origin | China | ||||
| Rated testing voltage | 415Vac （suitable for 400V too） | ||||
| Control voltage(Auxiliary power supply) | 400Vac | ||||
| Frequency | 50Hz / 60Hz both | ||||
| Phases & Wires | 3P3W | ||||
| Power factor | 0.8-1.0 adjustable. | ||||
| Voltage（V） | Apparent (kVA) |
Resistive（kW） 50Hz & 60Hz |
Reactive（kVAR）50Hz |
PF of Reactive 50Hz |
|
| 415 | 3500 | 2800 | 2100 | 0.80 | |
| Load step resolution | 10kW/10kVAR | ||||
| Active load steps (kW) | 10kw+20kw*2+50kw+100kw+200kw*3+500kw*4 (2800kw in total, 12 steps) |
||||
| Reactive load steps (kVAR) | 10kvar+20kvar*2+50kvar+100kvar*2+150kvar*12 (2100kvar in total, 18 steps) |
||||
| Estimated Length(mm)*Width(mm)*Height(mm) |
5500*2100*2600mm （100-200mm hinge/cover） |
||||
| Estimated weight (KG) | About 15,000 kgs | ||||
| Fan quantity | 10pcs | ||||
| Other information | |||||
| Voltage Tolerance (Short Term Operation) | +5% | ||||
| Load Element Tolerance | ≤+2.5% | ||||
| Load Connections | Copper busbars （connect with cables） | ||||
| Protection | Thermal emergency cut out | ||||
| Air flow switch | |||||
| Fan overload protection | |||||
| Emergency stop | |||||
| Ground lead | |||||
| Airflow direction | Horizontal upwards air forced cooling (side in, up out) | ||||
| Fan type | Airfoil axial fan | ||||
| Load switching contactor type | AC contactors | ||||
| Rated maximum/minimum ambient temp. operation | +50°C / -15°C | ||||
| Altitude rating | ≤2000 [m.a.s.l] | ||||
| Control chamber IP rating | IP 54 outdoor | ||||
| Enclosure material | Containerized cold rolled stainless steel plate with painting. | ||||
| Enclosure color | RAL 7035 or customizable | ||||
| Resistor | |||||
| Resistor material | finned resistor, AISI304/stamped elements | ||||
| 8020 Ni-Cr alloy | |||||
| Stainless steel tube | filled with magnesium oxide powder | ||||
| Insulation impedance | DC1000V 20MΩ above | ||||
| Insulation Test voltage | 2000 Vac for 1min | ||||
| Withstand temperature | About 800℃ | ||||
| Resistance error | ± 3% | ||||
| Reactor | |||||
| Type | Three-phase iron core reactor | ||||
| Material | Oxygen free enameled wire wound and sealed with paint | ||||
| Iron core | Baosteel high-quality cold rolled oriented silicon steel sheets | ||||
| Load test functions | |||||
| Real time display content | Current, Voltage, Frequency, Power, Power factor, Electrical performance indicators, System electrical parameter monitoring, Automatic data acquisition | ||||
| > Above all functions for manual + PC control | |||||
| Main parts brands |
Contactor: Siemens/ Schneider/ABB/ or equivalent |
||||
| Portability | Standard ISO lifting points and forklift holes | ||||
| Duty cycle | Continuous | ||||
| Load bank control system 1 | |||||
| Manual control | Press buttons with electrical meter | ||||
| Press buttons | Low air volume, High temperature, Fan switch, Fan phase sequence indicators, Operational indicator, Load switch | ||||
| Electrical meter display | Current, Voltage, Frequency, Power, Power factor | ||||
| Load bank control system 2 | |||||
| PLC control | Remote PC control with patented software Nexus-1 | ||||
| Support printing | Table saved by Excel,curve saved by word. | ||||
| Remote computer automatic control | RS485 communication protocol | ||||
| Communication interface RJ45 | |||||
| Control software in English version(commissioning well before sent to user) | |||||
| PLC system | |||||
| Function include load data monitor, acquisition, curve, chart, load data save and printing. | |||||
| Load bank control system 3 | |||||
| Tablet controller |
8 inch Windows System Three-proof Tablet PC RT80 |
||||
| More information please see as the form below from page 8. | |||||
| Quality warranty | |||||
| 12 months start from receiving the goods at your side. | |||||
| Technical support | |||||
| 7×24 hours service(subject to time zone difference) | |||||
| Online meeting available anytime. | |||||
| Technician guidance online freely, technician going abroad in charged(negotiable). | |||||
| Documents providing | |||||
| Factory report. | |||||
| Operation and maintenance instructions. | |||||
| Structure diagrams & Electrical schematic diagram after deposit. | |||||
