Name: Liquid cooled 240kw AC load bank Portable
Brand: Rata

Featuring an advanced closed-loop liquid cooling system, it delivers 240 kW of continuous load capacity with exceptional stability and low noise.

Applications:
（1）Data center；
（2）energy storage inverter testing；
（3）generator testing; laboratory testing；
Especially suitable for indoor or space-constrained environments

Schneider Eletric Authorise:

Prisma E Standardized low-voltage sub switchboard Technology and Business Partner

Warranty time:

3 years

Delivery time:

4 weeks

ISO Certification:

ISO9001/ISO14001

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

View size guide

Inquiry

Write a Review

Product Introduction

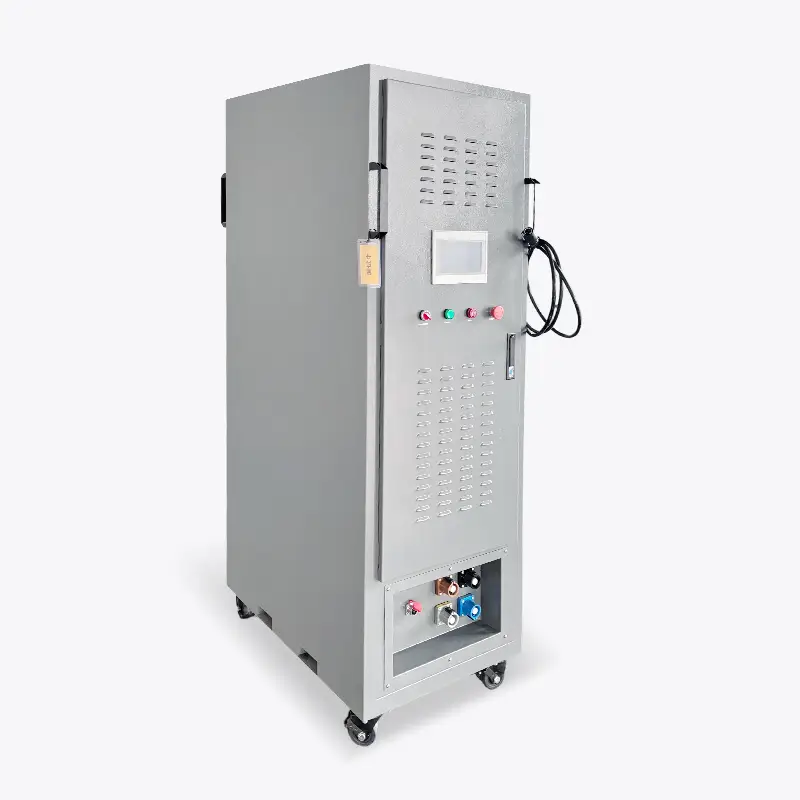

The Hydro240L is a high-power liquid-cooled AC programmable load bank designed for performance testing, burn-in, and maintenance of power sources such as generator sets, UPS systems, solar inverters, energy storage systems, and industrial electrical equipment.

Featuring an advanced closed-loop liquid cooling system, it delivers 240 kW of continuous load capacity with exceptional stability and low noise. Equipped with intelligent sensors and dual control interfaces (local HMI + remote PC), the Hydro240L ensures precise, reliable, and safe testing in demanding industrial environments.

Key Features

Liquid cooled 240kw AC load bank Portable 7

High-Efficiency Liquid Cooling Technology

The closed-loop cooling system enables continuous full-load operation without thermal derating. IP31-rated enclosure provides protection against dust and water splashes, making it suitable for harsh environments. Integrated flow, pressure, and temperature sensors allow real-time monitoring of coolant status, with alarm functions for enhanced safety.

Liquid cooled 240kw AC load bank Portable 8

Programmable Load Testing

Supports multiple testing modes: constant power, constant current, constant resistance, and dynamic loading. Customizable voltage standard options: 380V / 400V / 415V / 480V / 690V (three-phase). Fast response time and high step precision for simulating real-world load conditions.

Liquid cooled 240kw AC load bank Portable 9

Intelligent Dual Control & Data Management

Local 7-inch touchscreen for intuitive operation and real-time monitoring of electrical and cooling parameters. Remote PC software supports test sequencing, data logging, curve plotting, and automation integration. Customizable test reports to meet quality compliance and documentation requirements.

Compact & Industrial Design

Space-saving footprint (600×890×1755 mm) with rugged construction, suitable for workshop or outdoor use. Quick-connect terminals for power and control lines reduce installation time. Optional casters and leveling feet for easy mobility and positioning.

Enclosure drawings

Product Specifications

Model No.	Hydro240L
Power	240 kW
Testing voltage	3 phase 380/400/415/ 480/690Vac power lock connection
Control Method	Local touch screen + remote PC control
*Dimensions(WDH)*	6008901755
Weight	750 KGS
Enclosure IP Grade	IP23
Control Voltage	3 phases 380/400/415/480/690Vac quick connector
Sensor	Liquid flow volume sensor
	Liquid pressure sensor
	In-let / out-let temp. sensor

FAQ

How is the cooling system monitored and protected?

The Hydro240L is equipped with liquid flow sensors, pressure sensors, and inlet/outlet temperature sensors to ensure real-time monitoring of cooling performance and safe and reliable operation during continuous testing.

Is the load bank easy to operate and control?

Yes. The system supports local touchscreen operation for on-site testing; it also supports remote PC control for automated or integrated testing environments, providing flexibility to meet the needs of different projects.

Can the liquid-cooled load bank operate continuously under full load?

Yes. Liquid cooling provides efficient and stable heat dissipation, making the Hydro240L suitable for long-term full-load testing, such as burn-in testing, factory acceptance testing (FAT), and on-site commissioning.

Does the compact design help reduce installation space?

Absolutely. Its compact size, yet high power output, helps customers reduce footprint and simplify installation, especially in indoor environments with limited space.

What level of protection does the enclosure provide?

The load bank uses an IP23 rated enclosure, suitable for standard industrial environments. Additional protection or customization options are available for specific project requirements.

Can this liquid-cooled load bank be customized for specific projects?

Yes. RATA provides customized solutions, including power rating adjustments, voltage configurations, control interfaces, cooling system optimization, and integration with customer testing systems to meet various international project needs.
