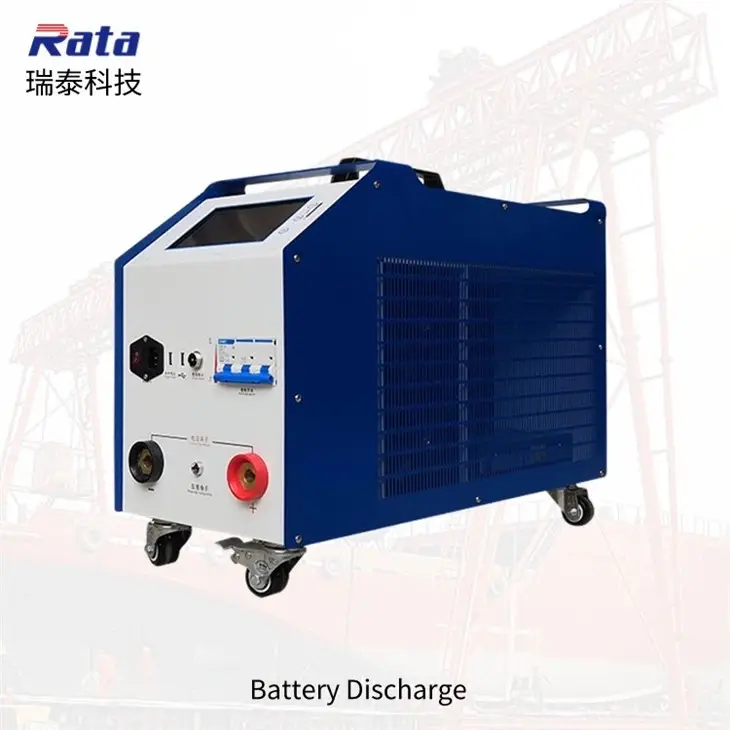

Rata BTS12/50 Battery Discharge Tester
BD60V/200A battery discharge tester can conduct real-time online monitoring on the battery pack and each single battery when the battery pack is in the state of online discharge, even charge and floating charge.
The high quality and good usability give the product an edge to compete in the global market.
Introduction
BTS12V/50A battery discharge tester can conduct real-time online monitoring on the battery pack and each single battery when the battery pack is in the state of online discharge, even charge and floating charge. The monitoring contents include: the voltage of the whole battery pack, the voltage of each single battery, the charge and discharge current of the battery pack, the monitoring time of the battery pack, the charge and discharge capacity of the battery pack and other indicators. BTS12V/50A battery discharge tester supports constant current and constant power discharge test modes: it can meet a variety of test requirements. When the battery capacity needs to be tested, the constant current discharge mode can be selected to accurately test the actual capacity of the battery pack; When the load capacity of the battery needs to be tested, the constant power test mode can be selected to accurately simulate the backup power supply time of the battery pack with real load.
Control system
The control of the load bank is divided into local manual control and remote PC control.
Supply list
|
Equipment components |
quantity. |
|
RT-BTS12/50 battery discharge tester |
1 |
|
Operation and Maintenance Instructions |
2 |
|
Acceptance certificate |
1 |
|
Inspection report |
1 |
|
Electrical schematic |
2 |
|
PC software |
1 |
Warranty period
2 years.
Standard
System design, production and service are strictly in accordance with the requirements of GB/t19001-2008 "Quality Management System", and refer to the following standards. The final production plan for the system shall be subject to the technical agreement agreed upon by both parties.
|
National standard |
|
|
GB/t2820.52009 |
A reciprocating internal combustion engine drives the alternator. Part 5: Generator Sets |
|
GB/t13032-2010 |
Marine diesel generator set. |
|
GB/t1029-2005 |
Test methods for three-phase synchronous motors. |
|
GB14711-2006 |
Safety requirements for small and medium rotating electrical machines. |
|
Military standard |
|
|
GJB 2815-97 |
General Specification for Military Internal Combustion Engine Loads |
|
GJB235a-97 |
General Specification for Military AC Mobile Loads |
|
GJB 235-87 |
General technical conditions for industrial and intermediate frequency mobile loads |
|
GJB 1488-93 |
General test method for military internal combustion engine load |
|
Industry Standard |
|
|
JB/t10303-2001 |
Technical conditions of power frequency diesel generator sets |
The product is able to meet the high quality requirements of many varieties of production.
Data sheet
|
Specifications |
DC12V/50A |
|
Full set of voltage resolution |
0.01V |
|
Voltage test accuracy |
0.5% |
|
Discharge current working range |
50A |
|
Constant current discharge voltage range |
12V: 9-15V |
|
Discharge current accuracy |
0.1A |
|
Current test accuracy |
1% |
|
Insulation interface |
Equipped with ground point |
|
Operating Voltage |
AC 220V±15% |
|
Cooling method |
Forced air cooling |
|
Modbus |
RS232 port and USB port |
|
Display method |
7-inch color LCD touch screen |
|
Size |
280mm*380mm*300mm |
|
Weight |
≤25kg |
More specifications
|
Rated voltage |
Input Voltage |
Discharge current |
Applicable battery pack voltage |
|
48V |
19-60V |
0-30A,50A,100A,150A,200A,300A, |
24V,36V,48V |
|
96V |
57-132V |
0-30A,50A,100A, 150A,200A,300A |
72V,96V,110V |
|
110V |
88-132V |
0-30A,50A,100A, 150A,200A,300A |
96V,110V |
|
220V |
176-264V |
0-30A,50A,100A, 150A,200A,300A |
220V,240V |
|
380V |
304-456V |
0-30A,50A,100A, 150A,200A |
380V |
|
480V |
384-600V |
0-30A,50A, 100A,150A |
480V |
