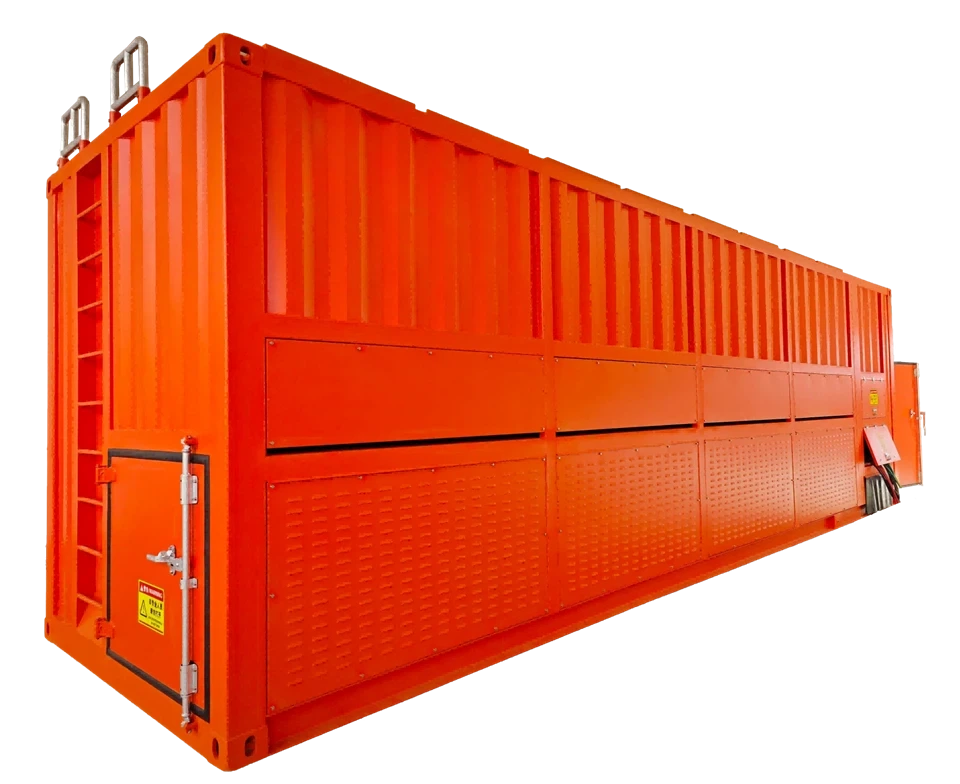

AC415V-3500kW RLC Load Bank
AC415V-3500kW RLC load bank, used in power, telecommunications, new energy, data centers, scientific research and education, industrial manufacturing and other industries.
Rata is quite attractive with its design.
Core strengths
Modular structure

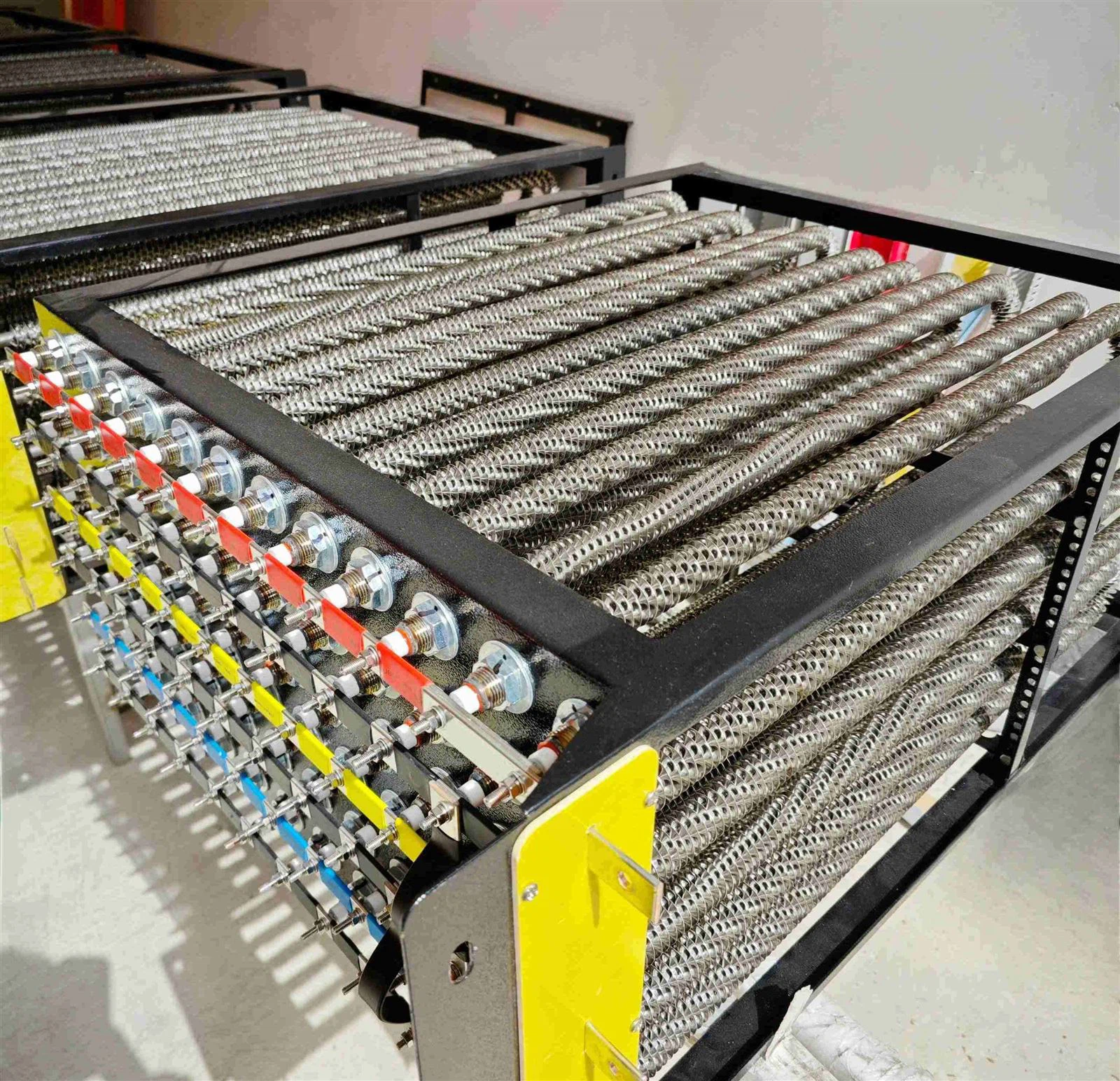

Adopting a new modular structure, it is divided into small modules with fixed power. When problems occur, they can be replaced in time without affecting the overall load.
Not afraid of the environment
With ventilation on the top, it can be loaded even in the rain, and can be operated in any weather
IP56 waterproof
IP56 waterproof, no fear of water ingress during operation in the rain, ensuring normal use of components
Multiple usage scenarios
Widely used in power, telecommunications, new energy, data centers, scientific research and education, etc.
Our Service
We are looking for a cooperative partner to expand our business.
quality assurance
The product is under warranty for 12 months from the date of receipt, and free repairs are provided during the warranty period. After the warranty period, lifetime paid repair services are provided at cost price.
Response speed
Timely response, within 2-10 hours (time difference limit).
On-site solution
If the problem needs to be solved on site, we will arrive at the site within 24-72 hours and will not leave until the problem is solved.
Free consultation
Permanent free technical consulting service.
Technical file storage
Save complete product technical documents for users.
System Consulting
If necessary, the seller will upgrade and refurbish the system at the most favorable price.
Rata is made in a sophisticated production unit and is impeccable in terms of craftsmanship.
|
Description |
|
|
Model No. |
X5000L |
|
Country of origin |
China |
|
Apparent power capacity |
5000 kVA |
|
Active power capacity(PF 1.0) |
4000 kW |
|
Rated testing voltage |
400 Vac |
|
Load step(Active power) |
100+200+200+500+1000*3KW |
|
Load resolution |
100kW |
|

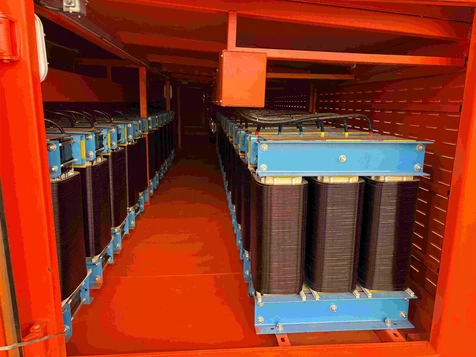

Reactive power capacoty(PF0.8) |
3000 kVAR |
|
Load step (Reactive power) |
10+20+20+50+100+100+150*18 KVAR |
|
Load resolution(Reactive power) |
10kVar |
|
Frequency |
50Hz. |
|
Phases wires |
3ph 4w |
|
Voltage Tolerance (Short Term Operation) |
+5% |
|
Load Element Tolerance |
≤+2.5% |
|
Insulation Test |
600 Vac |
|
Load Connections |
Copper busbars |
|
Protection |
Thermal emergency cut out |
|
Air flow switch |
|
|
Fan overload protection |
|
|
Emergency stop |
|
|
Control voltage |
3ph 400VAC 50/60HZ. |
|
Airflow volume(Approx. CMM) |
2700 CM/H *8 |
|
Airflow direction |
Vertical upwards air forced cooling |
|
Fans Nos. |
12 pcs . (4kW each) |
|
Load switching contactor type |
3 pole AC contactors |
|
Rated maximum ambient temp. operation |
+60°C / +140°F |
|
Rated minimum ambient temp. operation |
-20°C / -4°F |
|
Altitude rating |
≤2000 [m.a.s.l] or customized |
|

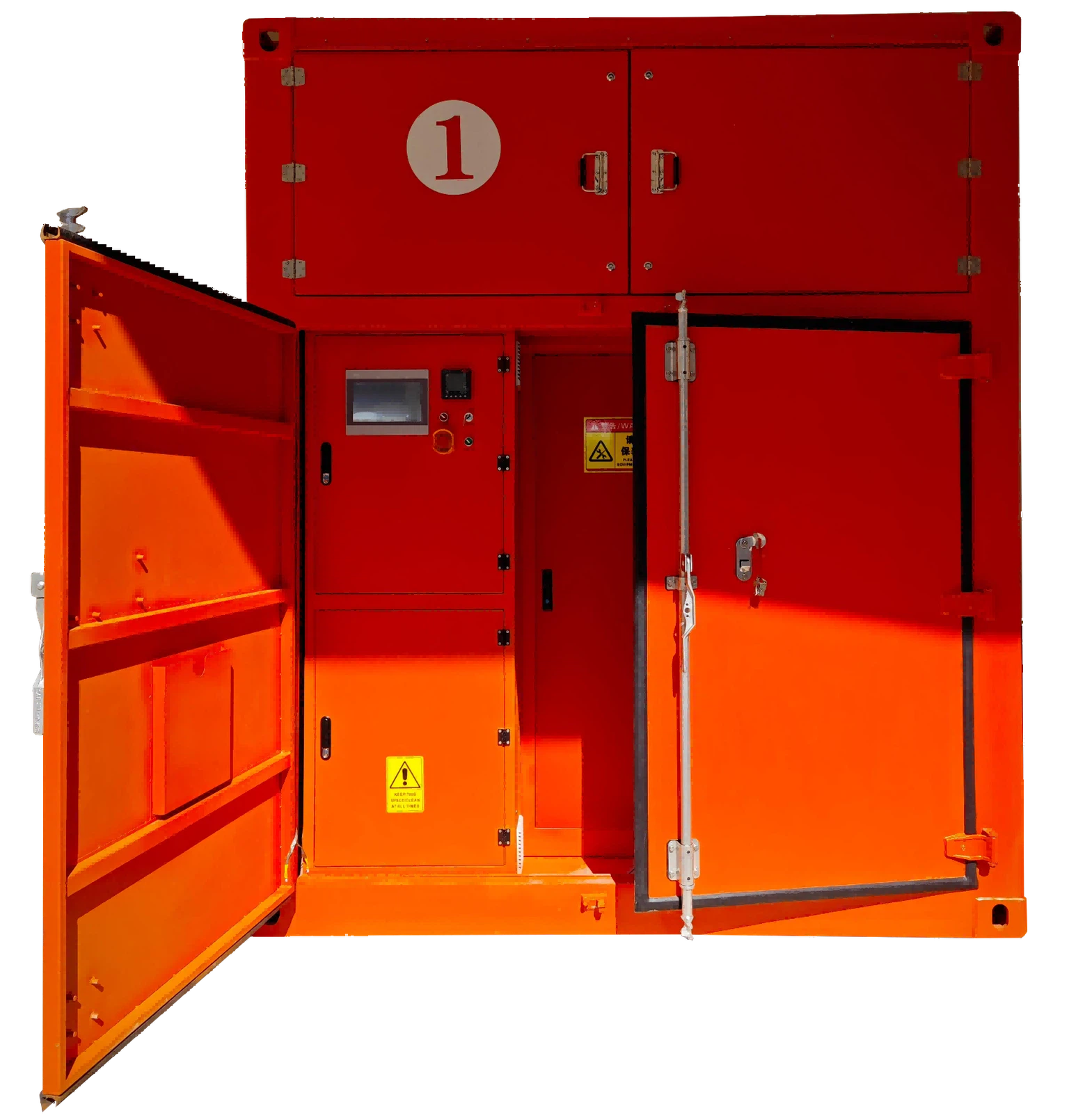

Control chamber IP rating |
IP 54 outdoor |
|

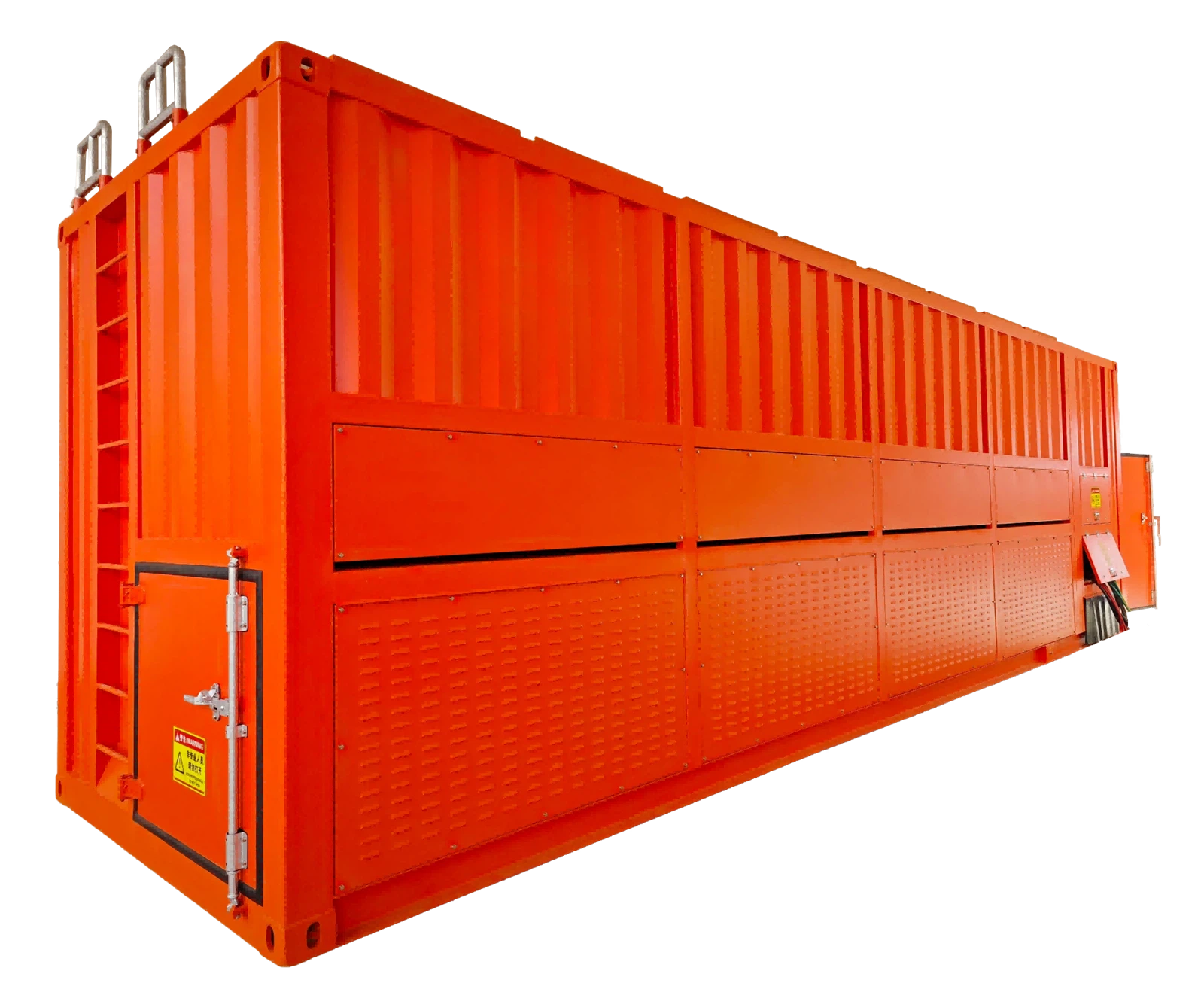

Enclosure material |
Containerised carbon steel with marine grade painting. |
|
Portabality |
Standard ISO lifting points |
|
Enclosure dimentions |
|
|
Length(mm) |
9500 |
|
Width(mm) |
2438 |
|
Height(mm) |
2800 |
|
Weight of load bank |
20000 Maximum |
