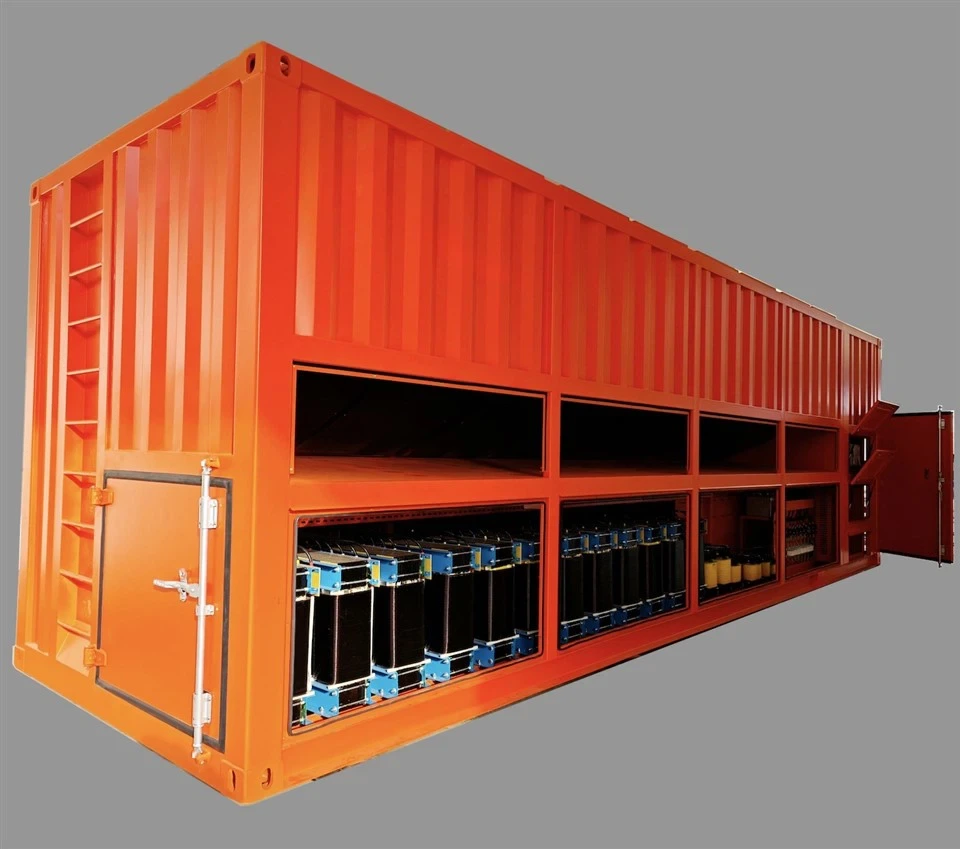

Containerized Load Bank 5000KVA
A CONTAINERIZED RESISTIVE AND REACTIVE LOAD BANK BEEN USED FOR LARGE CAPACITY GENERATOR TESTING AS WELL AS OTHER POWER GENERATION DEVICE.
fully implements ISO9001:2000 quality management system.
-
Outdoor 50,000 kVA 400V Resistive-Reactive Containerized Load Bank (PF 0.8)
This outdoor load bank is designed for high-capacity testing applications, featuring a combined resistive and reactive load configuration with a power factor of 0.8. Rated at 50,000 kVA and operating at 400V, it is ideal for simulating real-world load conditions for generators, UPS systems, and power distribution networks. The unit utilizes an air-cooled system with horizontal air intake and vertical exhaust, ensuring efficient heat dissipation and stable operation under demanding conditions. Its robust construction makes it suitable for outdoor environments, providing reliable performance and durability.
|
Description |
|
|
Model No. |
X5000L |
|
Country of origin |
China |
|
Apparent power capacity |
5000 kVA |
|
Active power capacity(PF 1.0) |
4000 kW |
|
Rated testing voltage |
400 Vac |
|
Load step(Active power) |
100+200+200+500+1000*3KW |
|
Load resolution |
100kW |
|
Reactive power capacoty(PF0.8) |
3000 kVAR |
|
Load step (Reactive power) |
10+20+20+50+100+100+150*18 KVAR |
|
Load resolution(Reactive power) |
10kVar |
|
Frequency |
50Hz. |
|
Phases wires |
3ph 4w |
|
Voltage Tolerance (Short Term Operation) |
+5% |
|
Load Element Tolerance |
≤+2.5% |
|
Insulation Test |
600 Vac |
|
Load Connections |
Copper busbars |
|
Protection |
Thermal emergency cut out |
|
Air flow switch |
|
|
Fan overload protection |
|
|
Emergency stop |
|
|
Control voltage |
3ph 400VAC 50/60HZ. |
|
Airflow volume(Approx. CMM) |
2700 CM/H *8 |
|
Airflow direction |
Vertical upwards air forced cooling |
|
Fans Nos. |
12 pcs . (4kW each) |
|
Load switching contactor type |
3 pole AC contactors |
|
Rated maximum ambient temp. operation |
+60°C / +140°F |
|
Rated minimum ambient temp. operation |
-20°C / -4°F |
|
Altitude rating |
≤2000 [m.a.s.l] or customized |
|
Control chamber IP rating |
IP 54 outdoor |
|
Enclosure material |
Containerised carbon steel with marine grade painting. |
|
Portabality |
Standard ISO lifting points |
|
Enclosure dimentions |
|
|
Length(mm) |
9500 |
|
Width(mm) |
2438 |
|
Height(mm) |
2800 |
|
Weight of load bank |
20000 Maximum |
-
Deyang Rata Technology offers highly customized load bank designing to meets customer's demanding .
1) The testing/ load voltage
2) Power capacity
3) Air cooling direction
4) Control power source
5) Power factor customizable
-
Building a load bank with our highly skilled technical team
It's always critical for our quality control before releasing the goods from our factory.
Around 40 tipsof checking would be done at FAT.
Package for delivery
1.What power ratings do your load banks support?
Our load banks range from a few kilowatts (kW) to multiple megawatts (MW), depending on customer requirements. (Example: from 10kW to 3000kW or higher, custom-built as needed.)
2. Can the load bank be customized?
Yes, we offer fully customized solutions based on voltage, frequency, load steps, cooling type (air or water), enclosure type (IP level), and control system (local/remote/PLC/SCADA integration).
3. What is the control method?
Our load banks support local manual control, remote control via PLC or computer, and even cloud-based monitoring if required.
4. What safety features are included?
Over-temperature protection
Emergency stop button
Short-circuit protection
Phase failure detection
Fan interlock and airflow monitoring
Voltage and current alarms
5. How often should a load bank be used for generator testing?
Typically, load bank testing is recommended at least once a year, or as part of your regular maintenance schedule depending on usage and industry regulations.
6. Do you provide onsite testing services?
Yes, we can provide onsite commissioning and testing services, along with technical support and operator training.
Aided by professional team, the service of is well-known in Rata industry.
|
Description |
|
|
Model No. |
X5000L |
|
Country of origin |
China |
|
Apparent power capacity |
5000 kVA |
|
Active power capacity(PF 1.0) |
4000 kW |
|
Rated testing voltage |
400 Vac |
|
Load step(Active power) |
100+200+200+500+1000*3KW |
|
Load resolution |
100kW |
|
Reactive power capacoty(PF0.8) |
3000 kVAR |
|
Load step (Reactive power) |
10+20+20+50+100+100+150*18 KVAR |
|
Load resolution(Reactive power) |
10kVar |
|
Frequency |
50Hz. |
|
Phases wires |
3ph 4w |
|
Voltage Tolerance (Short Term Operation) |
+5% |
|
Load Element Tolerance |
≤+2.5% |
|
Insulation Test |
600 Vac |
|
Load Connections |
Copper busbars |
|
Protection |
Thermal emergency cut out |
|
Air flow switch |
|
|
Fan overload protection |
|
|
Emergency stop |
|
|
Control voltage |
3ph 400VAC 50/60HZ. |
|
Airflow volume(Approx. CMM) |
2700 CM/H *8 |
|
Airflow direction |
Vertical upwards air forced cooling |
|
Fans Nos. |
12 pcs . (4kW each) |
|
Load switching contactor type |
3 pole AC contactors |
|
Rated maximum ambient temp. operation |
+60°C / +140°F |
|
Rated minimum ambient temp. operation |
-20°C / -4°F |
|
Altitude rating |
≤2000 [m.a.s.l] or customized |
|
Control chamber IP rating |
IP 54 outdoor |
|
Enclosure material |
Containerised carbon steel with marine grade painting. |
|
Portabality |
Standard ISO lifting points |
|
Enclosure dimentions |
|
|
Length(mm) |
9500 |
|
Width(mm) |
2438 |
|
Height(mm) |
2800 |
|
Weight of load bank |
20000 Maximum |
