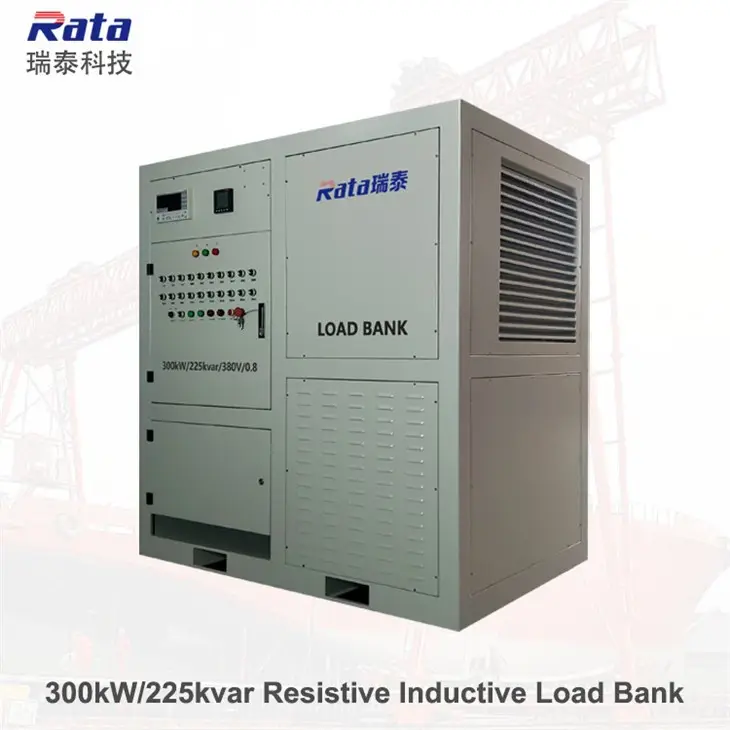

300kW/225kvar Resistive Inductive Load Bank
300kW/225kvar resistive inductive load bank generally used for generator load test.Indoor design and local panel control + remote PC control mode for client's choice.RJ45 commnucation interface for net cable connection.Support load data save and printing.
can provide customization service for Rata.
375KVA/300kW/225kvar Resistive Inductive Load Bank
Features
Local/Remote Control Mode
There is local/remote switch on the local panel for control mode choose.Remote control support load data save and priting.
Indoor design
Rata supplied indoor and outdoor design for the load bank based on client's application.
Resistor
8020 Ni-Cr alloy finned resistor used for the load bank,long time service life.
Inductor
3 phase inductor with aluminum core,temperature rise is low when load bank working.Even no use the fans for heat dissipation.
Reference Picture
Main Data Sheet
| Rated Power Capacity | 375KVA/300kW/225kvar; |
| Rated voltage | 400VAC,3 phase 4 wire,connected with tin plated copper bar; |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal; |
| Control mode | Local panel switching control + remote PC control mode,RJ45 interface for net cable connection; |
| Design | Indoor design with IP23; |
| Resistor | 8020 Ni-Cr alloy finned resistor; |
| Inductor | 3 phase inductor; |
| Cooling | Horizontal air discharge; |
| Movement | Forlift holes; |
| Size | 1800×1600×1600mm; |
| Weight | 1800kgs; |
| Packing | Wooden case and pallet. |
Rata is crafted from a combination of advanced technology and sophisticated equipment.
Data Sheet
|
Product name |
300kW/225kvar Resistive Inductive Load Bank; |
| Model number | RT375kVALB; |
| Design | Indoor design |
|
Rated power |
400VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control power | 380VAC,3 phase 4 wire,connected with terminal |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
| Inductive load steps | 1kvar resolution;1kvar+2kvar+2kvar+5kvar+5kvar+10kvar+10kvar+20kvar+20kvar+50kvar+100kvar; |
| Inductor | 3 phase inductor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1800mm*1600mm*1600mm (L*W*H) |
| Weight | 1800Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
