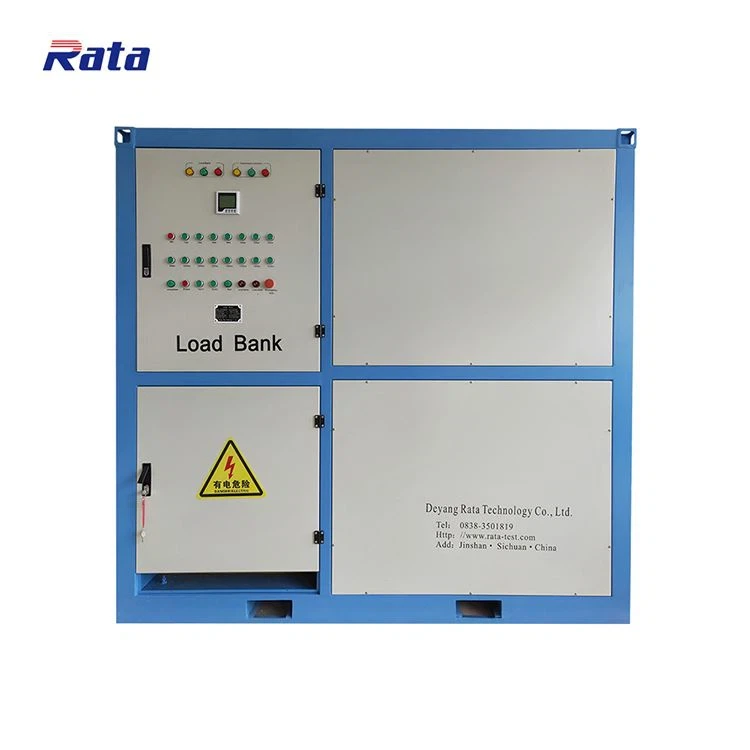

1 MW Load Bank
1MW load bank has the functions of static, fluctuation, sudden loading and unloading test of diesel generator set, real-time data acquisition, display, analysis, report and so on;
Rata is created by our highly skilled professionals.
PRODUCT OVERVIEW
1MW load bank has the functions of static, fluctuation, sudden loading and unloading test of diesel generator set, real-time data acquisition, display, analysis, report and so on; Data storage adopts local storage and centralized display in the center to ensure data integrity and safety; Provide visual display and automatic analysis of various data charts, and provide analysis results; The functions of generator setting test, fluctuation test and transient test (sudden load addition and sudden load unloading) can test the maximum and minimum voltage, maximum and minimum current, maximum and minimum frequency and recovery time in case of sudden load change; 1MW load bank can not only measure all steady-state parameters, but also measure sudden addition, sudden discharge, voltage, current, frequency curve, voltage and current harmonic curve and harmonic content; It can complete the measurement of all electrical parameters of the generator. Automatically generate various charts and manually make charts, curves and test reports. Standardized operation and strong authority. Rich data content, strong report applicability, and can sign and change the format according to the needs of users; It has the function of harmonic analysis, and can analyze the 2 ~ 50th harmonic content and total harmonic content of voltage and current at the same time; Electric energy accumulation function; The system can meet the test of national standard, ship standard, military standard and telecommunication standard, and the test accuracy can meet the standard requirements.
PRODUCT PICTURE
PRODUCT PICTURE
APPLICATION SCENARIO
PARTIAL PARAMETERS
Note: all parameters are for reference only and can be customized | |
Product name | 1MW load bank |
Specifications | R1000kW/400V/50Hz |
Formation | One load bank(Including dry resistance load, electrical control components, measurement and control system) |
Load step | According to customer needs |
Load connection | Copper bar |
Resistor | Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage ac 2000v for 5min Resistance error of each resistance tube:±3% |
Load control | Local manual control, local automatic control or remote automatic control can be selected |
Loading accuracy | Less than or equal to 3% |
Three phase balance | Unbalance degree less than or equal to 3% |
Minimum step | 1kW |
Working mode | Continuous work |
Load protection | Short circuit, overcurrent, high temperature, fan fault protection |
External power | TN-C,380V/50Hz |
Cooling mode | Forced air cooling, side air outlet or top air outlet |
Insulation class | F |
Measurement accuracy | The display accuracy is 0.5,the sampling accuracy is 0.2 |
Electrical parameter display | Three phase voltage, three-phase current, frequency, power, etc |
Load expansion | Parallel expansion of multiple load containers |
Standard | Meet international standard, ship standard, military standard and telecommunication standard |
Transport | The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
Color | Customized |
Ambient temperature | -20℃ to 50℃ |
Humidity | Up to 100% |
Altitude | Up to 2500m |
Atmospheric pressure | 86 to 106kPa |
MORE SPECIFICATIONS
Note: all parameters are for reference only and can be customized | ||||
Power(kW) | Voltage(kV) | Frequency(Hz) | Size(mm,L*W*H) | Weight(Kg) |
Low voltage | ||||
100 | 0.4 | 50 | 1100*900*1000 | 320 |
200 | 0.4 | 50 | 1350*1100*1100 | 450 |
300 | 0.4 | 50 | 1500*1200*1200 | 650 |
400 | 0.4 | 50 | 1700*1500*1500 | 830 |
500 | 0.4 | 50 | 1700*1600*1600 | 950 |
600 | 0.4 | 50 | 1800*1600*1600 | 1150 |
800 | 0.4 | 50 | 1900*1800*1700 | 1900 |
1000 | 0.4 | 50 | 2300*1700*2100 | 2100 |
1200 | 0.4 | 50 | 2500*1800*2200 | 2300 |
1500 | 0.4 | 50 | 2500*1860*2300 | 2600 |
1800 | 0.4 | 50 | 3000*2000*2300 | 4000 |
2000 | 0.4 | 50 | 3000*2000*2300 | 5000 |
2500 | 0.4 | 50 | 4000*2438*2500 | 6000 |
3000 | 0.4 | 50 | 6000*2438*2500 | 7000 |
Medium voltage | ||||
1000 | 6/10.5 | 50/60 | 3000*2438*2500 | 3500 |
1200 | 6/10.5 | 50/60 | 4000*2438*2500 | 3900 |
1500 | 6/10.5 | 50/60 | 4000*2438*2500 | 4500 |
1600 | 6/10.5 | 50/60 | 5000*2438*2500 | 5000 |
1800 | 6/10.5 | 50/60 | 5000*2438*2500 | 6500 |
2000 | 6/10.5 | 50/60 | 6000*2438*2500 | 7500 |
2200 | 6/10.5 | 50/60 | 6000*2438*2500 | 8000 |
2500 | 6/10.5 | 50/60 | 6000*2438*2500 | 10000 |
3000 | 6/10.5 | 50/60 | 7000*2438*2500 | 12000 |
4000 | 6/10.5 | 50/60 | 8000*2438*2500 | 14000 |
5000 | 6/10.5 | 50/60 | 9000*2438*2500 | 15000 |
6000 | 6/10.5 | 50/60 | 12000*2438*2500 | 16000 |
7000 | 6/10.5 | 50/60 | 12000*2438*2500 | 17000 |
8000 | 6/10.5 | 50/60 | 12000*2438*2500 | 18000 |
DESIGN DRAWINGS
TRANSPORT AND INSTALL
The top four corners of the load bank are provided with lifting holes and the bottom four corners are provided with rollers to facilitate loading, transportation and mobile installation.
SITE ACCEPTANCE AND AFTER-SALE SERVICE
Site acceptance
After the system, the Seller sends personnel to the site for complete function and load test acceptance, including the following:
(1) The Seller is responsible for the transportation of the system and ensures that all accessories of the system reach the place designated by the user before the agreed date.
(2) The Seller shall be responsible for the site installation and commissioning of the system. The site acceptance test shall be conducted in accordance with the technical agreement and the acceptance outline agreed by both parties (the test unit and fuel are provided by the user) and guaranteed to be delivered to the user before the agreed date.
(3) The Seller provides relevant training for the user's technical personnel to meet the daily work and maintenance needs of the system.
(4) During the training, the Seller assigns experienced technical personnel as guidance, and develops a detailed training outline for theoretical and practical content (to provide electronic training courses and materials).
(5) Ensure that the trained personnel understand the working principle, operation methods, precautions, various abnormal response methods and daily maintenance methods of the system.
After-sale service
The Seller undertakes to provide lifetime technical services, including the following:
(1) The system quality assurance period is calculated from the date of system acceptance for the period of 3 years.
(2) The Seller shall provide technical support for any quality problems of the system during the warranty period.
(3) After users encounter problems, they guarantee to reply within 2 hours.
(4) If technical personnel need to send to the site to solve the problem, the Seller shall ensure to arrive at the site within 7 working days. The service personnel shall not evacuate before the problem is resolved.
(5) Users can permanently enjoy a free technical consultation service.
(6) Save a complete product technical profile for the user.
(7) After the end of the 3-year warranty period, provide users with a lifetime paid maintenance service, only the cost.
(8) The Supplier shall provide a cost price list of conventional parts, such as resistors and contactors.
(9) If necessary, the seller will upgrade the system for the user at the best price.
