150kw Load Bank

PRODUCT OVERVIEW

In the communication industry, power supply is usually compared to the heart of communication system. The management departments of communication operators have paid attention to the maintenance of communication power supply from the perspective of ensuring quality, production safety and property safety. According to the latest investigation of many grass-roots maintenance staff, At present, the common maintenance technical problem in the maintenance of communication power supply is that the detection of output power and load capacity of various generators and UPS equipment has not been carried out effectively and smoothly. Rata 150KW load bank can accurately test the output power and load capacity of various generator sets and UPS equipment, The randomly equipped analysis software can record various data changes in the whole test process and automatically generate test reports, which is convenient to establish management files of equipment operation status.

Prominent applications of 150KW load bank include:

Test the output power and load capacity of UPS equipment

During the project acceptance of newly installed UPS equipment, check whether the output power of UPS equipment and battery can meet the design requirements.

Daily maintenance and routine inspection of UPS equipment. According to the requirements of the newly issued communication power supply maintenance regulations, UPS equipment shall be inspected every year

Conduct checking discharge test

Test the output power and load capacity of diesel generator

Check whether the newly installed diesel generator can meet the design requirements during the project acceptance

After the diesel generator is equipped with noise reduction equipment such as muffler, check whether its output power can meet the operation needs of communication equipment.

After the diesel generator is repaired, check whether its output power, load capacity and other performance indexes meet the requirements

Daily maintenance and routine inspection of diesel generator. According to the newly issued maintenance regulations of communication power supply, the diesel generator shall be loaded and tested for 15-30 minutes every half a year.

Test the output power and load capacity of communication AC equipment such as AC voltage regulator, inverter and switching power supply

The main functions of dry load bank, load resistance bank and adjustable resistance Bank: the test data of important parameters such as power, voltage, current, frequency and temperature can be seen at a glance to help users effectively carry out scientific acceptance of UPS, generator and other AC equipment.

The high-precision measurement function makes the test report more authoritative and the equipment management archives more scientific.

Backlit LCD display, displaying various parameters and real-time test data.

Constant power discharge value can be set (no segment type). All high-efficiency electric heating elements meet UL safety specifications

With fan fault detection, overvoltage, overcurrent, leakage and other protection functions

It can discharge multiple parts in parallel to adapt to the occasion of high current discharge

Chinese window interface display, simple operation, with USB, RS232 and RS485 communication interfaces, can be connected with PC for control, and display voltage, current and other parameter curves and tables

The host has built-in memory, and the storage records can be read with USB flash disk. A single machine can work without carrying a computer; You can print the report by computer in the future

With voltage and current calibration and correction function, the measured value of the instrument can be calibrated and corrected at any time to ensure the measurement accuracy

With power down saving function. All test data will not be lost after power failure. Continue to work after power on to prevent accidental power failure and obtain complete test results

With data analysis software, analyze and print the discharge curve, automatically generate the test report, and can be exported to excel

Discharge termination voltage can be set

Discharge termination time can be set

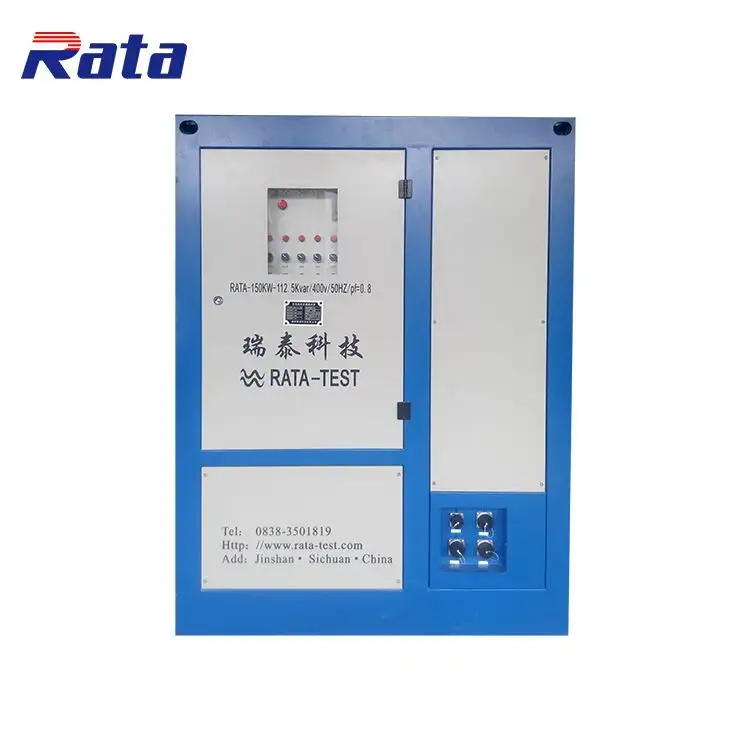

PRODUCT PICTURE

APPLICATION SCENARIO

PARTIAL PARAMETERS

MORE SPECIFICATIONS

TRANSPORT AND INSTALL

The top four corners of the load bank are provided with lifting holes and the bottom four corners are provided with rollers to facilitate loading, transportation and mobile installation.
