15kW Load Bank R15kW/264V/50Hz Generator Set Test Load Device

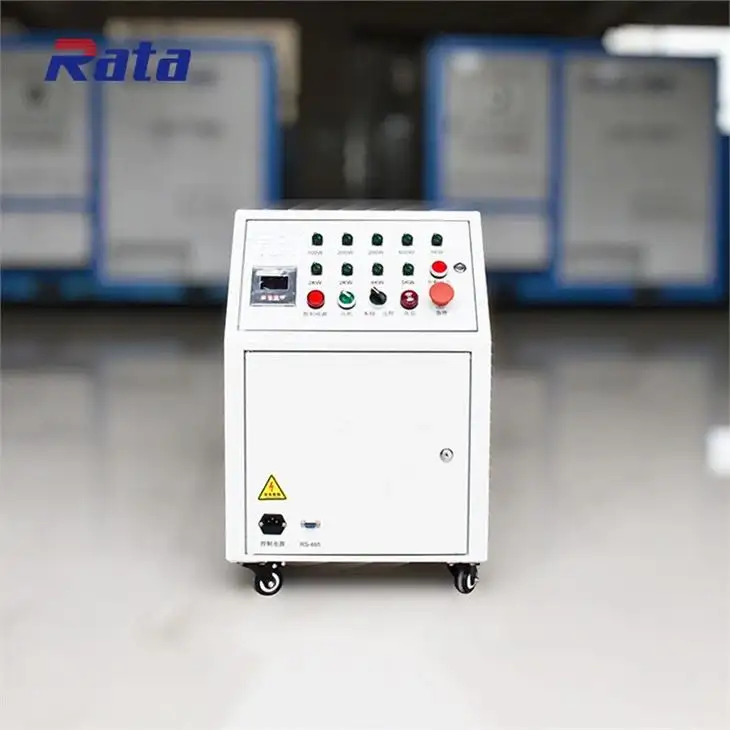

R15kW/264V/50Hz load bank is a generator set test load device customized by our company according to customer requirements in April 2022. The rated power is 15kW, the rated voltage is AC 264V, the rated current is 42A, and the weight is about 55Kg. The UPS load box control mode includes local manual control and remote upper computer automatic control.
may be the most professional Rata manufacturer.
Introduction
R15kW/264V/50Hz load bank is a generator set test load device customized by our company according to customer requirements in April 2022. The rated power is 15kW, the rated voltage is AC 264V, the rated current is 42A, and the weight is about 55Kg. The UPS load box control mode includes local manual control and remote upper computer automatic control.
Control system
The control of the load bank is divided into local manual control and remote PC control.
Supply list
|
Equipment components |
quantity. |
|
15kW/AC264V/50Hz/PF=1.0 |
1 |
|
Operation and Maintenance Instructions |
2 |
|
Acceptance certificate |
1 |
|
inspection report |
1 |
|
Electrical schematic |
2 |
|
PC software |
1 |
Standard
System design, production and service are strictly in accordance with the requirements of GB/t19001-2008 "Quality Management System", and refer to the following standards. The final production plan for the system shall be subject to the technical agreement agreed upon by both parties.
|
National standard |
|
|
GB/t2820.52009 |
A reciprocating internal combustion engine drives the alternator. Part 5: Generator Sets |
|
GB/t13032-2010 |
Marine diesel generator set. |
|
GB/t1029-2005 |
Test methods for three-phase synchronous motors. |
|
GB14711-2006 |
Safety requirements for small and medium rotating electrical machines. |
|
military standard |
|
|
GJB 2815-97 |
General Specification for Military Internal Combustion Engine Loads |
|
GJB235a-97 |
General Specification for Military AC Mobile Loads |
|
GJB 235-87 |
General technical conditions for industrial and intermediate frequency mobile loads |
|
GJB 1488-93 |
General test method for military internal combustion engine load |
|
Industry Standard |
|
|
JB/t10303-2001 |
Technical conditions of power frequency diesel generator sets |
The product has a competitive advantage in quality and price.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
15kW load bank |
|
Specifications |
R15kW/264VAC/50Hz |
| Rated current | 42A |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
100W, 2*200W, 500W, 1kW, 2*2kW, 4kW, 5kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage ac 2000V for 5min Resistance error of each resistance tube:±3% |
|
Load control |
Local automatic control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
100W |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple load |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 600mm*420mm*560mm (L*W*H) |
| Weight | 55Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
