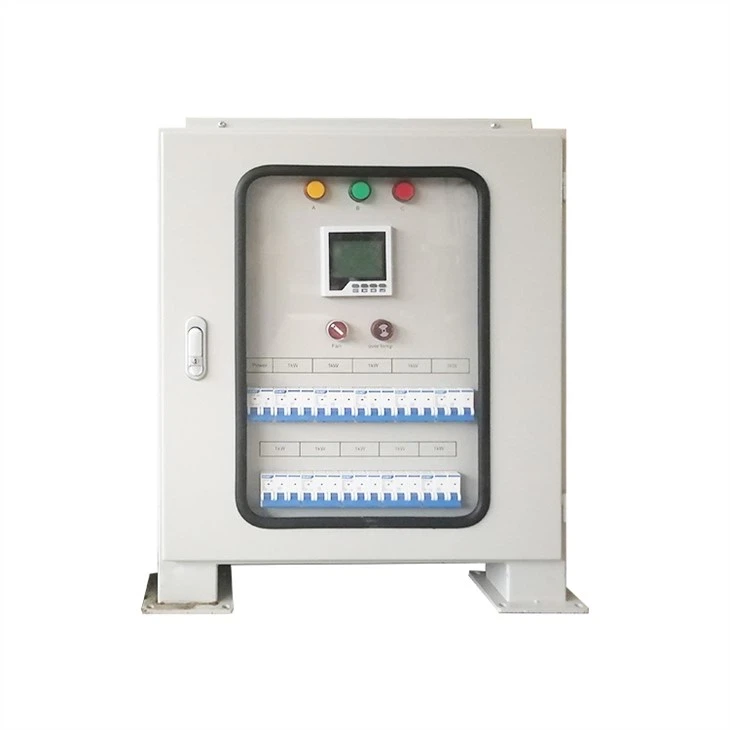

15kw Portable Load Bank
Rated capacity: 15kW (415 / 240VAC), three-phase, 21A per phase. Standard voltage: 415 / 240VAC (+12% maximum, no minimum). Duty cycle: rated value of continuous test operation of generator. Total load tolerance: 0 to +5%. Load connection: 8 'pigtail power cable. Load step resolution: 5kW at...
strictly controls the quality and performance of the product.
Rated capacity: 15kW (415 / 240VAC), three-phase, 21A per phase.
Standard voltage: 415 / 240VAC (+12% maximum, no minimum).
Duty cycle: rated value of continuous test operation of generator.
Total load tolerance: 0 to +5%.
Load connection: 8 'pigtail power cable.
Load step resolution: 5kW at 416 / 240VAC 3Ph.
Load step: 5 and 10kW each at 416 / 240 VAC 3 pH (total 15KW).
Operator friendly control panel:
Status indicator: airflow indicating red and green lights
Fan on / off switch (includes separate fan power switch if optional digital metering is selected)
Main load switch
Independent load step switch
Test sockets for instrument probes A, B, C and N
Safety function:
All three phases of load stepping are protected by fast branch circuit fuse.
Fused 110-120V control circuit
An air pressure switch for preventing a load from being applied when a loss of cooling air is detected.
If an overtemperature condition is detected, the overtemperature sensor automatically removes the load.
The blower motor circuit is protected by the current overload protection device.
There are operator warnings and caution statements on access panels and doors.
Control power supply:
The control circuit needs 110-120 VAC, 1 phase, 50 / 60Hz for operation, and the power line is provided.
Cooling system:
Integral installation, high speed, 110-120V AC 1 phase 50 / 60 Hz. The fan provides the necessary cooling air for the resistor load element.
Load bank structure:
Solid all metal frame structure
Durable powder coating
Handle
Stainless steel external fasteners
Horizontal air flow
Front control shield / handle
Device size: About 12-14 inches wide x 18 inches long x 22 inches high
Weight: about 40 pounds.
With the careful inspect from our dedicated and skilled crew of quality controllers at every step of production, the performance of this product remains exceptional with zero manufacturing defects.
