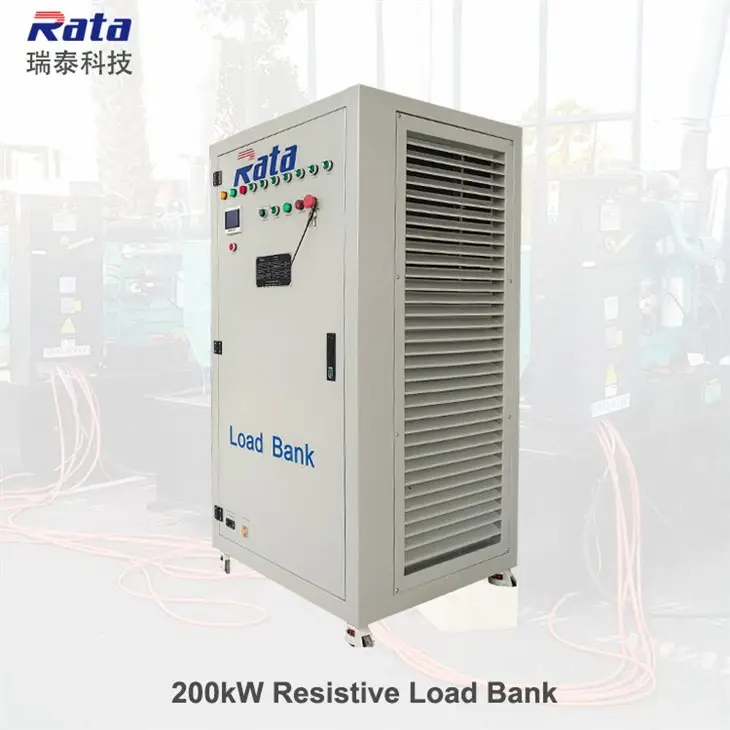

200kW Resistive Load Bank
200kW 3 phase AC air cooling resistive load bank generally used for generator load test.Indoor design,Q235 rolled steel for load bank enclosure,local panel switching control mode and remote PC control mode,universal wheels for movement.
The fame of is widely increasing for its high quality Rata.
why choose us
lt is awesome to work with creative/amazingy organized,easy to communicate with.Responsive with next iterations,and beautiful work.
After Sales Service
Rata supply 7×24 hours after sales service,in order to make sure your after-sales problems can be responded to quickly.
Certificates
We obtained CE, ISO9001, ISO14001, ISO45001 and SGS quality certificate and owned independent export rights.
OEM/ODM
We can accept OEM and ODM service, custom your own design, logo and color.
PARTNERS
ABB,Schneider, Omron,Siemens Phoenix contact, Delixi
Rata is supplying 200kW load bank with indoor/ourdoor design used for generator load testing. The load bank can be operated by local panel switches and remote PC with operation software.The communication interface is RJ45. Load power source connected by tin plated copper bar,control power source connected by quick connector. The control power can be 230V,1 phase 2 wire.Universal wheels design for movement;Horizontal air dischage,forced air cooling.
01
Control Mode
Local panel switching control mode + remote PC control with software for choice
02

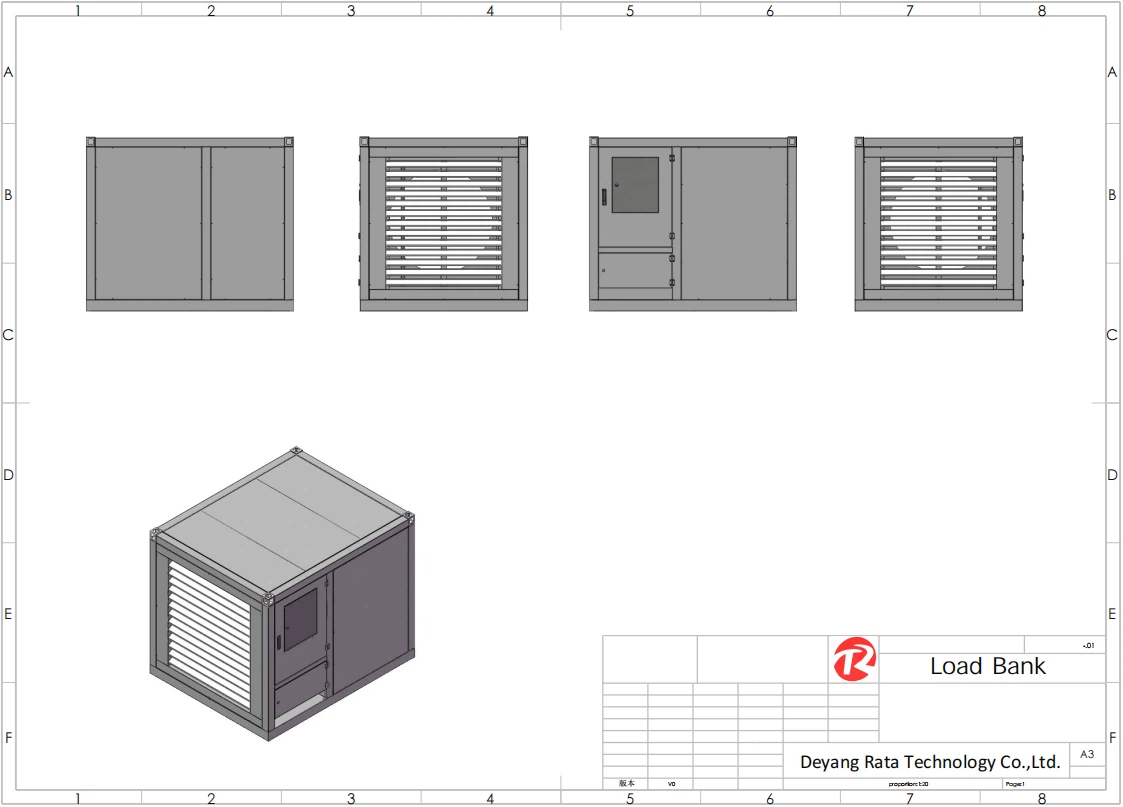

Indoor/Ourdoor Design
We supply indoor and outdoor design for 200kW resistive load bank
03
Forced Air Cooling
Horizontal aire discharge, forced air cooling,noise less than 85dB in 3m distance
04
Custom Service
We supply customized service for logo,color,load steps and others.
Reference Pictures
Load bank packing
Load banks(Power capacity less than 1500kW) will be packed with wooden case and wooden pallet for transportation.
Our Partners
Our load bank main parts are the first level brand in the internal market and cooperated well during past 11 years. Good quality parts can make sure the load bank has good quality and long time service life base on the regular maintenance and normal operation.
The quality of the product is maintained to meet the industry set norms and regulations by our strict quality management system.
Data Sheet
|
200kW Resistive Load Bank Data Sheet |
|
|
Product name |
200kW resistive load bank; |
| Model number | RT200kWLB; |
| Design | Indoor or outdoor design; |
|
Rated power |
Customized voltages are available; connected by tin plated copper bar; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 1000mm*850mm*1250mm (L*W*H) |
| Weight | 250Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
