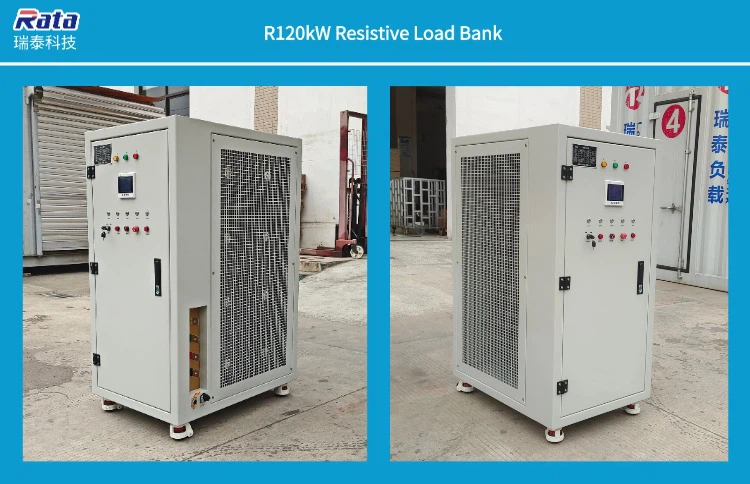

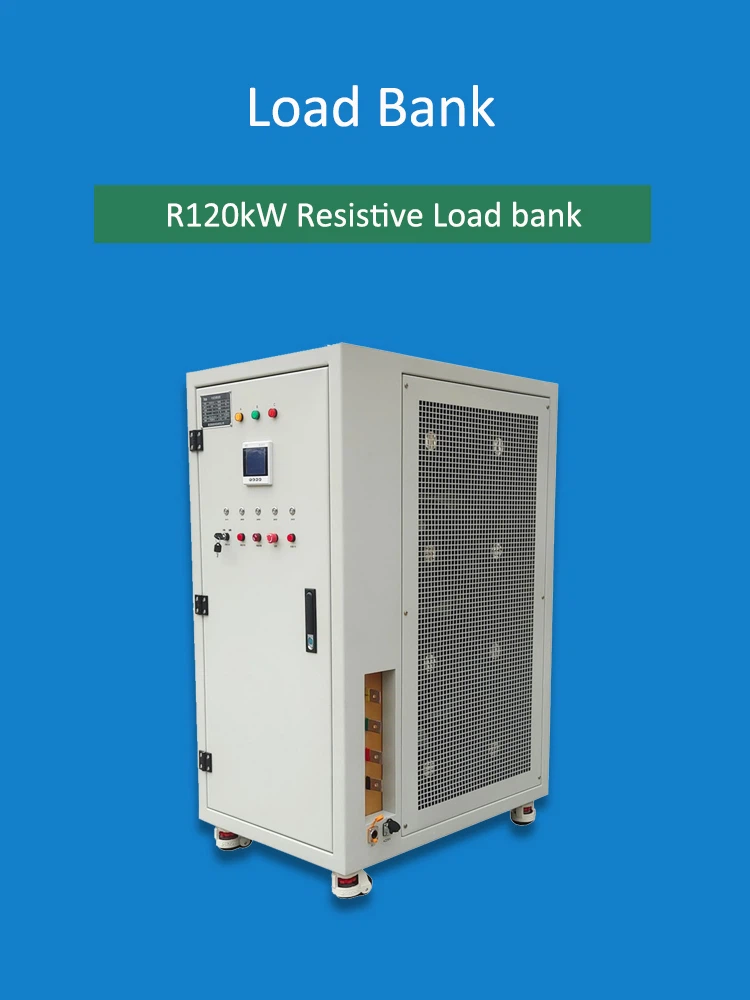

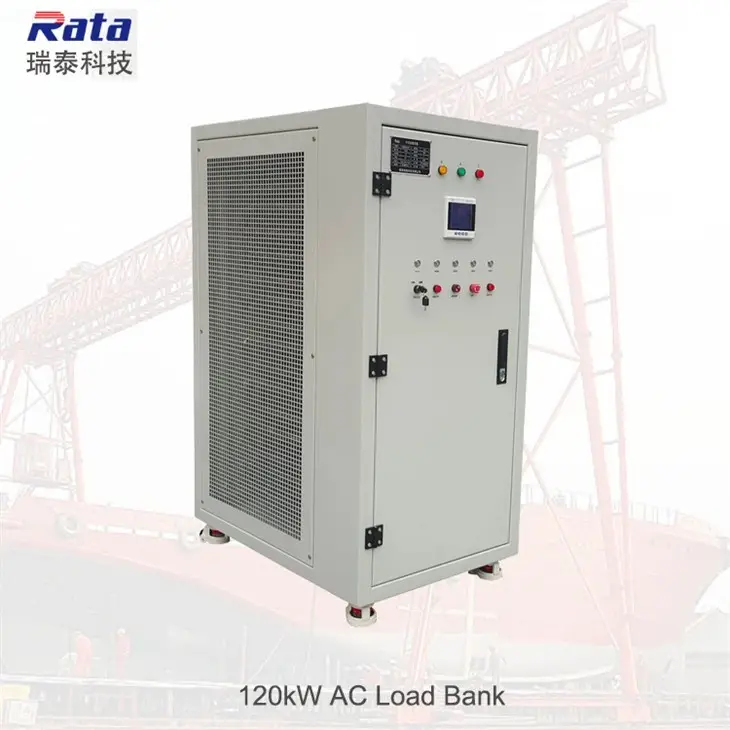

120kW Load Bank
Rata 120kW load bank designed as indoor application,local panel switching control and remote PC control,universal wheels installed for movement.
Rata is manufactured using quality raw materials and advanced production technology.
Products Description
Rata 120kW load bank designed as indoor application,local panel switching control and remote PC control,universal wheels installed for movement.Power cables connected with copper bar and quick connector.
Main Data Sheet
|
120kW Resistive Load Bank |
|
|
Product name |
120kW resistive load bank; |
| Model number | RT120KWLB; |
| Design | Indoor design |
|
Rated power |
AC 380V,400V,415V,440V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
24kW resolution;24kW+24kW+24kW+24kW+24kW; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 600mm*650mm*960mm (L*W*H) |
| Weight | 130Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
packing and Delivery
R120kW resistive load bank packed with wooden case and pallet.
The detailed size for Rata depends on our cutsomers' final decision.
