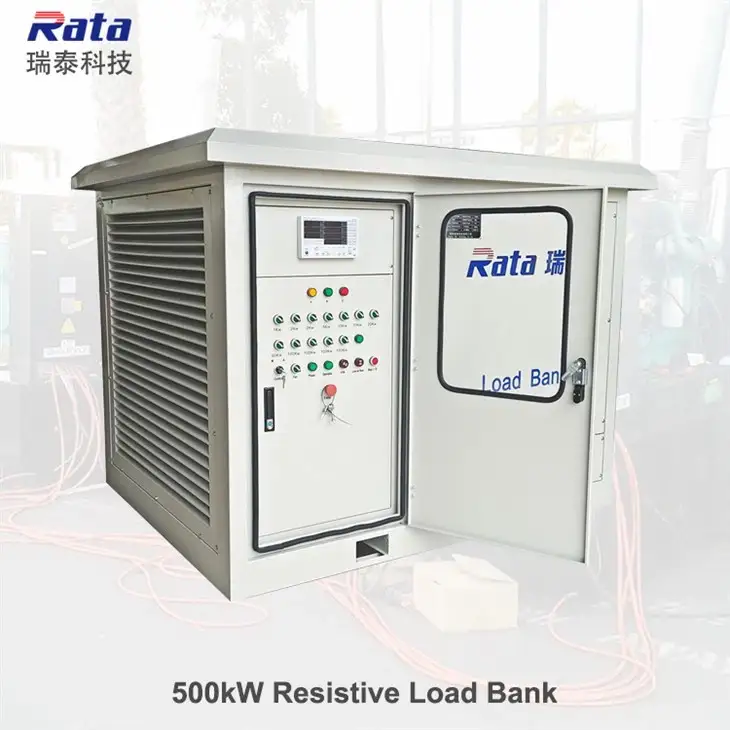

500kW Resistive Load Bank Canopy design for outdoor/indoor
Rata-R500kW generator load bank is a full resistive load bank developed and produced by our company. The power factor is 1.0 and meets the indoor or outdoor application. Customized voltage is available. Support local panel control and remote PC control mode choice.
The color in Rata is not easy to fade.
Professional Load Bank Manufacturer in China
Deyang Rata Technology Co.,Ltd specializes in producing resistive load banks, resistive inductive load bank, rack mounted load bank,DC load banks. During last 11 years,our load banks has been exported to America, Korea, Kazakhstan, India, Pakistan, Singapore, Indonesia, New Zealand, Iraq, Hungary, Denmark, Slovenia, Rwanda, Chile, Peru, Brazil and other countries and regions.
competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Rata supply 7×24 hours after sales service,in order to make sure your after-sales problems can be responded to quickly.
We can accept OEM and ODM service, custom your own design, logo and color.
We obtained CE, ISO9001,ISO14001, ISO45001 and SGS quality certificate and owned independent export rights.
ABB,Schneider, Omron,Siemens Phoenix contact, Delixi
500kW Load Bank
500kW resistive load bank is a device used to test and evaluate the performance of power supply equipment, generator, UPS systems, and other equipment. It is mainly composed of resistive loads and can simulate various power loads to meet the full load detection needs of different devices. Canopy design enable the 500kW load bank can be used indoor and outdoor.Local panel switching control mode and remote PC control mode with software for different client's choice.
Data Sheet
|
500kW Resistive Load Bank |
|
|
Product name |
500kW resistive load bank; |
| Model number | RT500KWLB; |
| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×4; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes / univesal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 1850mm*1500mm*1550mm (L*W*H) |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
Supply List
| Description | Qty |
| 500kW load bank | |
| Factory test report | 1 |
| Wiring diagram | 1 |
| Maintenance and operation manual | 1 |
| Operation software(remote control) | 1 |
| Supper 6 category net cable(remote control) | 50~100m |
Our Partners
Our load bank main parts are the first level brand in the internal market and cooperated well during past 11 years. Good quality parts can make sure the load bank has good quality and long time service life base on the regular maintenance and normal operation.
Load Bank Maintenance
1) After the equipment is used for half a year, the interior of the equipment should be treated with dust and cleaned with a vacuum cleaner. In the case of a harsh operating environment, the maintenance interval of the equipment should be appropriately shortened.
2) During the use of the equipment, the fan will vibrate slightly. After 2000 hours of use, the fan fixing parts should be reinforced.
3) If paint damage is found on the equipment, it should be repaired in time.
After Sales Service/technical Support
The seller promises to provide lifelong technical services, including the following:
1) The system quality assurance period starts from the date of system acceptance and lasts for 12 months.
2) The seller shall provide free maintenance for any quality problems that occur within the warranty period of the system.
3) After encountering problems, users are guaranteed to respond within 2-10 hours (time difference limit).
4) If it is necessary to dispatch technical personnel to the site to solve the problem, the seller shall ensure that they arrive at the site within 24-72 hours. Service personnel shall not evacuate until the problem is solved.
5) Users can permanently enjoy free technical consulting services.
6) Save complete product technical files for users.
7) After the end of the 12 month warranty period, we provide users with lifelong paid maintenance services at a cost only.
8) If necessary, the seller will upgrade and renovate the system for the user at the most favorable price.
9) You can contact the seller if any question you have.
