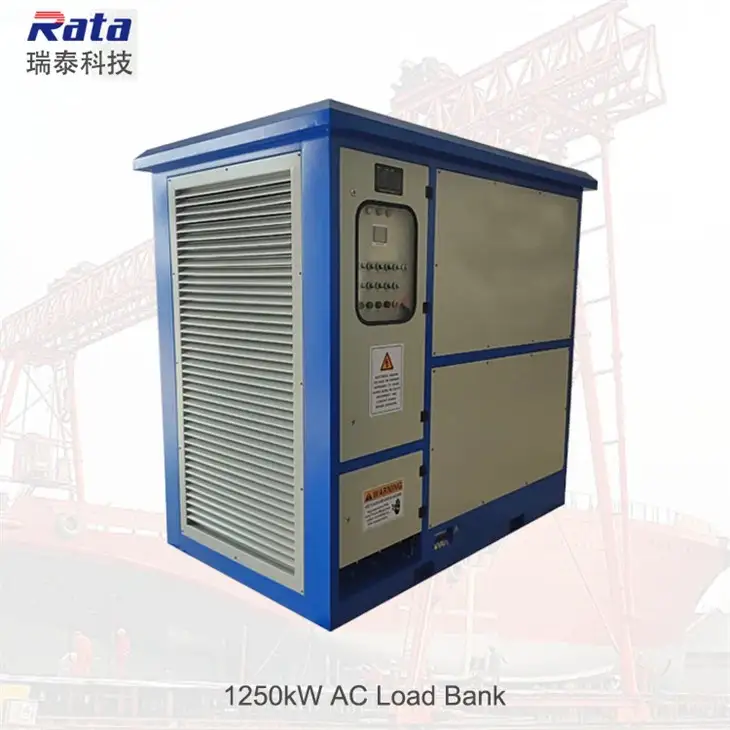

1250kW Resistive Load Bank, AC 3phase Outdoor Design for generator load testing
1250kW resistive load bank was designed as outdoor application,local panel switching control mode based on client's requirement.Load power cable connected with tin plated copper bar,control power cable connected with terminal.1250kW resistive AC 3phase load bank used for generator load testing.
The design of Rata is appealing and is carefully designed by our designers.
Products Description
1250kW resistive load bank was designed as outdoor application,local panel switching control mode based on client's requirement.Load power cable connected with tin plated copper bar,control power cable connected with terminal.1250kW resistive AC 3phase load bank used for generator load testing.
Reference Picture
Main Data Sheet
| Rated power | 1250kW(resistive only) |
| Rated voltage | 415VAC,3 phase 4 wire,connected with copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal |
| Control mode | Local panel switching control mode |
| Design | Outdoor design with canopy |
| Resistor | 8020 Ni-Cr alloy finned resistors |
| Cooling | Horizontal air discharge with axial fan,noise less than 85dB in 3m |
| IP rating | IP54,local panel with cover for water proof |
| Size | 2220×1420×2100mm |
| Weight | 1850kgs |
Packing and Delivery
1250kW load bank packed with wooden case and pallet,can be export.
Load bank can be exported from any China port,mainly from Shanghai port,China.
Certificates
Rata obtained CE,ISO9001:2015,ISO14001:2015,ISO45001:2018 for load banks.
Enquiry
It would be best that you enquiry include following information for us to supply you precise quotation and data sheet:
1) Voltage and frequency
2) Indoor or outdoor use
3) Local panel switching control mode or remote PC control mode
4) FOB price or other price term you prefer
will consistently execute good customer service.
Data Sheet
|
1250kW Resistive Load Bank Data Sheet |
|
|
Product name |
1250kW resistive load bank; |
| Model number | RT1250kWLB; |
| Design | Outdoor design with canopy; IP54 |
|
Rated power |
Customized voltages are available; connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
Options 1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+50kW+100kW×11 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Forklift holes |
|
Color |
Customized RAL color |
| Dimensions | 2220×1420×2100mm(L*W*H) |
| Weight | 1850Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
