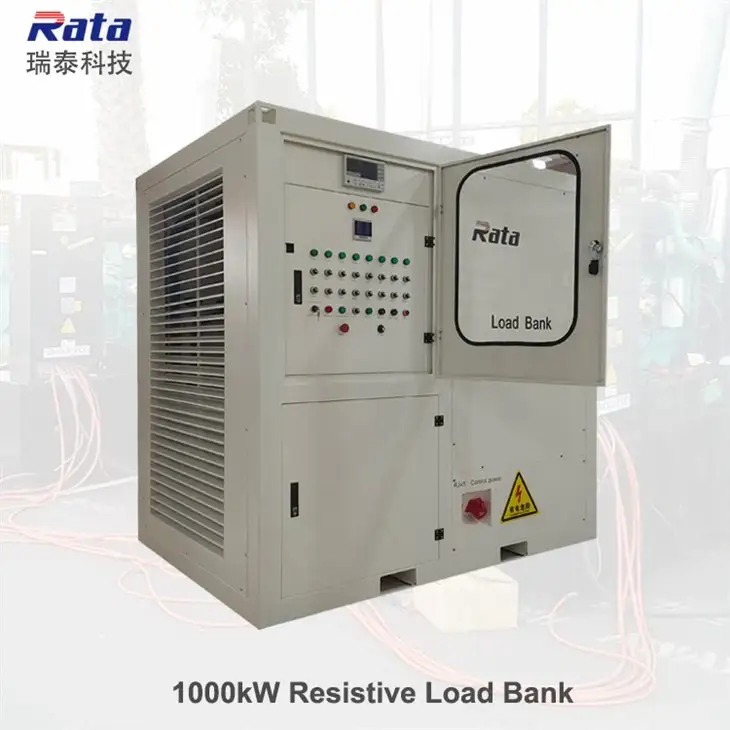

Load Bank for Generator Load Test

Effect

1. Performance verification: Verify key performance indicators such as output stability, voltage and frequency quality of the generator set under different load conditions.

2. Ensure reliability: By running under load for a long time, identify potential faults and weak links, and ensure their reliability in actual use.

3. Detection protection function: Verify whether various protection mechanisms such as overload protection and short circuit protection can function properly.

Main points

1. Load gradient setting: Gradually increase from low load to high load, comprehensively monitor the performance of the generator set at different load levels.

2. Duration: Conduct a certain duration of testing to fully assess the continuous working ability of the generator set.

3. Dynamic loading: Simulate sudden changes in load and evaluate its dynamic response capability.

4. Power factor adjustment: Change the power factor of the load and observe the adaptability of the generator set to different power factor loads.

5. Temperature monitoring: Monitor the temperature changes during the operation of the generator set to ensure good heat dissipation.

6. Record data: Record key data such as voltage, current, frequency, power, etc. in detail during the testing process for analysis and evaluation.

7. Comparison with standards: Compare the test results with relevant standards and specifications to determine if they meet the requirements.

1. Power matching: The power range of the load bank should be able to cover the power of the generator set, with a certain margin left to meet the testing requirements.

2. Load type: A load bank with suitable combinations of resistance, inductance, capacitance, and other load types should be selected according to actual needs to simulate real load conditions.

3. Accuracy and stability: Ensure that the load bank can provide accurate and stable loads, and ensure the reliability of test results.

4. Adjustable: able to flexibly adjust parameters such as load size and power factor to adapt to different testing scenarios.

5. Portability and installation convenience: If you need to move frequently or use it in different places, consider its portability and ease of installation.

6. Control mode: With a convenient and easy-to-use control interface and operation mode, it is convenient for testing, setting, and monitoring.

7. Data recording and analysis function: It can record key data during the testing process and has certain data processing and analysis functions to evaluate the performance of the generator set.

8. Quality and reliability: Choose products with reliable and durable quality to reduce the risk of failure.

9. After sales service: Good after-sales service can ensure that problems encountered during use can be resolved in a timely manner.

10. Budget: Choose products with high cost-effectiveness based on your own budget.

1. Test purpose: Clarify whether to verify performance, test reliability, evaluate specific functions, or meet regulatory requirements.

2. Load capacity: Ensure that the capacity of the load bank can cover the full load of the generator set and the requirements of different load levels.

3. Load type: Based on actual application scenarios, consider the proportion of different types of loads such as resistive, inductive, and capacitive.

4. Power factor: It is necessary to be able to simulate load conditions with different power factors to comprehensively evaluate the generator set.

5. Loading modes: such as linear loading, stepped loading, dynamic loading, etc., to adapt to different testing needs.

6. Test duration: Sufficient testing time to observe the stability and durability of the generator set.

7. Environmental conditions: including temperature, humidity, altitude, etc., as these can affect the performance of the generator set.

8. Cooling system: Ensure that the cooling system of the generator set can effectively cope with the heat generated during load testing.

9. Voltage and frequency range: It should cover the voltage and frequency range that the generator set may operate.

10. Protection function test: Verify whether the functions of overload protection, short circuit protection, undervoltage protection, etc. are normal.

11. Data collection and recording: Accurately record all parameters during the testing process for analysis and archiving.

12. Compatibility: Compatible with the interface and control system of the generator set, making it easy to operate and monitor.

13. Safety factors: Ensure the safety of personnel and equipment during the testing process.

14. Cost factors: including the cost of purchasing or leasing load bankes, energy consumption costs during the testing process, etc.

1. Power testing: By connecting resistors with different resistance values, various power levels can be accurately simulated, thereby accurately testing the output performance of the generator set under different load powers.

2. Steady state performance evaluation: Help evaluate the stability and accuracy of parameters such as voltage, frequency, and current of the generator set during steady state operation, to ensure that it can reliably output electrical energy for a long time.

3. Overload capacity detection: Gradually increasing the resistive load can determine the bearing capacity of the generator set and the effectiveness of the protection mechanism when it exceeds a certain proportion of the rated power.

4. Temperature characteristic investigation: Monitor the temperature changes of the generator set during the loading process to understand its heat dissipation performance and working conditions under different loads and temperature conditions.

5. Aging test: Apply a certain resistive load for a long time to accelerate the aging process of the simulated generator set in actual use, and detect potential problems in advance.

6. Calibration and Verification: Used to calibrate and verify the accuracy of testing instruments and measuring equipment, ensuring the reliability of test data.

7. Full load test: Implement a full load operation test of the generator set and observe its overall performance under full load conditions.

8. Performance comparison: Convenient for comparing performance between different generator sets, providing reference for selection and procurement.

1. Simulate real loads: Due to the fact that many actual loads contain both resistance and inductance characteristics, the resistance sensing load bank can more realistically simulate the load situation of actual electrical equipment, making the test results more practical.

2. Detection of voltage regulation ability: It can examine the ability of the generator set to maintain stable output voltage when facing changes in resistive loads.

3. Verify the effectiveness of reactive power compensation: Help determine the effectiveness of the coordination between the generator set and the reactive power compensation device, and see if it can effectively regulate reactive power when carrying resistive loads.

4. Evaluation of load capacity: Comprehensively evaluate the comprehensive bearing capacity of the generator set for resistive and inductive loads.

5. Assess dynamic performance: Test the dynamic response speed and recovery ability of the generator set by suddenly changing the magnitude of the resistive load.

6. Examining the impact of harmonics: Inductive components may generate certain harmonics, which can be used to observe the adaptability of the generator set to harmonic loads.

7. Determine the power factor range: Understand the power factor range that the generator set can achieve under different resistance inductance ratios.

8. Durability testing: Applying resistive loads for a long time to test the durability and reliability of the generator set under complex load conditions.

9. Compatibility testing: Used to test the compatibility of the generator set when connected to different types of inductive equipment.
