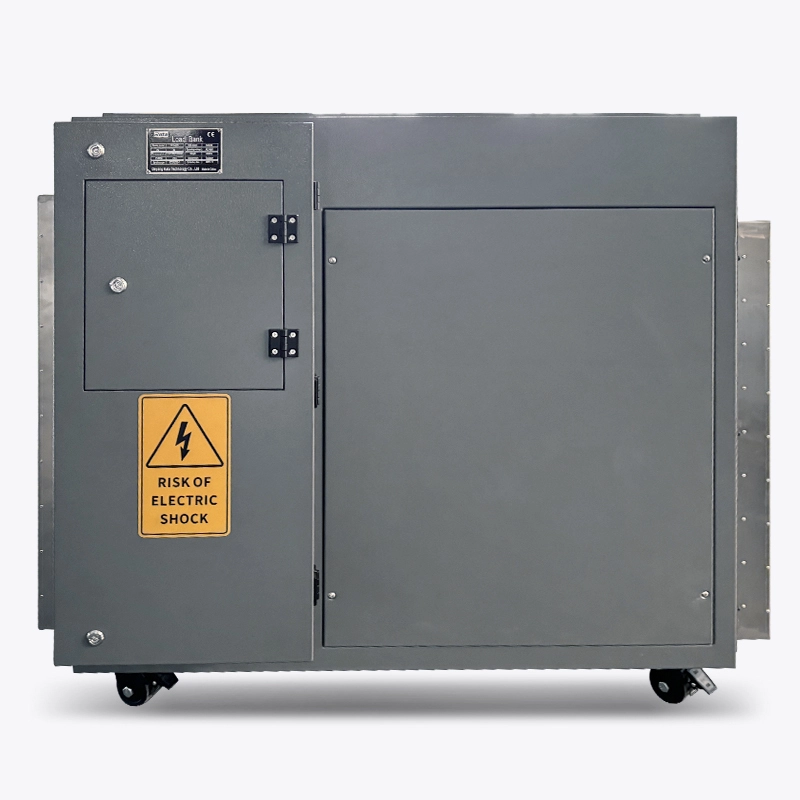

New Arrival SILV-500kw Resisitive Load Bank Manufacturer Rata
Product Introduction
Engineered with a 415Vac rated testing voltage, 1kW load step resolution, and a flexible load step configuration, the SILV500-L provides ultra-precise control over load testing scenarios, while its continuous operation capability and rugged construction (2mm thick steel IP54 enclosure, 400A waterproof quick connectors) ensure uncompromising performance in extreme ambient conditions from -20°C (-4°F) to +50°C (122°F) and at altitudes up to 2000m.a.s.l.
Equipped with HMI touch screen manual control, PC software remote operation, and Modbus TCP communication, it enables automated, real-time testing with seamless data integration, optimizing workflows for power system manufacturers, maintenance teams, and industrial facilities worldwide. Boasting thermal emergency cut-out, fan overload protection, and emergency stop features, this load bank prioritizes operational safety, while its castor-mounted portability and horizontal forced air cooling (70m³/h per kW airflow) enhance usability and durability for both indoor and outdoor applications. Certified for global compliance, the SILV500-L merges cutting-edge engineering with practical design, meeting the stringent demands of the international electrical testing market and supporting sustainable power infrastructure development.
Key Features
Enclosure drawing(mm)
Product Specifications
|
Description |
|
|
Model No. |
SILV500-L |
|
Country of origin |
China |
|
Max capacity |
500kW |
|
Rated testing voltage |
415Vac |
|
Frequency |
50/60Hz. |
|
Phases |
3 |
|
Wires(Star connection) |
4 |
|
Load step resolution |
1kW |
|
Load step (kW) |
1 +2+2+5 +10+10+20+50+ 100+100+200 |
|
Voltage Tolerance (Short Term Operation) |
5% |
|
Load Element Tolerance |
± 3% |
|
Insulation Test |
600Vac |
|
Load Connections |
400A waterproof quick connector |
|
Protection |
Thermal emergency cut out |
|
Air flow switch |
|
|
Fan overload protection |
|
|
Emergency stop |
|
|
Control voltage |
415Vac / 3 phases 5wires |
|
Cooling method |
Air forced cooling |
|
Airflow volume(Approx. CMM) |
Each kW 70m³/h |
|
Airflow direction |
Horizontal |
|
Load switching contactor type |
3 pole AC contactors |
|
Rated maximum ambient temp. operation |
+50°C / +122°F |
|
Rated minimum ambient temp. operation |
-20°C / -4°F |
|
Altitude rating |
<2000m [m.a.s.l.] |
|
Control chamber IP rating |
IP 54 (Outdoor using) |
|
Portabality |
Castor*4 |
|
Enclosure dimentions |
|
|
Length(mm) |
1155 |
|
Depth(mm) |
1205 |
|
Height(mm) |
1120 |
|
Weight(KG) |
800 |
|
Load bank control system |
|
|
Manual control Remote control |
HMI touch screen+ digital meter PC Software |
|
Communication |
Modbus TCP. |
|
Test voltage(3 phases) |
Power derating with lower voltage |
|
applied. |
|
|
415V |
500 kW |
|
400V |
464.5 kW |
