Programmable Load Bank
Rata 800KW programmable load bank has built-in Siemens PLC logic controller. Users can implant control programs according to their own needs.
This product matches with the latest development of the industry and meets the demands of customers.
PRODUCT OVERVIEW
Rata 800KW programmable load bank has built-in Siemens PLC logic controller. Users can implant control programs according to their own needs. It has the characteristics of simple operation, small volume and convenient transportation. It can be used in parallel according to the load capacity. Compared with the traditional water load and resistor load bank, it has many advantages, such as no leakage, no harmful gas and wastewater, high load test accuracy, easier adjustment, no test preparation time, continuous and long-term use and so on.

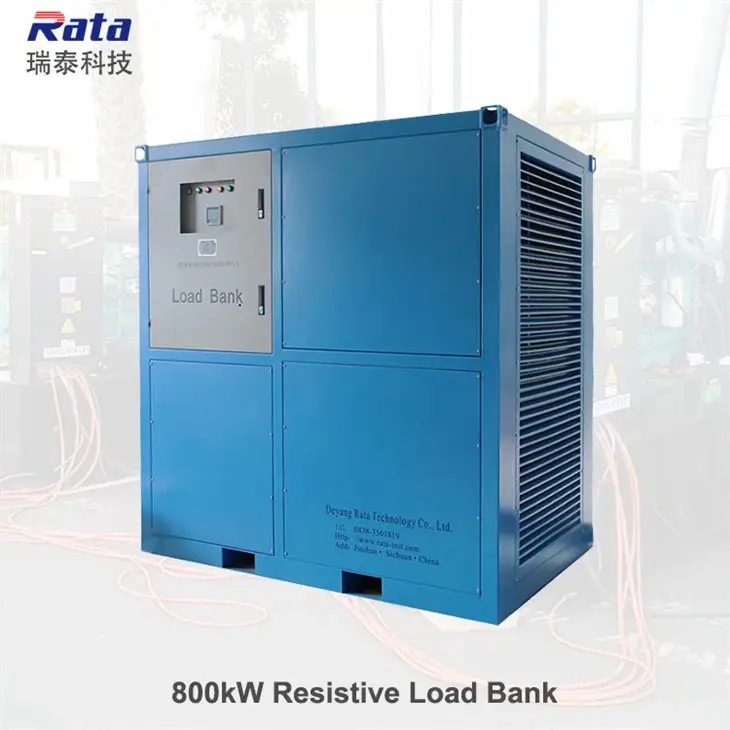

PRODUCT PICTURE
PRODUCT PICTURE
APPLICATION SCENARIO
PARTIAL PARAMETERS
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
programmable load bank |
|
Specifications |
R800kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load step |
According to customer needs |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage ac 2000v for 5min Resistance error of each resistance tube:±3% |
|
Load control |
Local manual control, local automatic control or remote automatic control can be selected |
|
Loading accuracy |
Less than or equal to 3% |
|
Three phase balance |
Unbalance degree less than or equal to 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
TN-C,380V/50Hz |
|
Cooling mode |
Forced air cooling, side air outlet or top air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Voltage rising mode |
Realized by transformer |
|
Load expansion |
Parallel expansion of multiple load containers |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
MORE SPECIFICATIONS
|
Note: all parameters are for reference only and can be customized |
||||
|
Power(kW) |
Voltage(kV) |
Frequency(Hz) |
Size(mm,L*W*H) |
Weight(Kg) |
|
Low voltage |
||||
|
100 |
0.4 |
50 |
1100*900*1000 |
320 |
|
200 |
0.4 |
50 |
1350*1100*1100 |
450 |
|
300 |
0.4 |
50 |
1500*1200*1200 |
650 |
|
400 |
0.4 |
50 |
1700*1500*1500 |
830 |
|
500 |
0.4 |
50 |
1700*1600*1600 |
950 |
|
600 |
0.4 |
50 |
1800*1600*1600 |
1150 |
|
800 |
0.4 |
50 |
1900*1800*1700 |
1900 |
|
1000 |
0.4 |
50 |
2300*1700*2100 |
2100 |
|
1200 |
0.4 |
50 |
2500*1800*2200 |
2300 |
|
1500 |
0.4 |
50 |
2500*1860*2300 |
2600 |
|
1800 |
0.4 |
50 |
3000*2000*2300 |
4000 |
|
2000 |
0.4 |
50 |
3000*2000*2300 |
5000 |
|
2500 |
0.4 |
50 |
4000*2438*2500 |
6000 |
|
3000 |
0.4 |
50 |
6000*2438*2500 |
7000 |
|
Medium voltage |
||||
|
1000 |
6/10.5 |
50/60 |
3000*2438*2500 |
3500 |
|
1200 |
6/10.5 |
50/60 |
4000*2438*2500 |
3900 |
|
1500 |
6/10.5 |
50/60 |
4000*2438*2500 |
4500 |
|
1600 |
6/10.5 |
50/60 |
5000*2438*2500 |
5000 |
|
1800 |
6/10.5 |
50/60 |
5000*2438*2500 |
6500 |
|
2000 |
6/10.5 |
50/60 |
6000*2438*2500 |
7500 |
|
2200 |
6/10.5 |
50/60 |
6000*2438*2500 |
8000 |
|
2500 |
6/10.5 |
50/60 |
6000*2438*2500 |
10000 |
|
3000 |
6/10.5 |
50/60 |
7000*2438*2500 |
12000 |
|
4000 |
6/10.5 |
50/60 |
8000*2438*2500 |
14000 |
|
5000 |
6/10.5 |
50/60 |
9000*2438*2500 |
15000 |
|
6000 |
6/10.5 |
50/60 |
12000*2438*2500 |
16000 |
|
7000 |
6/10.5 |
50/60 |
12000*2438*2500 |
17000 |
|
8000 |
6/10.5 |
50/60 |
12000*2438*2500 |
18000 |
DESIGN DRAWINGS
TRANSPORT AND INSTALL
The top four corners of the load bank are provided with lifting holes and the bottom four corners are provided with rollers to facilitate loading, transportation and mobile installation.
FAQ
1. If I have a large order, will you give me a discount?
A. Yes, we can offer different discounts according to the quantity of your order.
2. Where is your load bank applicable?
Our load bank is widely used in industries that will use power supply equipment.
3. Do you accept custom size design?
A: Yes, it can be customized, including function customization.
4. Can you print our company's logo on the nameplate and package?
A: Yes, we can do it
5. If I don't know what kind of load bank I need, what should I do?
A: don't be nervous. You just need to provide us with the technical requirements form or the specifications of the load bank to be tested.
6. What is your minimum order quantity? Can I mix different styles together?
Please tell us what you need first. We can mix different specifications of load banks
7. Can you give me a discount?
A: There is a discount, but we need to look at the actual quantity and load bank specifications. We have different prices according to different quantities and specifications. The discount depends on the quantity and specifications, and our price is very competitive in this field
8. If I have a load bank that wants to be made of other special materials, can you do it?
A: Of course, you only need to provide the drawings or samples of our design. The R & D department will estimate whether we can do it, and we will give you the most satisfactory reply.
9. Can I visit your factory?
A: We warmly welcome your arrival. Please let us know before you take off from your country. We will show you the way and arrange a time to pick you up.
10. Do you provide OEM service? Can you produce according to our drawings?
Provide OEM services to us. We accept customized design. We have a professional design team that can design the load bank according to your requirements. We can develop new load banks according to your samples or drawings
11. May I ask for a change in the packing and mode of transportation?
A: Yes, we can change the packing and transportation form according to your requirements, but you must bear the expenses and price difference during this period.
12. Can I ask for early shipment?
A: it should depend on whether there is enough stock in our warehouse.
13. What are your advantages over your competitors?
(1). Qualified manufacturer
(2). Reliable quality control
(3). Competitive price
(4). Efficient service (24 * 7 hours)
(5). One stop service
14. Can you provide drawings and technical data?
Yes, our professional technical department will design and provide drawings and technical data.
