Single Phase Load Bank
Rata single phase load bank can be applied to the daily maintenance test, engineering acceptance, factory inspection test and product aging test of all kinds of switching power supply, medium frequency aviation power supply and inverter.
PRODUCT OVERVIEW
Rata single phase load bank can be applied to the daily maintenance test, engineering acceptance, factory inspection test and product aging test of all kinds of switching power supply, medium frequency aviation power supply and inverter. The single phase load bank adopts unified segmented power input, energy consumption working mode and forced air cooling heat dissipation to ensure the reliability of constant power discharge.

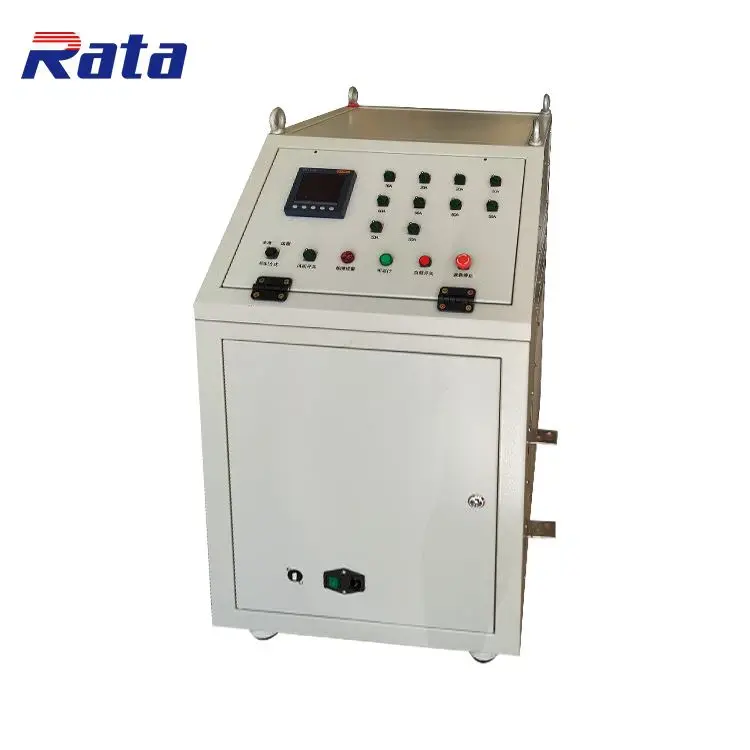

PRODUCT PICTURE
APPLICATION SCENARIO
PARTIAL PARAMETERS
Note: all parameters are for reference only and can be customized | |
Product name | single phase load bank |
Specifications | R30kW/220V/50Hz/60Hz |
Formation | One load bank(Including dry resistance load, electrical control components, measurement and control system) |
Load step | According to customer needs |
Load connection | Copper bar |
Resistor | Each resistance element: insulation impedance DC3000V Withstand voltage ac 2000v for 1min Resistance error of each resistance tube:±3% |
Load control | Local manual control, local automatic control or remote automatic control can be selected |
Loading accuracy | Less than or equal to 3% |
Three phase balance | Unbalance degree less than or equal to 3% |
Power measurement range | 0-30kW |
Working mode | Continuous work |
Load protection | Short circuit, overcurrent, high temperature, fan fault protection |
External power | 220V/50Hz |
Cooling mode | Forced air cooling, side air outlet |
Insulation class | F |
Measurement accuracy | The display accuracy is 0.5,the sampling accuracy is 0.2 |
Electrical parameter display | Voltage, current, frequency, power, etc |
Load expansion | Parallel expansion of multiple load containers |
Standard | Meet international standard, ship standard, military standard and telecommunication standard |
Transport | The load bank has a load-bearing lifting hole,, which meets the requirements of long-distance transportation |
Color | Customized |
Ambient temperature | -20℃ to 50℃ |
Humidity | Up to 100% |
Altitude | Up to 2500m |
Atmospheric pressure | 86 to 106kPa |
