Resistive Load Bank Supplier Resistive Load Bank Wholesale - Rata-1
Product Overview

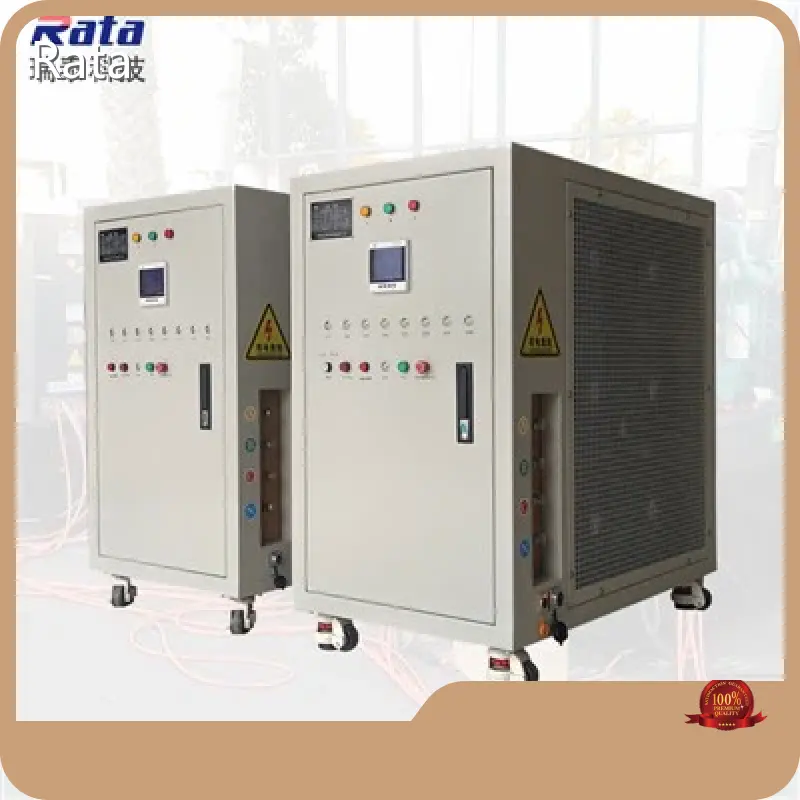

- Rata 100kW resistive load bank (indoor design) supplied by Deyang Rata Technology Co., Ltd. It is a portable, copper-bar-connected resistive-only load bank with universal wheels for movement and English-language PC control software. Size 700×500×960 mm, weight 105 kg, packed in wooden case and pallet for export.
Product Features
- Rated 100 kW resistive only; configurable for AC 380V/400V/415V or other customized voltages.
- Control: local panel switching plus remote PC control (English software), PLC/generator tester support, RJ45 interface, load data save and print.
- Load steps: 1kW + 2kW + 2kW + 5kW + 10kW + 10kW + 20kW + 50kW for precise staging.
- Forced air cooling with horizontal intake/outlet, 8020 Ni–Cr alloy finned resistors, copper bar and quick connectors.
- Protections include short circuit, overcurrent, high temperature, low air volume, fan fault and emergency stop.
Product Value
- Provides accurate, repeatable, and safe electrical load testing to validate generators, transformers, UPS systems and battery stores, reducing commissioning and maintenance risk.
- Data logging and printing plus remote control enable easier diagnostics, traceability and reporting.
- Compact, mobile and export-ready construction lowers installation time and transport cost for field and factory use.
Product Advantages
- Built by an ISO9001-certified, national high‑tech company (est. 2013) with multiple patents and software copyrights, ensuring mature R&D and quality control.
- Competitive pricing and global export track record with established after-sales/service systems.
- Modular load steps, robust protections and proven resistor/cooling design deliver reliable performance and long service life.
- Flexible integration options (PLC, generator tester, RJ45) for automated test systems.
Application Scenarios
- Generator on-load testing and commissioning in power plants, shipyards and rental/test fleets.
- Transformer and UPS capacity/heat testing and validation.
- Battery discharge and capacity testing for storage systems.
- Data center commissioning, ship shore-power systems, new energy and grid-adaptability experiments, and other industrial or laboratory electrical testing environments.
