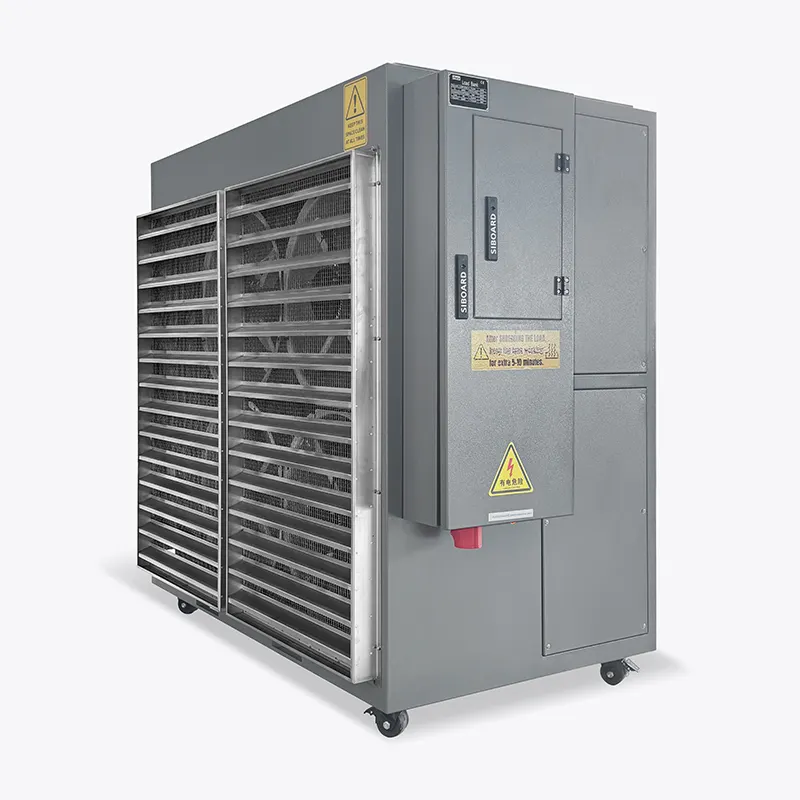

SILV-1000L resistive AC load bank Outdoor For Generator Testing
The SILV-1000L is a 1000kW resistive AC load bank manufactured by Rata, designed specifically for testing power systems such as generators, UPS, and switching equipment.
5.0
Warranty time:
3 years
Delivery time:
4 weeks
ISO Certification:
ISO9001/ISO14001
Brand:
RATA
Factory Price:
Negotiate
Supply Ability:
200,000 Piece/Pieces per Month
Port:
Shanghai and Guangzhou are both available
Payment Terms:
L/C,Cash,Western Union,T/T, Paypal
Min.Order Quantity:
1 pcs
ODM & OEM:
Available
Certification:
CE 60204 Standard
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The SILV-1000L is a 1000kW resistive AC load bank manufactured by Rata, designed specifically for testing power systems such as generators, UPS, and switching equipment.
The device has a rated test voltage of 380Vac, supports 50/60Hz frequencies, and uses a three-phase four-wire star connection. Its core advantage lies in its precise 1kW load step resolution. Through a combination of multi-stage load switches (1kW to 200kW), it can achieve accurate load regulation from 1kW to 1000kW, meeting stringent testing requirements.
Enclosure drawings (mm)
This info given is our standard load bank features. we are constantly looking to imporove our design.
We reserve the right to change with prior notice. The finished design maight slightly vary from this given TDS.
1 (102)
2 (78)
3 (52)
4 (37)
Main Parameters
| Model No. | SILV1000L |
| Country of origin | China |
| Max capacity | 1000kW |
| Rated testing voltage | 380Vac |
| Frequency | 50/60Hz. |
| Phases | 3 |
| Wires(Star connection) | 4 |
| Load step resolution | 1kW |
| Load step (kW) | 1+2+2+5+10+10+20+50+ 100+200*4 |
| Voltage Tolerance (Short Term Operation) | +5% |
| Load Element Tolerance | ± 3% |
| Insulation Test | 600Vac |
| Load Connections | Copper busbars |
| Protection | Thermal emergency cut out |
| Air flow switch | |
| Fan overload protection | |
| Emergency stop | |
| Control voltage | 380Vac / 3 phases 5wires |
| Cooling method | Air forced cooling |
| Airflow volume(Approx. CMM) | Each kW 7Ocbm/ hour |
| Airflow direction | Horizontal |
| Load switching contactor type | 3 pole AC contactors |
| Rated maximum ambient temp. operation | +50°C / +122°F |
| Rated minimum ambient temp. operation | -20°C / -4°F |
| Altitude rating | <2000m [m.a.s.l.] |
| Control chamber IP rating | IP 54 (Outdoor using) |
| Portability | 2 folkift pockets |
| Enclosure dimentions | |
| Length(mm) | 1145 |
| Depth(mm) | 1927 |
| Height(mm) | 1700 |
| Weight(KG) | 1100 |
| Load bank control system | |
| Manual control | HMI touch screen(with V/A/KW/HZ display) |
| Remote control | PC based Software - Nexus-1 |
Main parts
IMG_3495_副本 拷贝
IMG_4207 拷贝
IMG_4215_副本 拷贝
IMG_4227 拷贝
IMG_4209 拷贝
FAQ
1
What are the advantages of the SILV-1000L compared to the previous 1000KW resistive load bank?
(1) The SILV-1000L has been upgraded in size, only half the size of the original.
(2) The cooling airflow has been shortened, allowing four of 600mm diameter fans to dissipate heat, resulting in a 20-30% increase in cooling efficiency.
(2) The cooling airflow has been shortened, allowing four of 600mm diameter fans to dissipate heat, resulting in a 20-30% increase in cooling efficiency.
2
What standardizations are used in the control loop?
The control loop adopts the Siemens Si-board design standard. Main control components such as relays, fan motor protectors, and touchscreens use Siemens components, improving reliability.
3
Is 1kW accuracy truly meaningful in actual data center testing?
Absolutely. Data center expansion is typically done gradually, rack by rack, rather than at full capacity all at once.
1kW step allowance:
(1) Accurately simulates single-cabinet or single-row load operation;
(2) Verifies the UPS efficiency curve within the 20%–80% load range;
(3) Finely evaluates generator low-load operation stability;
1kW step allowance:
(1) Accurately simulates single-cabinet or single-row load operation;
(2) Verifies the UPS efficiency curve within the 20%–80% load range;
(3) Finely evaluates generator low-load operation stability;
4
Is this equipment suitable if the data center requires 8–12 hours of full-load testing?
Yes. This equipment is designed for continuous operation, employs a forced air-cooled structure, has an airflow of approximately 70m³/h per kW, and supports operation in environments from -20°C to +50°C.
Suitable for: Long-term full-load stability testing; backup power endurance testing; annual emergency drills.
Suitable for: Long-term full-load stability testing; backup power endurance testing; annual emergency drills.
5
Yes. This equipment is designed for continuous operation, employs a forced air-cooled structure, has an airflow of approximately 70m³/h per kW, and supports operation in environments from -20°C to +50°C.
Suitable for: Long-term full-load stability testing; backup power endurance testing; annual emergency drills.
Suitable for: Long-term full-load stability testing; backup power endurance testing; annual emergency drills.
The equipment uses a three-pole AC contactor for graded control, a copper busbar structure in the main circuit, and a graded load switching method. It also features: automatic over-temperature unloading; automatic unloading due to insufficient airflow; emergency shutdown; ensuring equipment safety during switching tests.
6
How does the load cell support system coordinate with phased construction in a modular data center?
Modular data centers are typically deployed in phases.
The load bank's multi-level load combination design allows for: simulating 30% load in the first phase; 60% load in the second phase; and finally 100% load. It adapts to different phase testing needs without requiring equipment replacement.
7
Data centers increasingly emphasize "digital test records." Does the load cell support data archiving?
Yes. The Nexus-1 PC control system enables: real-time voltage, current, power, and frequency display; automatic data acquisition; curve generation; test record saving; meeting data center acceptance and audit requirements.
8
Is it reliable in temporary outdoor testing environments?
The control cabin is IP54; it features industrial-grade axial flow fans; stainless steel louvered air inlets; and a wide environmental temperature range suitable for: outdoor testing; containerized data centers; and temporary commissioning during construction.
9
If the data center expands to over 1MW in the future, is it scalable?
It can be tested by connecting multiple load cells in parallel. The load bank adopts a standard copper busbar structure and industrial contactor control, facilitating multi-unit combination and meeting higher capacity verification requirements.
10
Compared to ordinary load banks, what are the differences of this device in data center applications?
1kW fine resolution (suitable for precise testing); supports remote software control; suitable for long-term continuous operation; multiple fan and temperature protection mechanisms; compact structure, facilitating server room layout; more compliant with data center testing specifications, rather than just for simple generator load testing.
11
What type of data center project is this device best suited for?
New data center acceptance testing; UPS system upgrade testing; diesel generator commissioning; annual emergency power drills; modular data center expansion testing.
