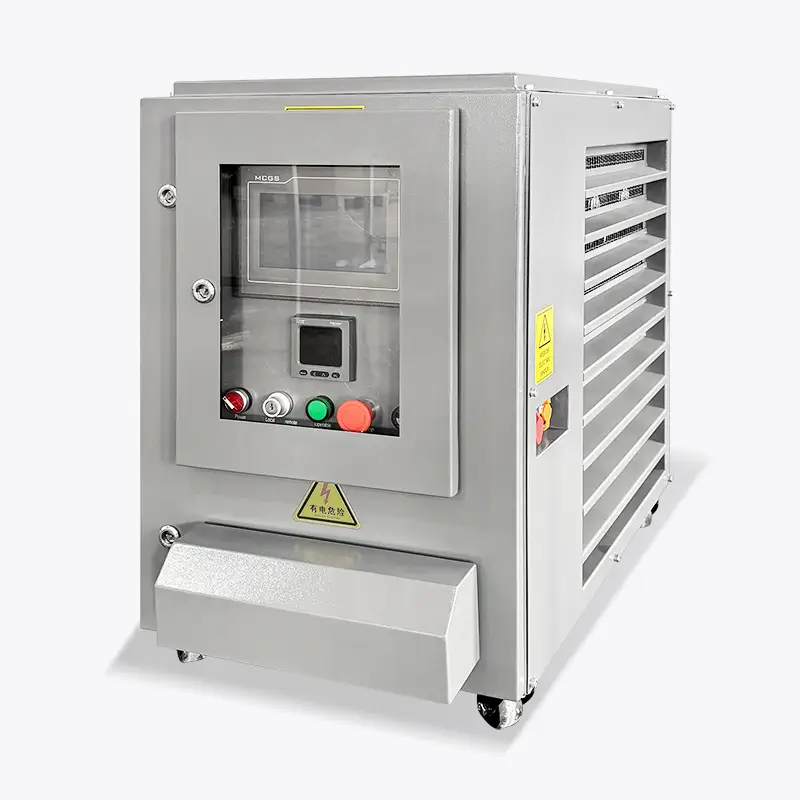

Rata SILV-100L 100kW Resistive Load Bank Portable For UPS or Generator
The Rata SILV-100L is a high-performance 100kW resistive AC load bank designed for performance testing and maintenance of data centers, generator sets, UPS systems, and other power equipment. Rated at 400Vac, it supports three-phase four-wire connections at 50/60Hz.
5.0
Warranty time:
3 years
Delivery time:
4 weeks
ISO Certification:
ISO9001/ISO14001
Brand:
RATA
Factory Price:
Negotiate
Supply Ability:
200,000 Piece/Pieces per Month
Port:
Shanghai and Guangzhou are both available
Payment Terms:
L/C,Cash,Western Union,T/T, Paypal
Min.Order Quantity:
1 pcs
ODM & OEM:
Available
Certification:
CE 60204 Standard
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
It's core advantage lies in providing a fine load step resolution of 1kW, ensuring precise adjustment from 1kW to 100kW, with load component tolerance controlled within ±3%, guaranteeing the accuracy of test results. The SILV-100L adopts a robust and durable containerized design with an IP54 control chamber protection rating, enabling it to withstand harsh outdoor working environments and operate stably over a wide temperature range of -20°C to +50°C.
The equipment integrates HMI touchscreen manual control and PC-based Nexus-1 software remote control, greatly improving the convenience and intelligence of operation. Simultaneously, multiple safety protection mechanisms ensure the safety and reliability of the testing process.
ENCLOSURE DRAWINGS (mm)
1 (108)
2 (84)
Key Features and Advantages
Rugged and Durable Design
Containerized structure, IP54 control protection rating, stable operation in environments from -20°C to +50°C, suitable for outdoor use.
Exbankent Portability
Equipped with 4 casters and 2 forklift bags for easy movement and on-site deployment.
High-Precision Load Control
100kW maximum capacity, 1kW fine load step resolution, load component tolerance ±3%, meeting stringent testing requirements.
Intelligent Control and Monitoring
Supports manual control via HMI touchscreen and remote control via Nexus-1 PC software, enabling real-time data monitoring, recording, and analysis.
Main Parameters
| Model No. | SILV-100L |
| Country of origin | China |
| Max capacity | 100kW |
| Rated testing voltage | 400Vac |
| Frequency | 50/60Hz. |
| Phases | 3 |
| Wires(Star connection) | 4 |
| Load step resolution | 1kW |
| Voltage Tolerance (Short Term Operation) | +5% |
| Load Element Tolerance | ±3% |
| Insulation Test | 600Vac |
| Load Connections | 400A quick connectors |
| Protection | Thermal emergency cutout. |
| Low air volume cut out. | |
| Fan overload protection | |
| Control circuit main breaker | |
| Emergency stop | |
| Control voltage | 400Vac / 3 phases 5wires |
| Cooling method | Air forced cooling |
| Quantity of fans | 4 |
| Airflow volume(Approx.) | Each kW 70 cbm/ hour |
| Airflow direction | Horizontal |
| Load switching contactor type | 3 pole AC contactors |
| Rated maximum ambient temp. operation | +50°C / +122°F |
| Rated minimum ambient temp. operation | -20°C / -4°F |
| Altitude rating | <2000m [m.a.s.l.] |
| Control chamber IP rating | IP 54 (Outdoor using) |
| Portability | 4 casters + 2 folkift pockets |
| Enclosure dimentions | |
| Length(mm) | 464 |
| Depth(mm) | 784 |
| Height(mm) | 660 |
| Weight(KG) | 108 |
| Load bank control system | |
| Manual control | HMI touch screen(The V/A/KW/HZ display) |
| Remote control | PC based software - Nexus-1 |
| Test voltage(3 phases) | Power derating with lower voltage applied. |
| 400Vac | 100 kW |
| 380Vac | 90 kW |
Key details
IMG_4160 拷贝
IMG_6943 拷贝
IMG_6941 拷贝
IMG_6934 拷贝
IMG_6611 2 拷贝 (2)
IMG_6617 2 拷贝 (2)
IMG_6616 2 拷贝
IMG_7286 拷贝 (2)
FAQ
1
What is the maximum test power of the SILV-100L? What is its load step resolution?
The SILV-100L has a maximum test power of 100kW. It offers a fine load step resolution of 1kW, allowing users to precisely adjust the load in 1kW increments to meet the needs of different testing scenarios.
2
What voltages and frequencies does this load bank support?
The SILV-100L has a rated test voltage of 400Vac and supports two frequencies: 50Hz and 60Hz. It uses a three-phase four-wire system (star connection).
3
What is the cooling method of the SILV-100L? How does it ensure long-term operational stability?
This load bank uses forced air cooling, equipped with four heavy-duty axial fans, providing approximately 70 cubic meters per hour of cooling airflow per kilowatt of load. This efficient cooling system ensures stable operation of the equipment even at full power output for extended periods, preventing overheating.
4
Is this load bank suitable for outdoor use? How adaptable is it to different environments?
Yes, the SILV-100L features a containerized design with an IP54 protection rating for the control chamber, making it ideal for outdoor use. It can operate stably in a wide range of ambient temperatures from -20°C to +50°C.
5
What control methods does the SILV-100L offer? Does it support remote operation?
The load bank supports manual control via an HMI touchscreen and remote control via Nexus-1 software on a PC. The Nexus-1 software provides real-time data monitoring, recording, and analysis, enhancing ease of operation and intelligence.
6
What safety protection functions does the load bank provide?
The SILV-100L integrates multiple safety protections, including thermal emergency shutdown, low airflow shutdown, fan overload protection, a main circuit breaker for the control circuit, and an emergency stop button, comprehensively ensuring the safety of testing personnel and equipment.
7
How portable is the load bank?
The equipment is designed with 4 casters and 2 forklift bags, making it very convenient to move and deploy on-site.
8
What is the accuracy of the load components?
The load components have a tolerance of ±3%, ensuring high accuracy of test results.
9
How does the SILV-100L help test UPS systems in data center applications?
The SILV-100L can simulate the actual load of data center servers, performing full-power discharge tests on UPS systems to verify their load capacity, battery life, switching time, and overall stability, ensuring the reliability of data center power supply.
10
How can the SILV-100L assist in generator testing?
In generator testing, the SILV-100L can be used for factory acceptance testing (FAT), transient response testing (simulating sudden load increases and decreases), long-term "burn-in" stability testing, and verifying the voltage and frequency stability of generators under different load conditions.
11
Typical product delivery time?
4 weeks.
12
Warranty service?
3 years.
13
Do you provide installation and testing support?
Yes, Rata provides on-site testing services, including equipment installation, configuration, and data logging.
14
How many countries have you exported to?
We export to over 80 countries worldwide.
15
Why choose us?
We have ISO、CE certification and are Authorized factories for Siemens and Schneider Electric brands.
