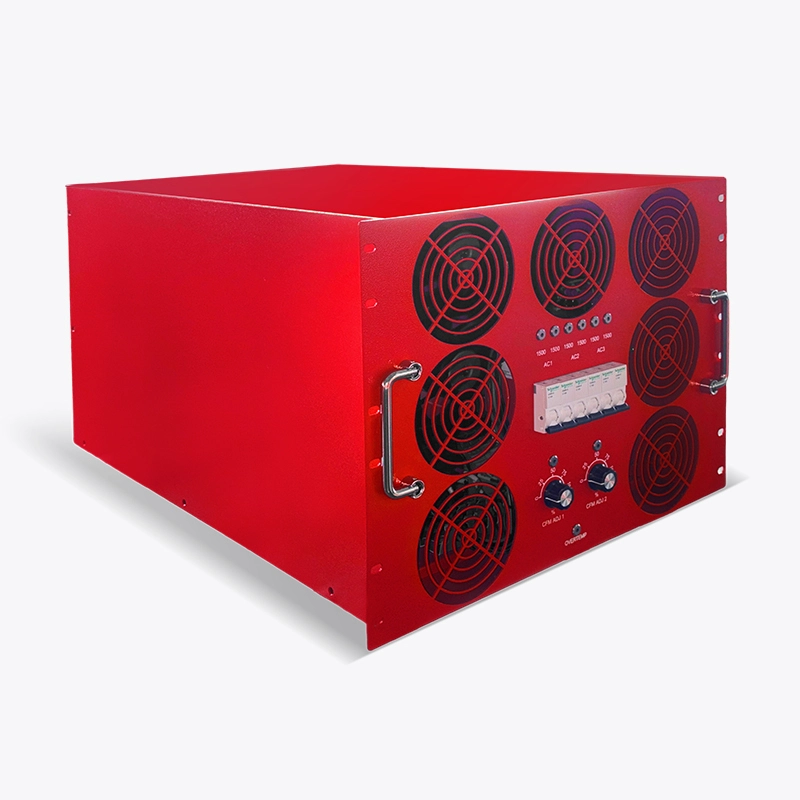

9kW single phase rack-mounted load bank 1

9kW single phase rack-mounted load bank 2

9kW single phase rack-mounted load bank 3

9kW single phase rack-mounted load bank 4

9kW single phase rack-mounted load bank 5

9kW single phase rack-mounted load bank 6

9kW single phase rack-mounted load bank 7

9kW single phase rack-mounted load bank

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

Product Introduction

Rata's 18kW Rack-mounted Load Bank has a reliability rate unrivaled on the market, which is specifically designed to support airflow testing and cooling system verification within the facility.

Enclosure drawings (mm)

Data sheet

9kW single phase rack-mounted load bank
Model No.	RTLB09-RM
Country of origin	China
Max capacity	9kW
Rated testing voltage	Single phase, 230Vac
Frequency	50Hz-60Hz.
Load step	1500w*6
Resistors type	Finned resistor
Whole machine accuracy	± 3%
Load element Tolerance	± 5%
Insulation test voltage	500Vac
Load Connections	C20 plug *3
Protection	Over-temperature alarm Over voltage\over current
Operation Temperature	0-75°C
Storage Temperature	0-85°C
Airflow direction	Horizontal Air forced cooling--Front in, back out
Fans Nos.	4pcs
Airflow volume(Approx. CM/M)	410CFM*4, total air volume 1640CFM With 2 fan controllers (volume step: 50%,75%,100%)
IN-OUT Air temperature range (Delta T。)	Maximum 45℃ (factory test environment) Real feedback from customer: 11℃-26.5℃ avg.
Altitude rating	<2000m [m.a.s.l.]
Cabinet material	steel
Control chamber IP rating	IP 23
Portability	3 carrying handles
Enclosure color	RAL3026
Enclosure dimentions
*WidthDepth**	483mm*603mm (19inch rack)
Height	8U
Estimated Weight(KG)	36kg
Load bank control system
Manual control	Schneider Circuit breaker +Air volume control
Accessory	C19 +C20, 2.5mm2, 3m

Reference Pic

Picture for ref.
A: Load status indicators
B: Circuit breakers
C: Fan status indicator (the fans are divided to 2 lines)
D: Air volume controller*2 (with air volume steps: 25% 50%,75%,100%)
E: High temperature alarm

This info given is our standard load bank features. we are constantly looking to improve our design. We reserve the right to change with prior notice. The finished design might slightly vary from this given TDS.
