28.5V electronic load

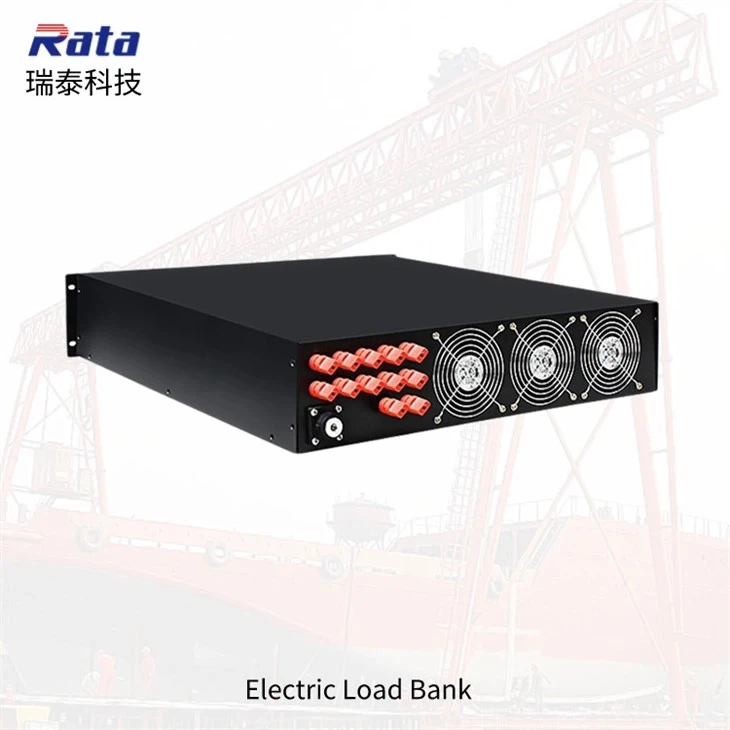

PRODUCT OVERVIEW The power density of RATA series electronic load is twice that of traditional load. It has wider current range and extremely high dynamic frequency, which effectively increases the test ability and application range. The powerful instantaneous overload capacity can reach more...
Popularity, good reputation, orientation are three evaluation index norms of jx8tz1hd image.
Introduction
The power density of RATA series electronic load is twice that of traditional load. It has wider current range and extremely high dynamic frequency, which effectively increases the test ability and application range. The powerful instantaneous overload capacity can reach more than 2 times of the rated power, which greatly improves the reliability of the load and effectively reduces the test cost. It has rich working modes and adjustable slope of voltage and current.
RATA electronic load can be used for discharge test of power cell, lead-acid cell and fuel cell; BMS and battery protection device test. Test of power electronic devices such as DC charging pile and charging module; High power switching power supply, UPS power supply, communication power supply, server power supply test and solar cell array, industrial motor virtual load test.
Supply list
|
Equipment components |
quantity. |
|
28.5V electronic load |
1 |
|
Operation and Maintenance Instructions |
2 |
|
Acceptance certificate |
1 |
|
Inspection report |
1 |
| Electrical schematic |
2 |
Warranty period
2 years.
Standard
System design, production and service are strictly in accordance with the requirements of GB/t19001-2008 "Quality Management System", and refer to the following standards. The final production plan for the system shall be subject to the technical agreement agreed upon by both parties.
|
National standard |
|
|
GB/t2820.52009 |
A reciprocating internal combustion engine drives the alternator. Part 5: Generator Sets |
|
GB/t13032-2010 |
Marine diesel generator set. |
|
GB/t1029-2005 |
Test methods for three-phase synchronous motors. |
|
GB14711-2006 |
Safety requirements for small and medium rotating electrical machines. |
|
Military standard |
|
|
GJB 2815-97 |
General Specification for Military Internal Combustion Engine Loads |
|
GJB235a-97 |
General Specification for Military AC Mobile Loads |
|
GJB 235-87 |
General technical conditions for industrial and intermediate frequency mobile loads |
|
GJB 1488-93 |
General test method for military internal combustion engine load |
|
Industry Standard |
|
|
JB/t10303-2001 |
Technical conditions of power frequency diesel generator sets |
By treating employees with mutual respect, staff always provide the best service for customers.
Data sheet
|
Note: all parameters are for reference only and can be customized |
||
|
Voltage |
According to customer needs |
|
|
Current |
According to customer needs |
|
|
Power |
According to customer needs |
|
|
Current Resolving power |
1.4mA |
14mA |
|
Current Accuracy |
0.05% + 0.05% F.S. |
|
|
Voltage Resolving power |
2mV |
10mV |
|
Voltage Accuracy |
0.025% + 0.025% F.S. |
|
|
Resistance Range |
0.015Ω～2kΩ |
|
|
Resistance Accuracy |
Vin divided by RSET multiplied by (0.2%) plus 0.2% F.S. |
|
|
Power Accuracy |
0.2% plus 0.2% F.S. |
|
|
T1&T2 |
10us～60s |
|
|
Resolving power |
2us |
|
|
Power Accuracy |
1us + 20PPM |
|
|
Gradient |
1mA/us～8A/us |
|
|
Rated voltage |
AC 220V |
|
|
Rated frequency |
50～60Hz |
|
|
Temperature |
0-50℃ |
|
More specifications
|
Model |
Power |
Voltage |
Current |
Model |
Power |
Voltage |
Current |
|
RT2500-3U |
RT5000-6U |
||||||
|
RT2500-28-80 |
2.5kW |
28 |
80 |
RT5000-28-160 |
5kW |
28 |
160 |
|
RT2500-60-40 |
60 |
40 |
RT5000-60-80 |
60 |
80 |
||
|
RT2500-80-30 |
80 |
30 |
RT5000-80-60 |
80 |
60 |
||
|
RT2500-150-20 |
150 |
20 |
RT5000-150-40 |
150 |
40 |
||
|
RT2500-300-10 |
300 |
10 |
RT5000-300-20 |
300 |
20 |
||
|
RT2500-500-6 |
500 |
6 |
RT5000-500-12 |
500 |
12 |
||
|
RT2500-600-5 |
600 |
5 |
RT5000-600-10 |
600 |
10 |
||
|
RT2500-750-3 |
750 |
3 |
RT5000-750-7 |
750 |
7 |
||
|
RT2500-1000-3 |
1000 |
3 |
RT5000-1000-6 |
1000 |
6 |
||
|
RT7500-7U |
RT10000-8U |
||||||
|
Model |
Power |
Voltage |
Current |
Model |
Power |
Voltage |
Current |
|
RT7500-28-240 |
7.5kW |
28 |
240 |
RT10000-28-320 |
10kW |
28 |
320 |
|
RT7500-60-120 |
60 |
120 |
RT10000-60-160 |
60 |
160 |
||
|
RT7500-80-90 |
80 |
90 |
RT10000-80-120 |
80 |
120 |
||
|
RT7500-150-60 |
150 |
60 |
RT10000-150-80 |
150 |
80 |
||
|
RT7500-300-30 |
300 |
30 |
RT10000-300-40 |
300 |
40 |
||
|
RT7500-500-18 |
500 |
18 |
RT10000-500-24 |
500 |
24 |
||
|
RT7500-600-15 |
600 |
15 |
RT10000-600-20 |
600 |
20 |
||
|
RT7500-750-10 |
750 |
10 |
RT10000-750-14 |
750 |
14 |
||
|
RT7500-1000-8 |
1000 |
8 |
RT10000-1000-12 |
1000 |
12 |
||
|
RT15000-10U |
RT24000-13U |
||||||
|
RT15000-28-480 |
15kW |
28 |
480 |
RT24000-28-770 |
24kW |
28 |
770 |
|
RT15000-60-240 |
60 |
240 |
RT24000-60-390 |
60 |
390 |
||
|
RT15000-80-180 |
80 |
180 |
RT24000-80-300 |
80 |
300 |
||
|
RT15000-150-120 |
150 |
120 |
RT24000-150-200 |
150 |
200 |
||
|
RT15000-300-60 |
300 |
60 |
RT24000-300-96 |
300 |
96 |
||
|
RT15000-500-36 |
500 |
36 |
RT24000-500-60 |
500 |
60 |
||
|
RT15000-600-30 |
600 |
30 |
RT24000-600-48 |
600 |
48 |
||
|
RT15000-750-20 |
750 |
20 |
RT24000-750-35 |
750 |
35 |
||
|
RT15000-1000-16 |
1000 |
16 |
RT24000-1000-30 |
1000 |
30 |
||
