5kW Rack Mounted Load Bank For Data Center

5kW resistive rack load bank generally used for data center. Customized color, single power source, 6U,horizontal air discharge.

Applications:
• Data center commissioning & validation
• UPS / PDU functional testing
• Thermal management & airflow verification
• Data center expansion & change management
• Factory Acceptance Test (FAT) & Site Acceptance Test (SAT)
• Power quality & redundancy verification
• Training labs & commissioning simulations

Warranty time:

3 years

Delivery time:

4 weeks

ISO Certification:

ISO9001/ISO14001

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

product introduction

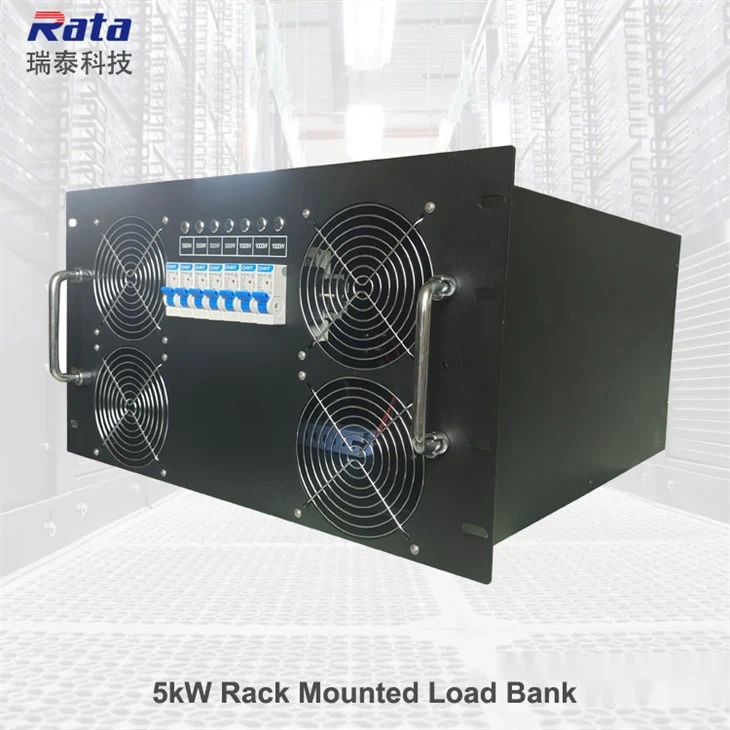

5kW Rack Mounted Load Bank

5kW resistive rack mounted load bank generally used for data center load testing. Its function could include single/dual power source,high temperature alarm,air volume adjustable,CFM display,digital meter for voltage,current,power and remote control for choices.

product specification

Model No.	RTLBO5-RM
Country of origin	China
Max capacity	5kw
Rated testing voltage	Single phase, 230Vac
Frequency	50Hz
Load step	1000w*5
Resistors type	Finned resistor
Voltage tolerance (Short Term Operation）	+5%
Load element Tolerance	±5%
Insulation test voltage	500Vac
Load Connections	C20 male plug *3
Protection	Thermal emergency cut out.
Control voltage	230v
Cooling method	Air forced cooling
Fans Nos.	2pcs
Airflow volume(Approx.CM/M)	150mm*2,total air volume 820CFMWith 2 fan controllers (volume step:50%,75%.100%)
Airflow direction	Horizontal
Operation Temperature	0-75°C
Storage Temperature	0-85°C
IN-OUT Air temperature range	Maximum 40'℃ (air outlet 1m distance about 75°C)
Altitude rating	<2000m [m.a.s.1.]
Cabinet material	steel
Control chamber IP rating	IP 23
Portability	2 carrying handles
Sample order	Available, shipping cost negotiable
Enclosure color	RAL9005 (Black)
Enclosure dimentions
Width*Depth	483mm*651mm (19inch rack)
Height	5U
Estimated Weight(KG)	26kg
Load bank control system
Load bank control system
Manual control	Schneider Circuit breaker +Air volume control
Accessory (optional)	C19 +C20,2.5mm^2，3m

faq

What are the core specifications of the 5kw rack-mounted load bank?

Rated capacity 5kW, single-phase 230Vac test voltage, 50Hz frequency, load step 1000W×5, uses finned resistors, forced air cooling design.

What are the load adjustment and control methods?

Supports manual control (Schneider circuit breaker + airflow adjustment), airflow has three levels: 50%/75%/100%, load can be adjusted in 1kW steps.

What are the installation and size requirements for the equipment?

Complies with 19-inch rack standard, dimensions 483mm (width) × 651mm (depth) × 5U (height), requires reserved horizontal ventilation space, suitable for altitudes < 2000m.

What protection and safety features does the equipment include?

Equipped with thermal emergency cut-off protection, control chamber protection rating IP23, insulation test voltage 500Vac, load component tolerance ±5%.

What are the limitations of the working and storage environment?

Operating temperature 0-75℃, storage temperature 0-85℃, maximum temperature 1m from the air outlet approximately 75℃, maximum inlet/outlet temperature difference 40℃.

What are the connection methods and accessory options?

Standard configuration includes 3 C20 male plugs. Optional accessories include C19+C20 connectors and a 3m 2.5mm² cable.

How portable and what are the physical characteristics of the equipment?

Net weight approximately 26kg, body made of steel (RAL9005 black), equipped with 2 handles for easy handling.

Will the high altitude of the data center (e.g., close to 2000m) affect equipment performance?

The equipment is rated for altitudes below 2000m (m.a.s.l.). It can operate normally within this range. Above this range, the load should be reduced to avoid affecting heat dissipation and insulation performance due to the thinner air.

Data Sheet

Note: all parameters are for reference only and can be customized
Product name	5kW rack mounted load banks
Rated voltage	AC230V,1 phase 2 wire
Maximum load power	500W
Load steps	500W,500W,500W,500W,1000W,1000W,1000W
Load accuracy (per gear)	±2%
Connection mode	Single power supply,two input,independent control power input
Insulation class	F
Working mode	Continuous work
Cooling mode	Forced air cooling,horizontal air discharge
Control mode	MCB control
Color	Customized
Ambient temperature	-20℃ to 50℃
Humidity	Up to 100%
Altitude	Up to 2500m
Atmospheric pressure	86 to 106kPa
