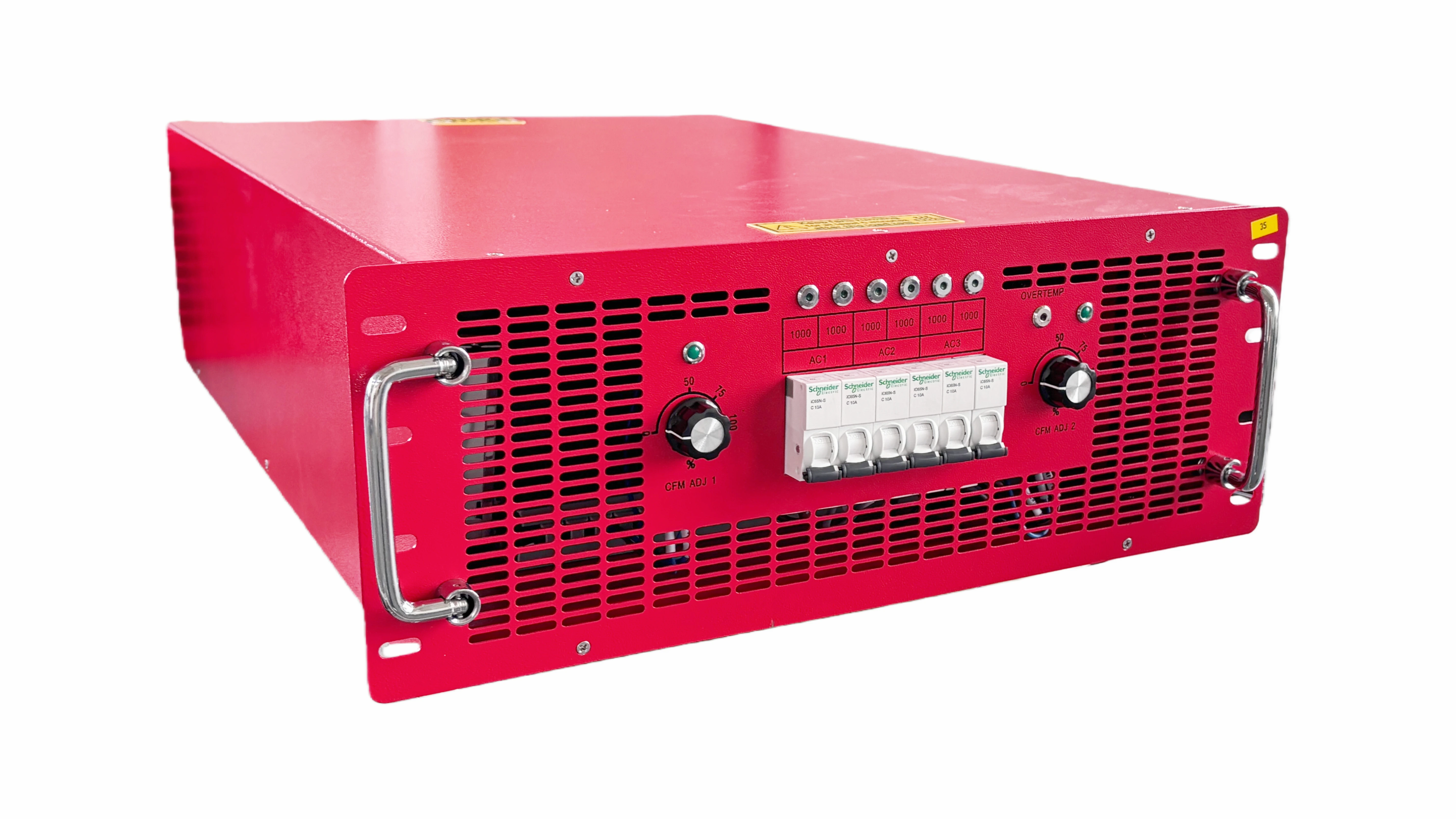

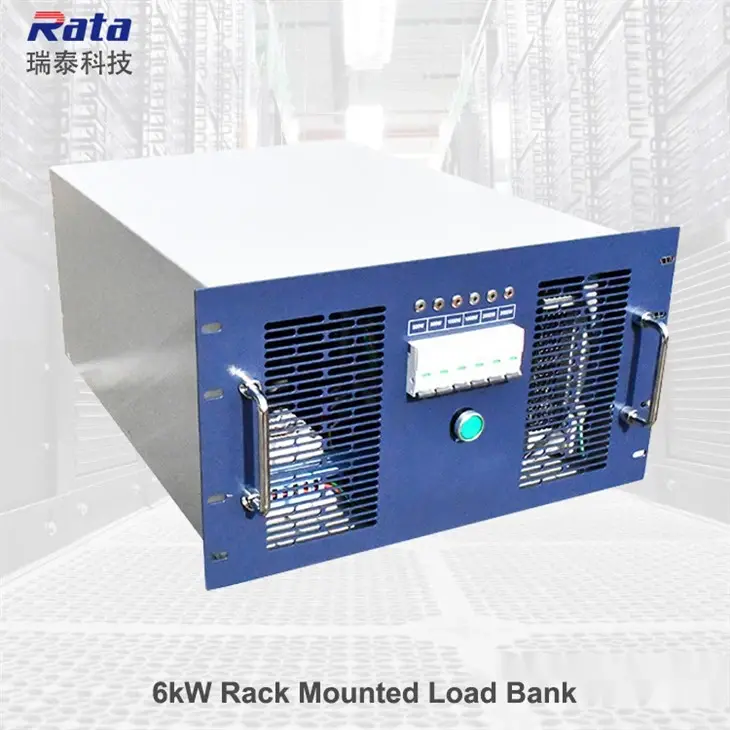

6KW Rack Mounted Load Bank for data center 1

6KW Rack Mounted Load Bank for data center 2

6KW Rack Mounted Load Bank for data center 3

6KW Rack Mounted Load Bank for data center 4

6KW Rack Mounted Load Bank for data center 5

6KW Rack Mounted Load Bank for data center 6

6KW Rack Mounted Load Bank for data center 7

6KW Rack Mounted Load Bank for data center 8

6KW Rack Mounted Load Bank for data center

6kW rack mounted load bank application includes IST commissioning in the data center & data room. Testing both the electrical network (UPS, Diesel generator, etc.) & air conditioning (free cooling, etc.), the rack-mounted load bank is simulating the exact electrical & air conditioning impact of servers in the rack cabinet.

Applications:

Data centers/Generators/Power systems/New energy sources/Laboratory testing.

Warranty time:

3 years

Delivery time:

4 weeks

ISO Certification:

ISO9001/ISO14001

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

PRODUCT INTRODUCTION

6kW Rack Mounted Load bank

6kW rack mounted load bank generally used for data center. Following functions can be supplied include MCB control,single power source,high temperature alarm,air volume adjustable,air volume display,digital meter for voltage/current/power dispaly and others function.

Product Specifications

Model No.	RTLBO6-RM
Country of origin	China
Max capacity	6kW
Rated testing voltage	Single phase, 230Vac
Frequency	50Hz-60Hz.
Load step	1kw+1kw+1kw+1kw+1kw+lkw(or customizable)
Resistors type	Finned resistor
Voltage tolerance (Short Term Operation)	+5%
Load element Tolerance	+5%
Insulation test voltage	500Vac
Load Connections	C20 plug *3
Protection	Thermal emergency cut out.
Control voltage	230v
Cooling method	Air forced cooling
Fans Nos.	4pcs
Airflow volume(Approx.CM/M)	410CFM*4, total air volume 1640CFM
Airflow direction	Horizontal
Operation Temperature	0-75°C
Storage Temperature	0-85°C
IN-OUT Air temperature range	Maximum 40℃ (customer actual testing Delta T 10C)
Altitude rating	<2000m [m.a.s.1.]
Cabinet material	steel
Control chamber IP rating	IP 23
Portability	3 carrying handles
Sample order	Available, shipping cost negotiable
Enclosure color	Customizable
Enclosure dimentions
Width*Depth	483mm*550mm (19inch rack)
Height	8U
Estimated Weight(KG)	35kg
Load bank control system
Manual control	Schneider Circuit breaker
Accessories
Cables (optional)
Quality warranty
3 years start from receiving the goods at custome!
Technical support
7x24 hours service (subject to time zone difference）
Online meeting available any time.
Documents providing
Factory report.
Operation and maintenance instructions printed and shipping with goods together.
Electrical schematic diagram and structure diagrams after deposit.

FAQ

Can this RTLB06-RM rack load bank be installed in a standard 19-inch data center rack?

Fully compatible. The device measures 483mm wide x 550mm deep, conforming to 19-inch rack specifications, and is 8U high, allowing direct integration into a standard data center rack.

Can the load bank's load stepping accurately simulate the operating conditions of servers with different power ratings during data center testing?

Yes. The standard configuration includes six 1kW tiered loads, with customization supported. Load component tolerances are ±5%, accurately matching the power simulation needs of various servers from low power consumption to full load.

Does the device's cooling method meet the airflow organization requirements of data center racks?

Yes. It adopts a forced-air cooling design with horizontal airflow and a total airflow of 1640 CFM, compatible with the horizontal ventilation architecture of data center racks, avoiding disruption to the overall airflow balance of the server room.

Can the device operate stably when the temperature in the data center fluctuates significantly?

t can operate stably. The equipment operates within a temperature range of 0-75°C, far exceeding the typical data center server room temperature (usually 18-27°C), and features thermal emergency shutdown and over-temperature alarm protection, making it suitable for server room temperature fluctuation scenarios.

Can this load bank meet the needs of 24-hour continuous testing in a data center?

Yes. The equipment uses finned resistors and a reliable forced air cooling system, coupled with manual control via Schneider circuit breakers, enabling long-term continuous operation and making it suitable for data center infrastructure stability testing scenarios.

Data centers have high requirements for equipment insulation and safety protection. Does this product meet these standards?

Yes. The equipment has an insulation test voltage of 500Vac, an IP23 protection rating for the control chamber, and is equipped with thermal emergency shutdown protection, complying with data center electrical safety specifications and ensuring safety during testing.

Will the temperature difference between the load bank's intake and exhaust air affect the evaluation of the data center air conditioning system during testing?

No, it will not affect it and can even aid in accurate evaluation. The maximum temperature difference between the equipment's inlet and outlet air is 40℃, while the actual temperature difference tested by the customer is approximately 10℃, closely mimicking the real-world heat dissipation characteristics of servers and aiding in the verification of air conditioning system cooling effectiveness.

Can the load bank be flexibly adjusted for testing configurations during data center expansion or renovation?

Yes, it is flexible. The load stepping supports customization and is equipped with three C20 connectors. The load combination can be adjusted according to the power requirements of the expanded server cluster to adapt to different testing scenarios.

Can timely technical support be obtained for data center testing that requires nighttime or cross-time zone collaboration?

Yes. 24/7 technical support is provided (subject to time zone differences). Online meetings can be arranged at any time to quickly respond to technical needs for nighttime testing or cross-regional collaboration in the data center.

Does the equipment support parallel testing of multiple units in a data center to simulate large-scale server cluster loads?

Yes, it supports parallel use of multiple units. Each unit has a capacity of 6kW. Connected via C20 connectors, multiple units can be combined to expand the load capacity according to the total power requirements of the data center server cluster, meeting the needs of large-scale load simulation testing.

7KW Rack Mounted Load bank Data sheet

Product name	7kW rack mounted load bank
Rated voltage	AC230V,1 phase 2 wire
Maximum load power	500W
Load grading	500W,500W,2kW,2kW,2kW
Load accuracy (per gear)	±2%
Connection mode	Three input,independent control power input
Insulation class	F
IP rating	IP23
Working mode	Continuous work
Cooling mode	Forced air cooling
Control mode	MCB control
Protection function	High temperature
Color	Customized
Ambient temperature	-20℃ to 50℃
Humidity	Up to 100%
Altitude	Up to 2500m
Atmospheric pressure	86 to 106kPa
