1000kW Load Bank Manufacturer in China
1000kW load bank is one of the load banks with the largest demand at home and abroad. It can accurately test the output power and load carrying capacity of various generator sets, mainly test all electrical parameters of generator sets, and provide scientific detection means for high-power generator set equipment.
Many customers are satisfied with the high quality of this product.
PRODUCT OVERVIEW
1000kW load bank is one of the load banks with the largest demand at home and abroad. It can accurately test the output power and load carrying capacity of various generator sets, mainly test all electrical parameters of generator sets, and provide scientific detection means for high-power generator set equipment. 1000kW load bank is a pure resistive load, and the power consumption components are wound with special alloy resistors, Stainless steel coating, small temperature drift and long service life. The total power of a single machine is up to 1000kW. The external chassis adopts fixed container structure and adopts optimized segmented power input mode. The corresponding power setting switch can be pulled according to the detection requirements of performance parameters. It can be combined and set arbitrarily within 1kW-1000kW. The step value is 1kW, which is convenient to set.

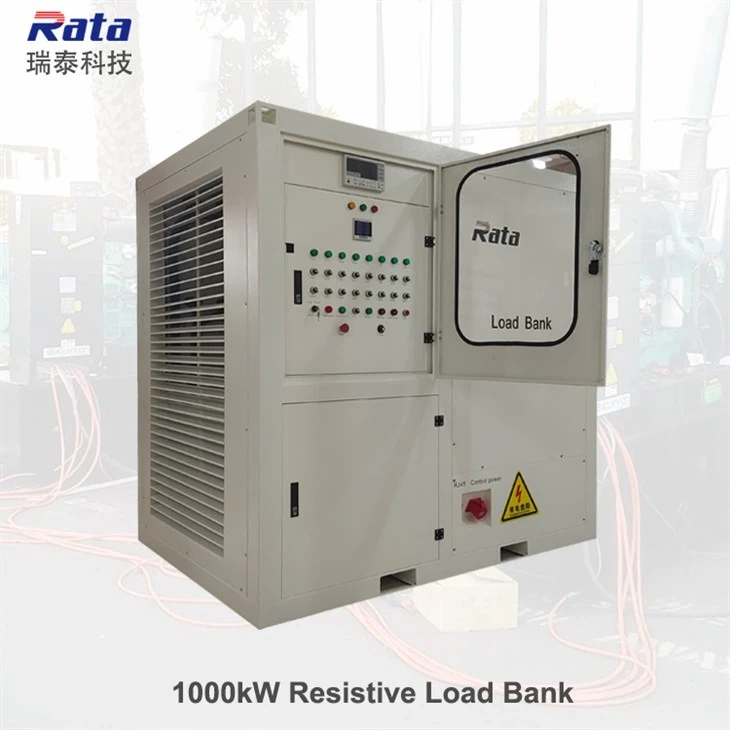

PRODUCT PICTURE
APPLICATION SCENARIO
PARTIAL PARAMETERS
|
Product name |
1000kW load bank |
|
Specifications |
R1000kW/400V/50Hz |
|
Rated voltage |
400VAC,power cables connected with copper bar |
|
Control voltage |
380VAC,power cables connected with terminal/quick connector |
|
Load connection |
Copper bar |
|
Resistor |
8020 Ni-Cr alloy finned resistors |
|
Load control |
Local manual control, local automatic control or remote automatic control can be selected |
|
Loading accuracy |
Less than or equal to 3% |
|
Three phase balance |
Unbalance degree less than or equal to 3% |
|
Minimum step |
1kW resolution,1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×9 |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
TN-C,380V/50Hz |
|
Cooling mode |
Forced air cooling, side air outlet or top air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple load containers |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
Its quality is examined under the supervision of our skilled quality experts.
Data Sheet
|
Product name |
1000kW load bank |
|
Specifications |
R1000kW/400V/50Hz |
|
Rated voltage |
400VAC,power cables connected with copper bar |
|
Control voltage |
380VAC,power cables connected with terminal/quick connector |
|
Load connection |
Copper bar |
|
Resistor |
8020 Ni-Cr alloy finned resistors |
|
Load control |
Local manual control, local automatic control or remote automatic control can be selected |
|
Loading accuracy |
Less than or equal to 3% |
|
Three phase balance |
Unbalance degree less than or equal to 3% |
|
Minimum step |
1kW resolution,1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×9 |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
TN-C,380V/50Hz |
|
Cooling mode |
Forced air cooling, side air outlet or top air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple load containers |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
