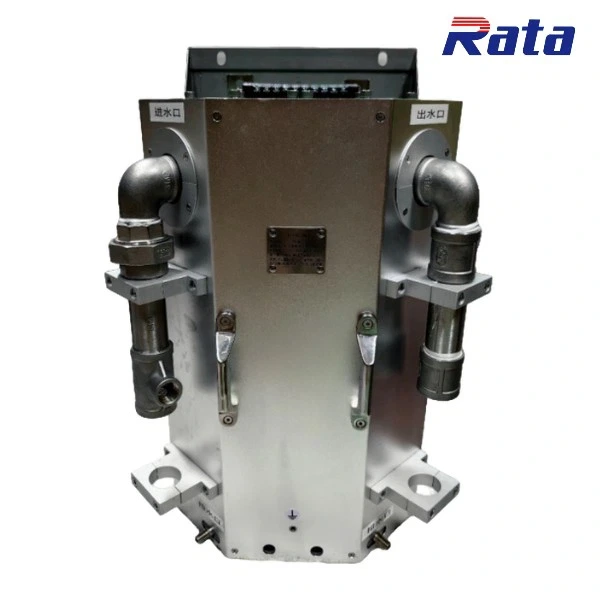

Liquid Cooled AC 100KW Load Bank
Liquid cooled load bank 100kW is mainly used in data center UPS test mainly. It comes with 5kW per step. With 35 celcius degree maaxium temperature at long term operation
will continue to provide clients with more perfect Rata services.
Why Liquid-Cooled Load Banks for Data Centers?
Efficient Thermal Management:
Data centers often have limited space, and liquid-cooled load banks offer a compact solution due to their superior heat dissipation capabilities.
They can handle high-power densities without excessive heat buildup, making them ideal for modern high-capacity systems.
Precision Testing:
Liquid-cooled load banks can simulate the actual operational loads of a data center, including resistive, reactive, or combined load profiles, ensuring precise testing of backup power systems.
Reduced Noise and Heat:
Unlike air-cooled systems, liquid-cooled load banks operate with minimal noise and do not contribute to additional heat in the testing environment, maintaining the integrity of the data center's cooling infrastructure.
Environmentally Controlled Operations:
Data centers rely on precise temperature control. Liquid cooling ensures the heat generated during testing is efficiently transported away, without disrupting the internal environment.
How the load bank manufacturered ?
We are a specialist in producing Rata .
|
Description |
|
|
Model No. |
LC100 |
|
Country of origin |
China |
|
Max capacity |
100kW |
|
Rated testing voltage |
400Vac/480V |
|
Frequency |
60Hz. |
|
Phases |
3 |
|
Wires(Star connection) |
4 |
|
Load step resolution |
1kW |
|
Load step (kW) |
1 +2+2+5 +10+10+20+50 |
|
Voltage Tolerance (Short Term Operation) |
+5% |
|
Load Element Tolerance |
± 3% |
|
Insulation Test |
500Vac |
|
Load Connections |
Quick connectors(200A) |
|
Protection |
Thermal emergency cut out |
|
Air flow switch |
|
|
Fan overload protection |
|
|
Emergency stop |
|
|
Control voltage |
Optional 110v/ 220v/230v |
|
Cooling method |
Liquid cooling |
|
Waterflow volume(Approx. ) |
5L/Min. |
|
Load switching contactor type |
3 pole AC contactors |
|
Rated maximum ambient temp. operation |
+50°C / +104°F |
|
Rated minimum ambient temp. operation |
-20°C / -4°F |
|
Altitude rating |
<2000m [m.a.s.l.] |
|
Ccontrol chamber IP rating |
IP 54 |
|
Portabality |
2 folklift holes |
|
Enclosure dimentions |
|
|
Width(mm) |
580 |
|
Depth(mm) |
600 |
|
Height(mm) |
1500 |
|
Weight(KG) |
220 |
Why Choose Our Load Bank?
Global Recognition: As a Schneider Electric authorized factory, Deyang Rata Technology Co., Ltd. is trusted by clients in over 80 countries.
Expertise in Industrial Control: With extensive experience in the industrial control sector, our products are designed to deliver top-tier performance.
Customized Solutions: We understand that every project is unique. Our team offers tailored solutions to meet specific testing requirements.
