Load Bank for Grid Islanding Test
The load bank can achieve the following functions in grid islanding testing, including simulating load, stability testing, power balance verification, overload and underload testing, long-term operation simulation, performance optimization basis, etc.
Our quality management system provides strong quality guarantee for the product.
Grid Island Test
Grid islanding testing is an important testing method, which mainly includes the following aspects:
In the islanding test of the power grid, a part of the grid will be artificially isolated from the main grid, forming a relatively independent "island" area.
Its purposes include:
1) Testing the performance of distributed power sources: such as new energy generation systems, testing their power supply stability, power regulation ability, voltage and frequency control ability under independent operating conditions to ensure reliable power supply in the event of power grid failures and other situations.
2) Verify protection mechanism: Check whether the protection devices inside the island can accurately operate, such as overvoltage, undervoltage, over-frequency, underfrequency protection, etc., to ensure the safety of equipment and systems.
3) Evaluate system stability: Understand the transient and steady-state performance of the entire power system during islanding operation, including voltage fluctuations, power balance, and other aspects.
4) Research control strategies: Provide data support and validation for optimizing power generation control, load management, and other strategies within the island.
5) Enhancing emergency capabilities: By simulating isolated island states, enhance the ability to operate and respond to special situations in the power system.
When conducting grid islanding tests, it is necessary to strictly follow regulations and safety standards to avoid harm to equipment and personnel.
Load Bank Application for Grid island test
The load bank has the following applications in grid islanding testing:
1) Simulated load: In an isolated state, the load bank can simulate various sizes and types of loads to truly reflect the actual operating load situation and help evaluate the adaptability of distributed power sources to different loads.
2) Stability testing: By loading different loads, observe the stability of parameters such as voltage and frequency of the system in islanding mode, to ensure that the system can maintain stable operation during load changes.
3) Power balance verification: Assist in verifying the balance relationship between the output power of the power supply in the island and the power consumption of the load, ensuring the reliable operation of the system.
4) Overload and underload testing: deliberately apply overload or underload conditions to test the performance of the system and the effectiveness of the protection mechanism under these extreme load conditions.
5) Long term operation simulation: Connect the load bank for a long time for loaded operation, simulate the long-term operation situation in an isolated state, to examine the durability and reliability of the system.
6) Performance optimization basis: Based on the data obtained during the load bank testing process, important basis is provided for optimizing the operation strategy and control algorithm of the isolated system.
Recommanded Products

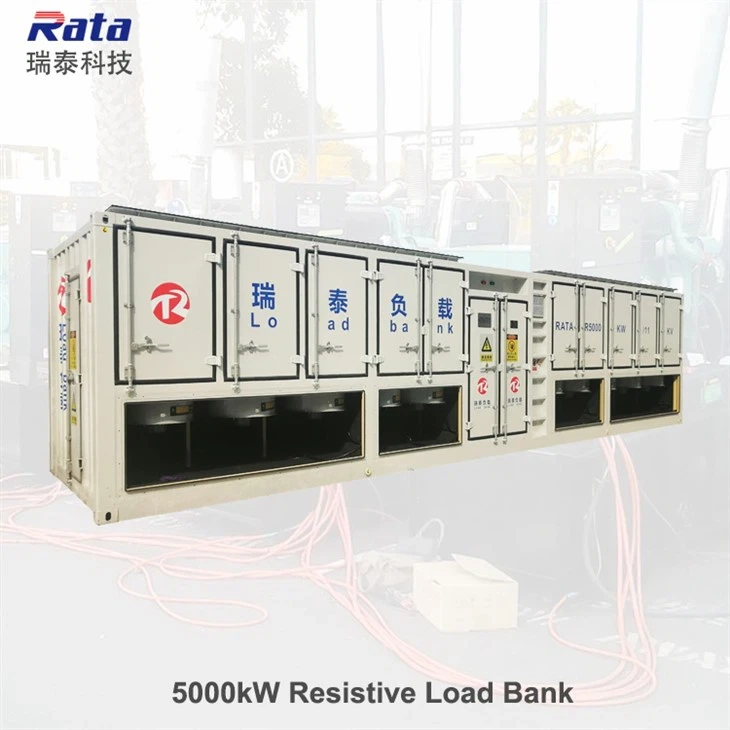

Resistive Load Bank
Resistive load bank can provide stable resistive loads and simulate relatively simple conventional load situations.
Resistive Inductive Load Bank
Resistive inductive load banks combines the characteristics of resistance and reactance loads, and can comprehensively simulate various load types, reflecting the actual load situation comprehensively.
