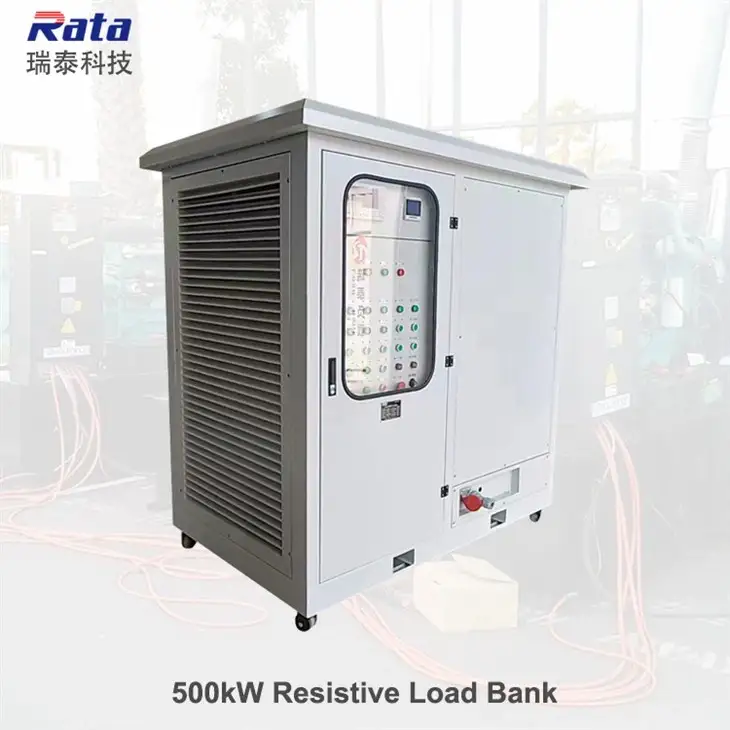

AC Resistive Dummy Load Bank
500kW AC resistive dummy load bank is a device generally used for generator load test.Outdoor design,local panel switching control and remote PC control mode,support load data save and printing.
This product finds its wide application in the industry.
Products Description
500kW AC resistive dummy load bank is a device generally used for generator load test.Outdoor design,local panel switching control and remote PC control mode,support load data save and printing. 0~10kW variable adjustable. Local/remote switch for local and remote control mode choose.
main Data Sheet
| Rated power capacity | 500kW,resistive only |
| Rated voltage | 415VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal |
| Control mode | Local panel switching control + remote PC control,support load data save and printing |
| Design | Outdoor design,IP54 |
| Load steps |
0~10kW variable adjustable,10kW,10kW,20kW,50kW,100kW×4 |
| Resistor | 8020 Ni-Cr alloy finned resistor |
| Cooling | Forced air cooling,horizontal air discharge |
| Protection | High temperature,low air volume,short circuit,over current,phase sequence,emergency stop |
| Size | 1805×1560×1600mm |
| Weight | 950kg |
Packing & Delivery
Company Introduction
Rata has 11 years load bank design and production experience and professional technical team and skilled workers. Our load bank have been exported to South Korea,India,Kazakhstan,Saudi Arabia,France,Rwanda,New Zealand,Peru,Brazil,America and other regions and have good reputation,21 countries in total.
The product is in high demand at home and abroad thanks to its considerable economic benefits.
Data Sheet
|
Product name |
500kW resistive load bank; |
| Model number | RT500kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
0~10kW variable adjustable,10kW,10kW,20kW,50kW,100kW×4 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1805×1560×1600mm |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
