800kW Three Phase Resistive Load Bank
800kW 3 phase resistive load bank designed as indoor and outdoor application with local switching control and remote PC control mode by Rata supplied operation software.
It is developed as we closely track international advanced technology and development trends.
800kW Three Phase Resistive Load Bank
Products Description

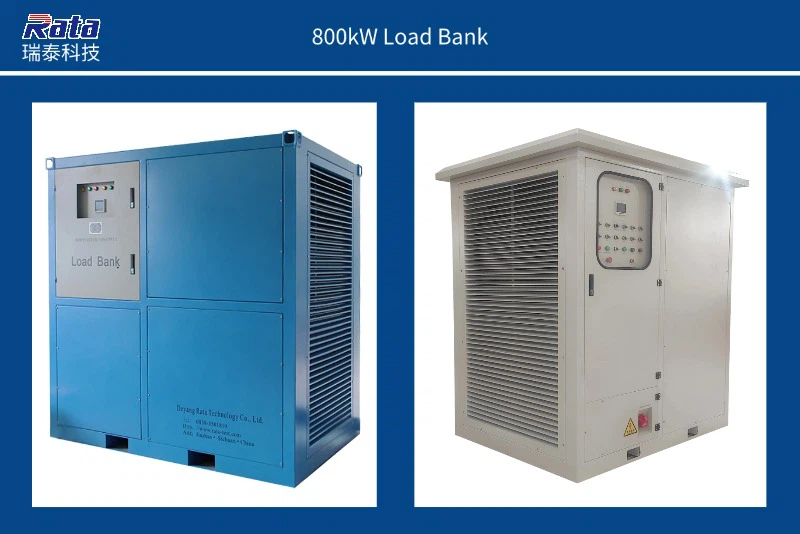

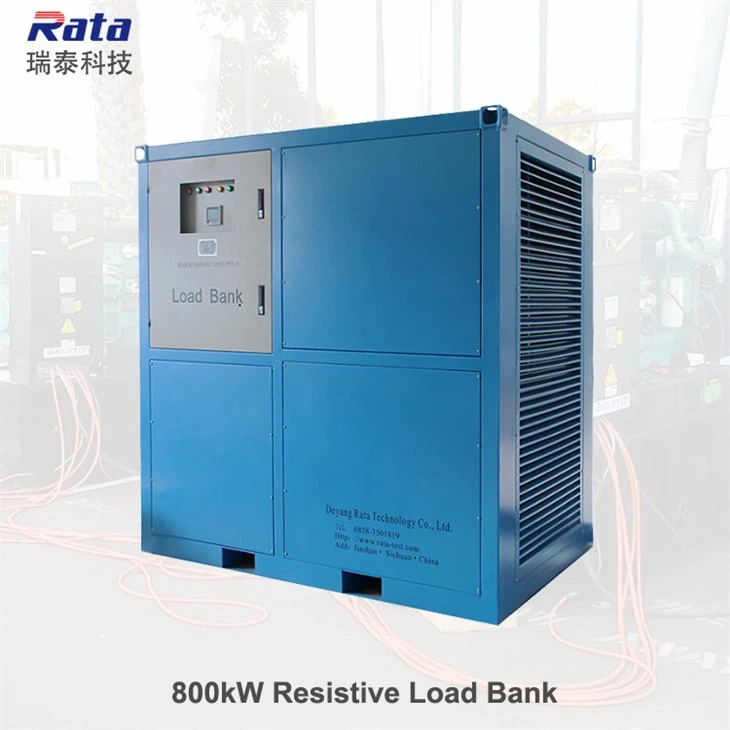

800kW 3 phase resistive load bank is generally used for generator/UPS load testing. The load bank can be designed as indoor and outdoor application with horizontal air discharge. The local panel switching control mode and remote PC control mode supplied for clients' choice,remote PC control support load data save and printing. Forklift holes designed for load bank movement.
Pictures
Data Sheet
|
Product name |
800kW resistive load bank; |
| Model number | RT800KWLB; |

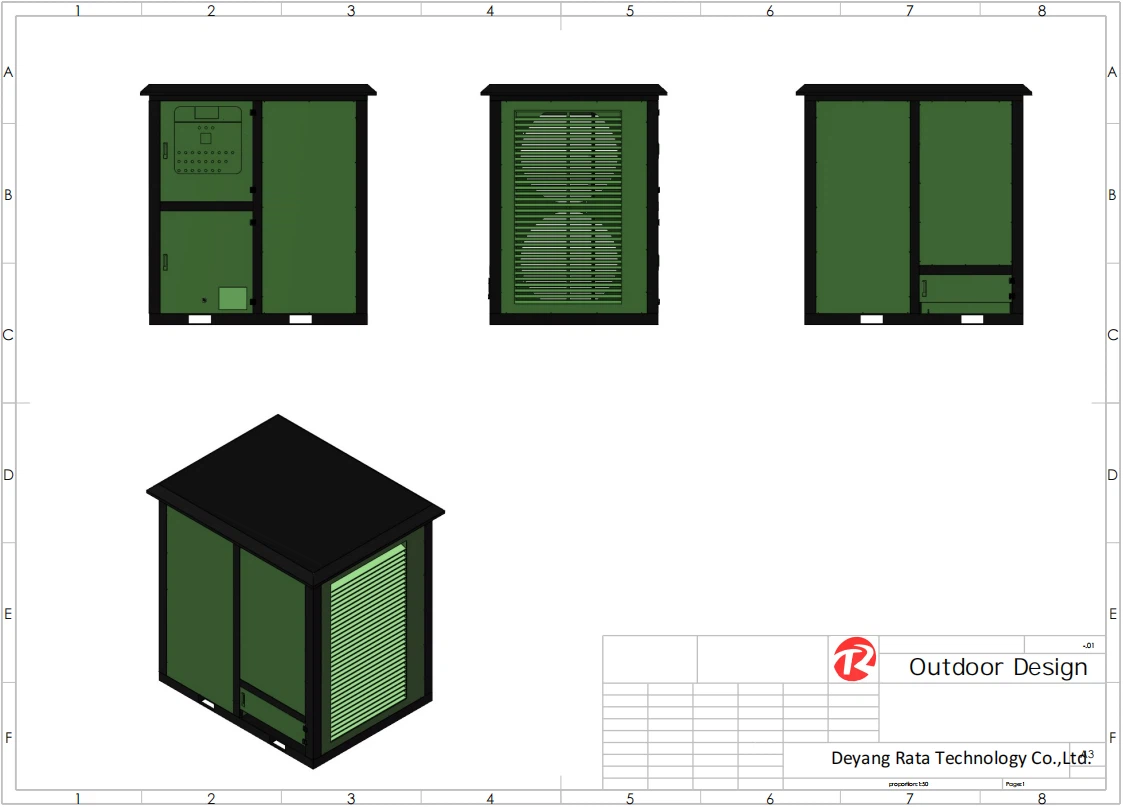

| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×7; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes |
|
Color |
RAL 7035(industrial grey) or customized color |
| Dimensions | 1800mm*1250mm*1750mm (L*W*H) |
| Weight | 1150Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
Load Bank Application
1) Generator set testing: used to test the output power, voltage, frequency stability, overload capacity and other performance indicators of the generator set, to ensure that it can operate normally under different load conditions.
2) UPS power supply detection: check the load capacity, conversion time, output characteristics, etc. of the uninterruptible power supply (UPS) to ensure reliable power supply in the event of power outages.
3) Power system debugging: during the installation, debugging, and maintenance process of the power system, simulate different load conditions to help identify and solve potential problems.
4) Verification of new energy power generation systems: conduct performance evaluation and verification of new energy power generation systems such as solar and wind energy.
5) Ship power station testing: ensure the reliable operation and performance of the ship power station system meet the requirements.
6) Research and experimentation: provide accurate and adjustable resistive loads in related electrical research and experimentation.
Certificates
Rata obtained ISO9001:2015/ISO14001:2015/ISO45001:2018 and CE certificates.
It has reliable quality and stable performance.
