High Quality Resistive Load Bank Manufacturer Company
Product Overview

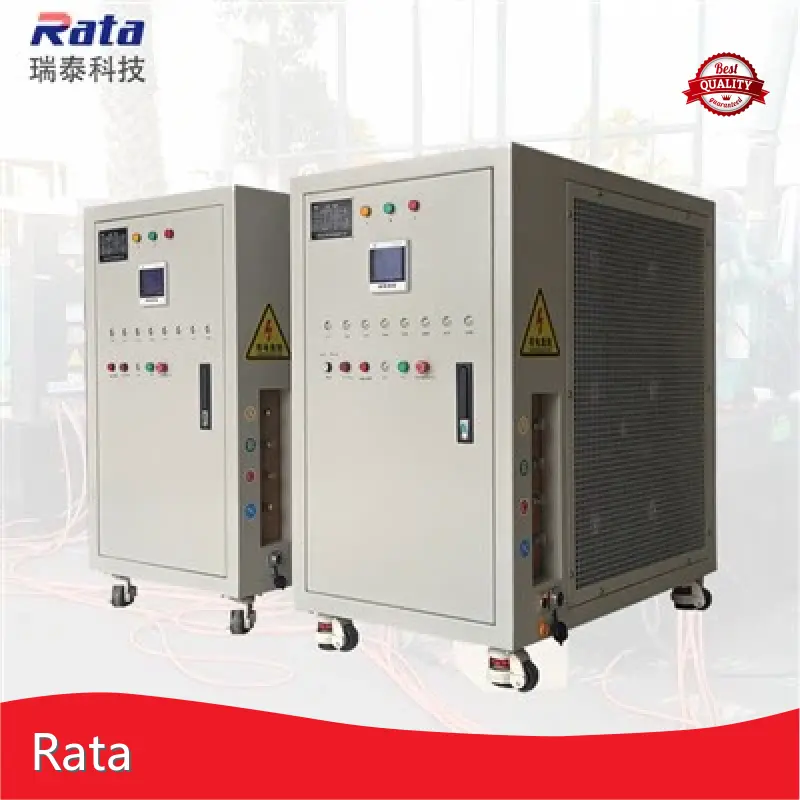

- Rata 100kW resistive load bank designed for indoor use with local panel switching control and remote PC control
- Rated power capacity of R100kW with various voltage options available
- Features forced air cooling with Ni-Cr alloy finned resistor
- Packed in wooden case and pallet for delivery from Shanghai port
Product Features
- Control mode includes local panel switching control and remote PC control with various protections such as short circuit and overcurrent
- Load steps ranging from 1kW to 50kW
- Resistor made of 8020 Ni-Cr alloy for efficient cooling
- Compact size of 700mm*500mm*960mm(L*W*H) and weight of 105kg
Product Value
- ISO9001:2012 certified quality management system and national high-tech enterprise
- 18 utility model patent certificates and 8 computer software copyright registration certificates
- Offers perfect system solutions for ship shore power, data center, new energy, and grid adaptability experiments
Product Advantages
- Manufactured with fine materials under expert supervision
- Tested at various stages of development for quality assurance
- Consistent research and development for upgrades and customer satisfaction
Application Scenarios
- Used in large shipyards, power plants, generator on load test operation, transformer test, UPS power supply test, and storage battery discharge point tests
- Exported to various countries and regions with a good reputation for reliability and reasonable pricing
- Suitable for multiple industries and fields for one-stop complete solutions from the customer's perspective.
Data Sheet
|
100kW Resistive Load Bank Data Sheet |
|
|
Product name |
100kW resistive load bank; |
| Model number | RT100kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
Customized voltages are available; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 700mm*500mm*960mm (L*W*H) |
| Weight | 105Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
