Indoor Load Bank Rata Load Bank Wholesale - Rata-1
Product Overview
1) Product overview
Product Features

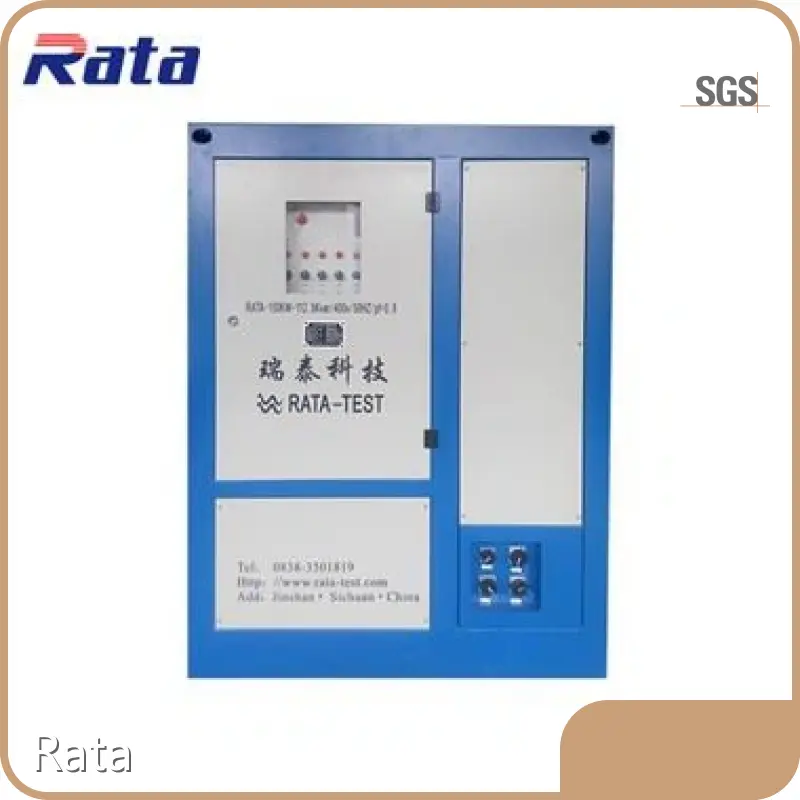

- Rata Indoor Load Bank (example model: 150 kW, 400 V, 50 Hz) is a resistive dry load bank system designed to accurately test and exercise AC power equipment (UPS, diesel generators, AC voltage regulators, inverters, switching power supplies and batteries).
Product Value
- It records full-test data, generates automatic test reports via bundled analysis software, and supports parallel expansion for higher power requirements.
Product Advantages
- Units are transportable (lifting holes and rollers) and are available in multiple power and voltage configurations to suit industrial, telecom and shipboard needs.
Application Scenarios
2) Product features
- Precise measurements and monitoring: three-phase voltage, current, frequency, power and temperature with high measurement accuracy and display accuracy.
- Control and data: backlit LCD, Chinese GUI, USB/RS232/RS485 communications, built-in memory, PC connectivity, export to Excel and automatic report generation.
- Test control: constant-power discharge, settable discharge termination voltage/time, minimum step 1 kW, loading accuracy ≤3%, three-phase unbalance ≤3%.
- Protections and reliability: fan-fault, overvoltage, overcurrent, leakage, short-circuit and over-temperature protection; power-down data-save and voltage/current calibration functions.
- Construction and cooling: UL‑compliant electric heating elements, forced-air cooling (side or top outlet), insulated resistors rated for high withstand voltage; customizable cabinet, color and transport features.
3) Product value
- Ensures reliable commissioning and maintenance of critical power systems by accurately verifying output power and load capacity, thus reducing risk of failure and downtime.
- Provides authoritative, auditable test records and reports to support regulatory compliance and equipment management archives.
- Enables efficient preventive maintenance (periodic UPS and generator loading tests), post-repair validation and acceptance testing for new installations.
- Flexible, expandable design saves capital by allowing staged growth of load capacity and integration into existing test workflows.
4) Product advantages
- Advanced, field-proven technology with international certifications and compliance to telecom/ship/military standards.
- Strong R&D and intellectual property backing (ISO9001, national high‑tech enterprise, multiple patents and software copyrights).
- High accuracy, robust protection features and comprehensive data handling (onboard storage + PC software) for professional test reporting.
- Customizable specifications (power, voltage, frequency, size) and modular parallel expansion for diverse customer needs.
- User-friendly operation, mobility for site work, and options for local/remote/automatic control.
5) Application scenarios
- Acceptance testing and commissioning of new UPS systems and batteries; annual or routine UPS maintenance and discharge tests.
- Load testing and verification of diesel generator output after installation, muffler/noise reduction fitting, repair or regular maintenance cycles.
- Testing of AC power equipment such as voltage regulators, inverters and switching power supplies.
- Use in data centers, telecom base stations, shipyards, power plants and other critical facilities requiring reliable power-system validation and record-keeping.
