1) Product overview
Product Features

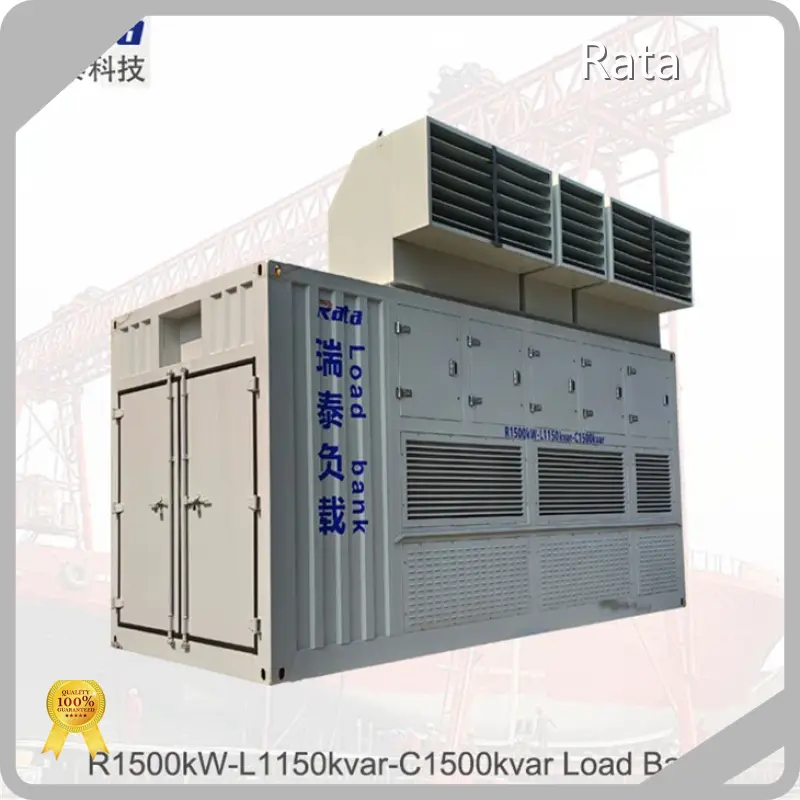

- The Rata RLC Load Bank (example model R1500kW/L1150kvar/C1500kvar) is a containerized, outdoor-rated (IP54) electrical load testing system independently designed and manufactured by Deyang Rata Technology Co., Ltd.
Product Value
- It combines dry resistive modules with automatic measurement and control to test generator output, load capacity and electrical parameters (static and dynamic).
Product Advantages
2) Product features
Application Scenarios
- High-capacity RLC configuration: 1500 kW resistive, 1150 kVAr inductive, 1500 kVAr capacitive (capacitor may be supplied by client).
- Control: local panel plus remote PC control with data save and print functions.
- Construction: container type, Ni-Cr finned resistors, 3‑phase inductors, forced air cooling (horizontal intake, vertical outlet with duct).
- Electrical specs: 400 VAC, 3-phase 4-wire, 50 Hz; control supply 380 VAC; designed power factor 0.8.
- Portable/robust: size 4500 × 2438 × 2900 mm, weight ~16,000 kg.
3) Product value
- Provides comprehensive, repeatable generator and power-system testing (including setting tests, fluctuation, sudden loading/unloading, waveform recording and harmonic analysis).
- Produces standardized Chinese/English test reports and curves for documentation, acceptance and compliance.
- Remote data logging and printing reduce manual work and improve test traceability and decision-making.
4) Product advantages
- Independently developed, field-proven design with emphasis on durability and real-world outdoor use (IP54 enclosure, rugged components).
- Flexible control options (local and PC-based remote control) and intelligent automation for complete test sequences.
- High-power capacity suitable for large gensets and industrial installations; modular RLC approach supports comprehensive electrical analysis.
- Manufacturer support: customized services, after-sales response and experienced technical team offering one-stop solutions.
5) Application scenarios
- Commissioning, acceptance and performance testing of diesel/gas generator sets for utilities and prime/standby power systems.
- Routine maintenance and load bank testing for data centers, hospitals, industrial plants, mining and construction sites.
- Harmonic and power-factor testing, transient and stability testing for electrical contractors and OEM generator manufacturers.
- Field/outsourced testing where outdoor, containerized equipment and remote-controlled data logging are required.
