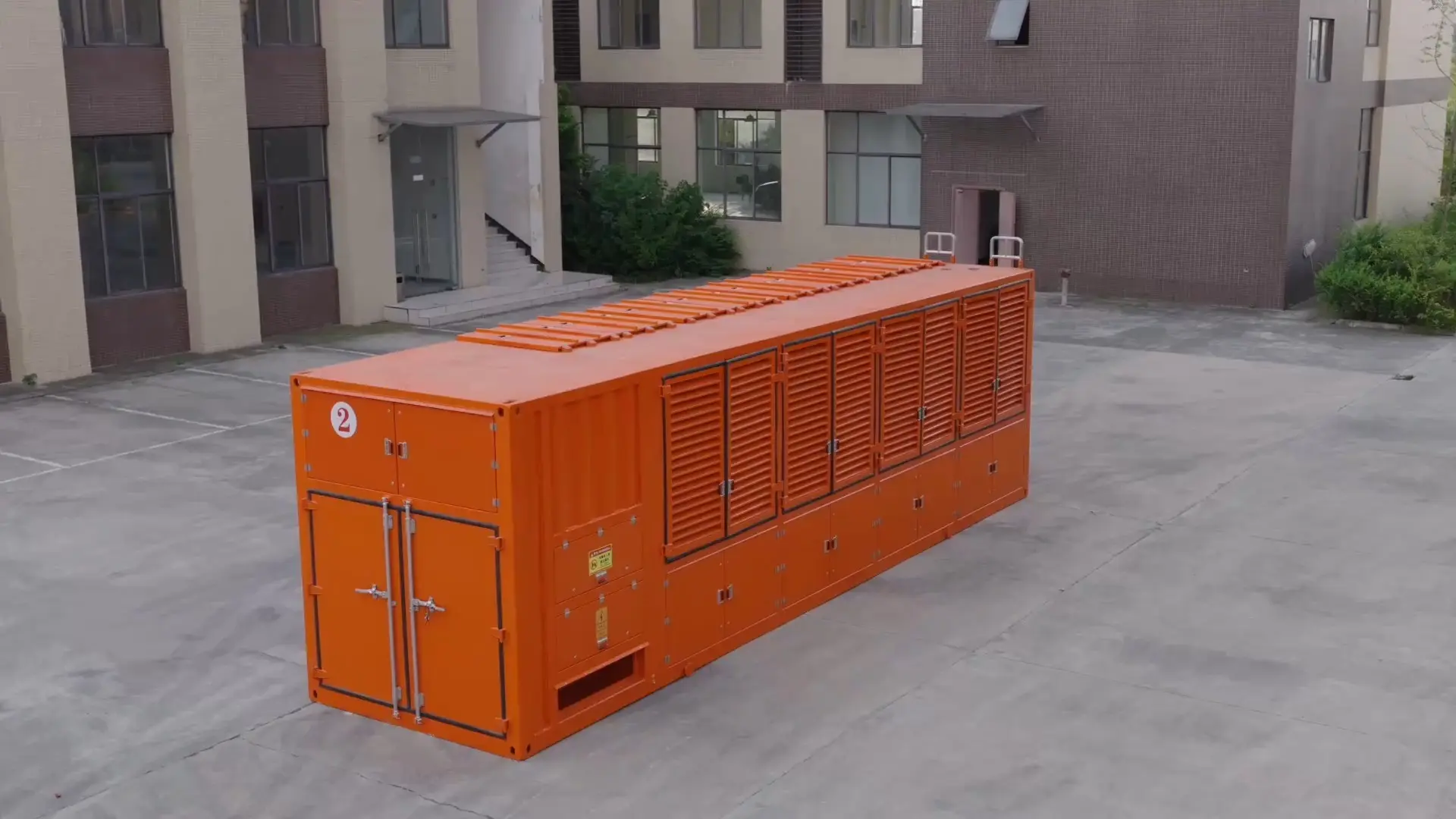

3500kW RLC Load Bank

The complete machine can be operated simply and maintained conveniently, which adopts a module design. It offers customizable voltage and current testing capabilities tailored to client requirements, delivering scientific testing protocols for high-power AC equipment.

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

Product Introduction

Rata's 3500kW RLC Load Bank features multi-dimensional protections and intelligent indications: automatic unloading & alarming for low air volume/high temperature, fan interlock, short-circuit/overcurrent prevention, emergency stop, phase sequence transfer protection, and dual indicators for operational & fan status, ensuring equipment safety and reliability..

The complete machine can be operated simply and maintain convenient that adopts module design. It offers customizable voltage and current testing capabilities tailored to client requirements, delivering scientific testing protocols for high-power AC equipment.

Enclosure drawings (mm)

Product Function

The complete machine can be operated simply and maintain convenient that adopts module design.

Low air volume

When the air volume of any fan is insufficient, it will automatically unload and alarm.

High temperature

Automatically unload and alarm when the load temperature exceeds the safety threshold.

Fan interlock protection

The load cannot be loaded before the fan power switch is turned on.

Short circuit/over current

The load circuit is equipped with a fuse to avoid damage to the equipment in case of load short circuit or excessive current.

Emergency stop

Manual one button forced unloading is available, and it cannot be loaded under emergency stop locking status.

Load switch

The control device is to switch on or off the load, and jog the switch to switch on the selected load.

Fan phase sequence automatic transfer protection

When the control power line is not connected according to the correct phase sequence, the three-phase fan can also operate in the normal direction.

Operational indicator

Indicates whether the device can be put into load, and the indicator light on indicates that the device is in normal state and can be put into load.

Fan operation indicator

Indicates whether the fan of the device is running, and the corresponding indicator light for fan startup is on.

Product Specifications

Model No.: RLC3500KWLB
Load type	Resistive&Inductive&Capacitive
Tested power	AC400V,3 phase
Frequency	50Hz/60Hz
Capacity	3500kW,2551KVAR,1332.8KVAR
Power factor	Lead 0.95 PF, Lag 0.8 PF
Load accuracy	±3%
3Phase balance	Unbalance: ≤3%
Insulation	F
Power source connection	Camlock
Design	■ Indoor: Reference Pictures-Indoor Design ■ Outdoor: Reference Pictures-Outdoor Design
Time rating	Continuous design/temporary
Step	（1KW +2KW2 + 5KW + 10KW2 + 20KW + 50KW+65KW +115KW2+230KW6）*2
Reactor	Min.step: 1kvar. A Line@400V-50HZ-1100kVAR,Steps: 1kvar 2kvar2 5kvar 10kvar2 20kvar 50kvar 204kvar6 B Line@400V-50HZ-1100kVAR,Steps: 204kvar6
Cooling system	Cooling mode：Forced air cooling，horizontal air inlet/outlet
Transportation	4 Lifting holes at the top four corners of the load bank.
Dimension (LWH)	9800mm2438mm2900mm
Weight	23T
Main parts	■ Contactor: ABB/Schneider brand ■ Circuit breaker: ABB/Schneider brand ■ PLC: Siemens ■ Fuse: Delixi ■ LCD display: Qingzhi ■ Generator tester: Qingzhi
Work Environment
Temperature	-20℃ to 50℃
Humidity	up to 100%
Altitude	up to 2500m
Atmospheric pressure	86 to 106kPa
Others
Certificates	CE/ISO9001:2015/SGS
Factory test	We will do it and make report.
Spare parts	Standard configuration
After sales service	■ Spare parts freely during the quality assurance time ■ Spare part will be cost price after quality assurance time ■ 7×24 hours service,maybe there is some delay caused by the time difference for different regions.

Product Cabinet

Load bank cabinet

■ Color: RAL7035,or made by customer supplied color number.
■ Material: Q235 cold rolled steel plate.
■ Painting: The exterior is sprayed with special paint for ships, which is resistant to salt spray, acid and alkali, and seawater erosion. The interior is sprayed with high-temperature resistant paint, and the internal support is hot-dip galvanized.
■ Layout design: the layout is symmetrical, and the control room is at the front of the container. The load is located on both sides of the container. Convenient for later cleaning and maintenance.

Container type standards

■ GB/T 1413-1998 - Series 1 Container Classification, Dimensions and Rated Mass
■ GB/T 15846-2006 - Container Door Frame Sealing Strip
■ GB/T 1835-2006 - Series 1 Container Corner Pieces
■ GB/T 18982-2003 - Corrosion-resistant Steel Plates and Strips for Containers
■ GB/T 19536-2004 - Plywood for Container Floor
■ GB/T 19920-2005- Marine Container Supports
■ GB/T 5338-2002 Series 1 Containers - Technical Requirements and Test Methods - Part 1: General Purpose Containers
